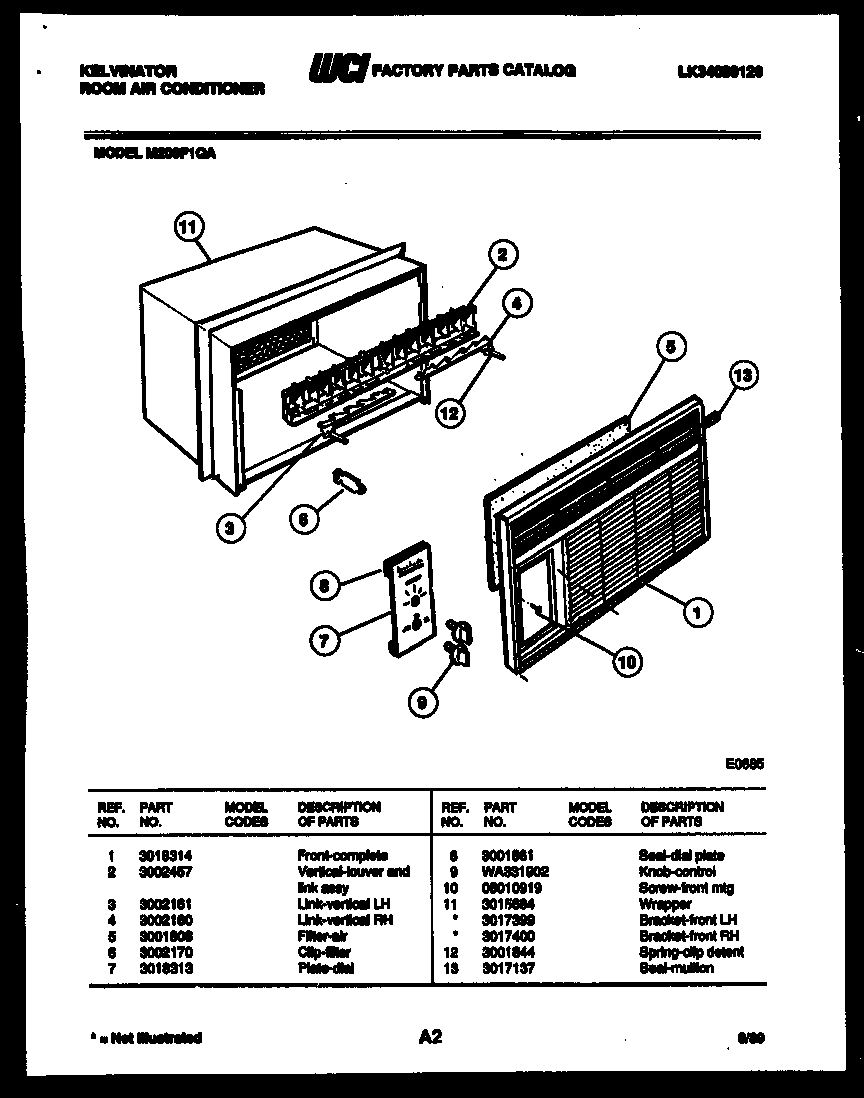

M206F1QA 02 – CABINET PARTS

Written by

Products

Position	Product
1	WCI 3018314
2	VERTICAL LOUVER & LINK ASSY
3	LINK-VERT LOUVER LH
4	LINK-VERT LOUVER RH
5	WCI 3001808
6	WCI 3002170
7	PLATE-DIAL
8	WCI 3001861
9	WCI WA331902
10	SCREW FRONT PANEL (NON-ILLUSTRATED)
11B	WCI 3017400
11A	WCI 3017399
11	WRAPPER
12	CLIP-DETENT
13	WCI 3017137
