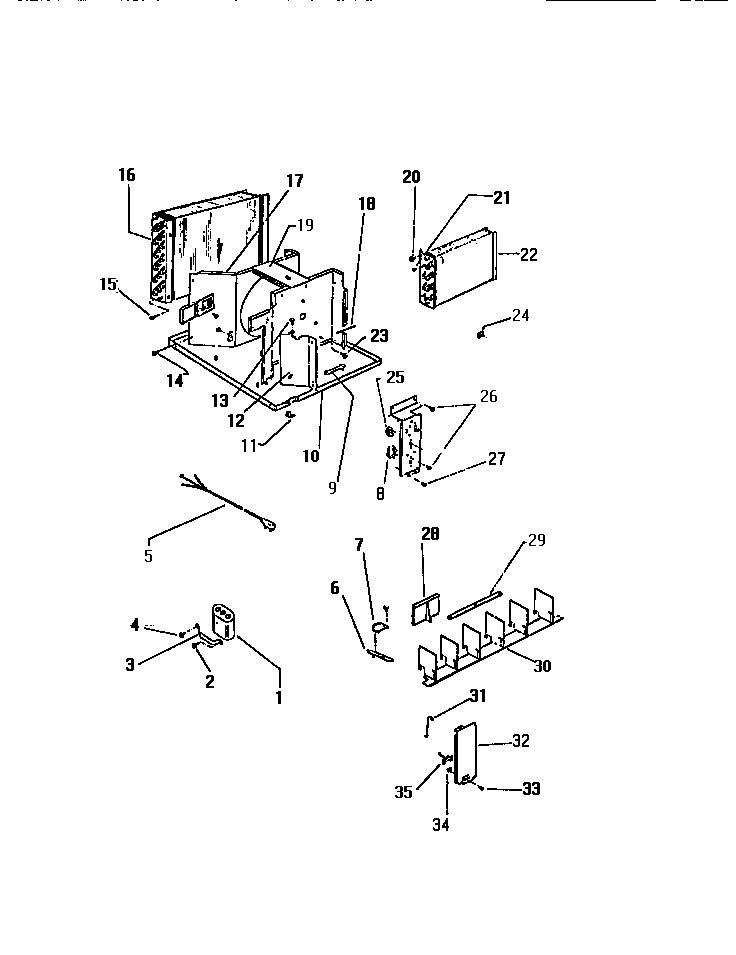

M316C2QA 03 – CONTROLS

Products

Position	Product
1	WCI G519417-05
3	STRAP-CAPACITOR
4	SCREW-STRAP
5	WCI G506345-13
6	WCI G157082-02
7	WCI G157083
8	SWITCH-5 POS
9	WCI G157176
10	WCI G520999
11	CLIP-RET (2)
11	WCI G522065
12	COVER-CNTL
15	STRAINER-FILTER
16	WCI G518232
17	SHROUD-COND
18	WCI G144044-26
19	WCI G516337-02
21	WCI G158416-01
22	WCI G160654
23	SCRW-NO. 8 X 3/8 (4)
24	SPACER-BULB
25	WCI G520390
26	SCRW-CNTRL (4)
27	WCI G521208
28	WCI G501587
29	WCI G157084
30	WCI G157081
31	WIRE-EXHAUST DR.
32	WCI G521002
33	SCREW-CLAMP
34	WCI G513721
35	CONTROL-AIR
