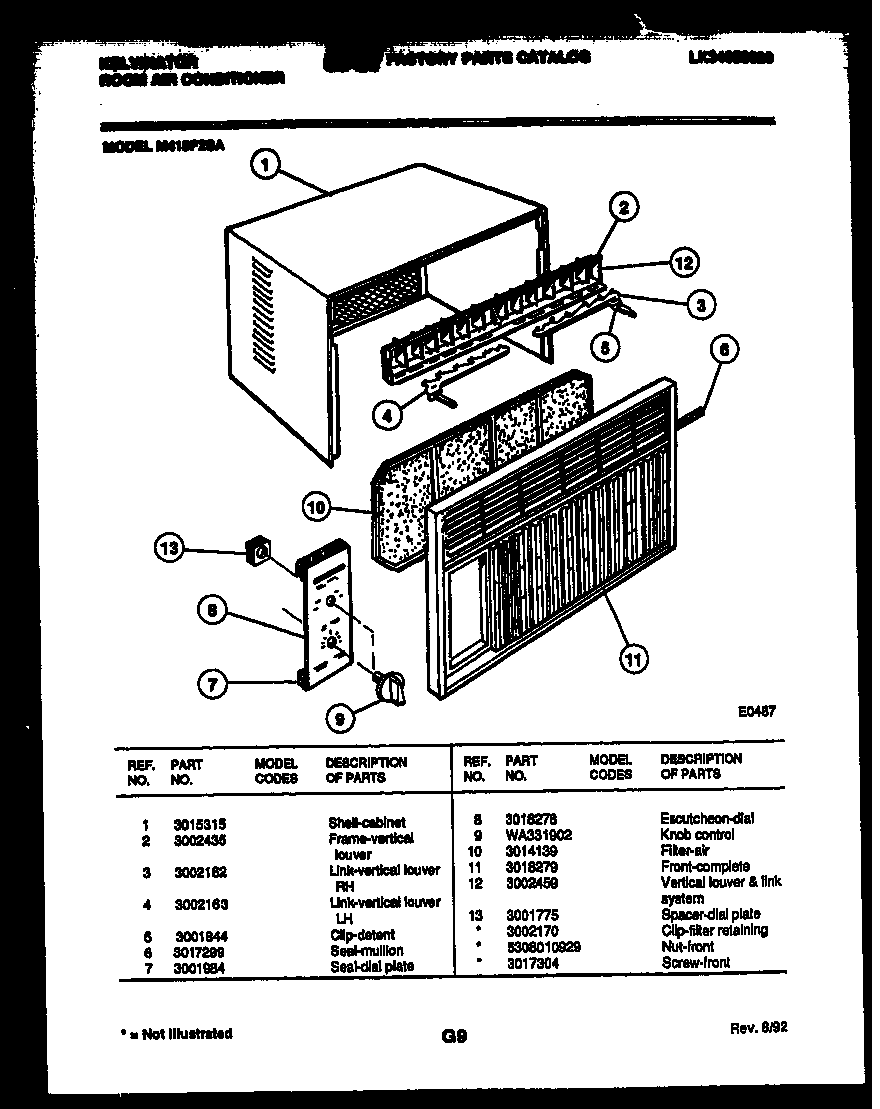

M418F2SA 02 – CABINET PARTS

Written by

Products

Position	Product
*36771	WCI 3002170
*36773	WCI 5308010929
*36776	WCI 3017304
1	SHELL-CABINET
2	WCI 3002435
3	LINK-VERT LOUVER RH
4	LINK-VERT LOUVER LH
5	CLIP-DETENT
6	WCI 3017299
7	SEAL-DIAL PLATE
8	WCI 3018278
9	WCI WA331902
10	FILTER-AIR
11	WCI 3018279
12	FRAME-VERT & LINK ASSY
13	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
