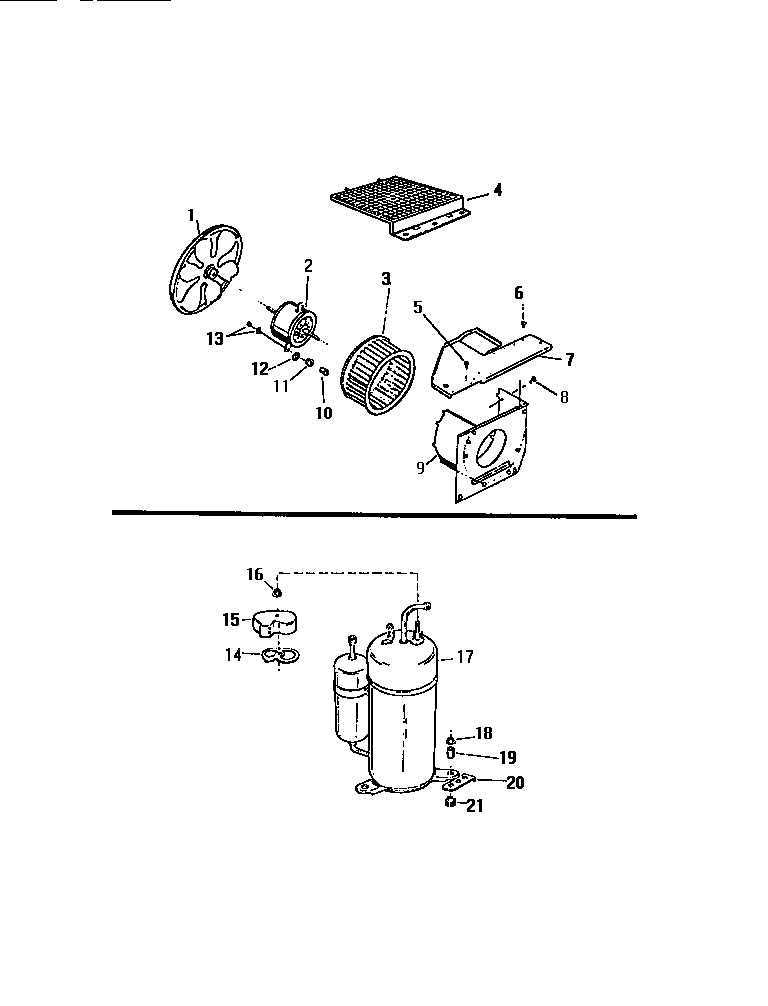

M420C2SB 04 – AIR HANDLING PARTS, COMPRESSOR

M420C2SB 04 – AIR HANDLING PARTS, COMPRESSOR

Written by

in

M420C2SB 04 – AIR HANDLING PARTS, COMPRESSOR

Products

Position	Product
1	FAN-SLINGER RING
2	WCI G519675
3	WHEEL-BLOWER
4	WCI G518451-02
4	SCRW-NO. 8 X 3/8 (4)
7	WCI G519536
8	WCI G521208
9	WCI G149147-04
10	WCI G119302
11	WCI G119108
12	NUT – MOTOR MTG.
13	NUT-MOTOR MTG ( 3 )
14	GASKET – COVER SEAL
15	WCI G520909
16	WCI G516950
17	WCI G521871-02
18	NUT-COMPR. MTG. (2)
19	SLEEVE-COMPRESSOR
20	PLATE-PROTECTOR-COMP.
21	GROMMET-COMPRESSOR
