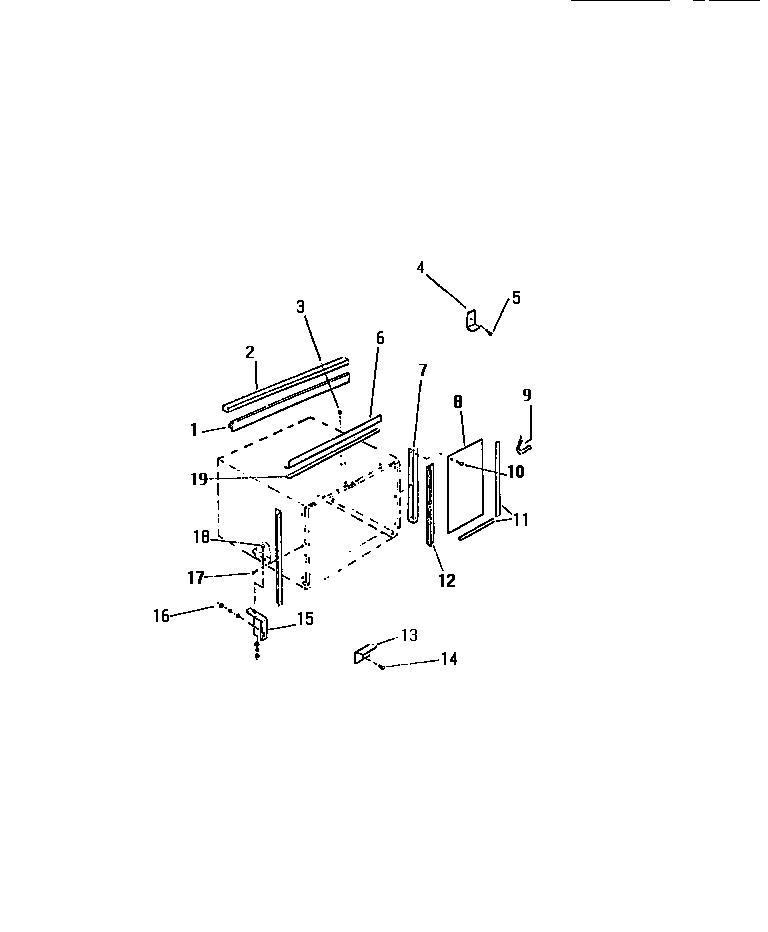

M420C2SB 05 – WINDOW MOUNTING PARTS

M420C2SB 05 – WINDOW MOUNTING PARTS

Written by

in

M420C2SB 05 – WINDOW MOUNTING PARTS

Products

Position	Product
1	WCI G149356-05
2	WCI G145337-10
3	SCRW NO. 10 X 3/8 (3)
4	BRACKET-BASE
5	WCI G100773
6	MEMBR-TP FRAME
7	MEMBR-SIDE FRAME (2)
8	WINDOW PANEL
9	WCI G117313
11	SEAL-SIDES & BTM
12	WCI G149182-05
13	BRKT-SILL SUPT (2)
15	BRKT-TRACK SUPT (2)
16	NUT-MOTOR MTG
17	WCI G521208
18	WCI G100824
19	SEAL-TOP FRAME
