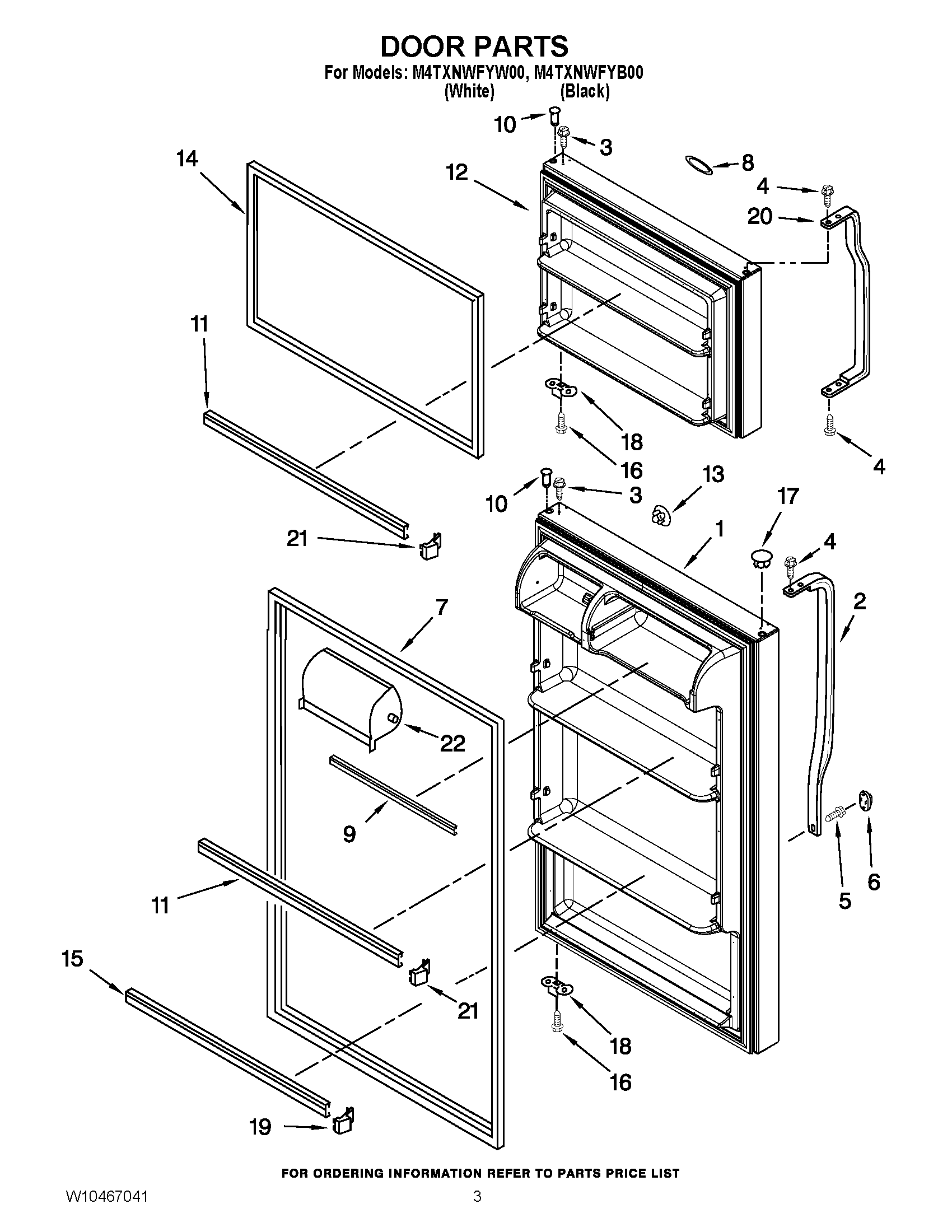

M4TXNWFYB00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEMS 7 & 10) (WHITE)
1	MAY W10287926
2	Handle, Refrigerator (White)
2	Handle, Refrigerator (Black)
4	MAY 489357
5	MAY 8281206
6	SCREW COVER (BLACK)
6	Screw Cover (White)
7	MAY 2264724
7	DOOR GASKET, REFRIGERATOR (BEIGE)
8	Nameplate
9	MAY W10234242
10	MAY 2262054
11	MAY 2266727
12	FREEZER DOOR (INCLUDES ITEMS 10 & 14) (WHITE)
12	MAY W10287928
13	MAY 2189009
13	Hole Plug, Handle
14	Door Gasket, Magnetic
14	GASKET, FC (BLACK)
15	MAY 2266738
16	MAY 488921
17	Hole Plug (Black)
17	MAY 2212648
18	MAY 2217944
19	PLUG-TRIM
20	Handle, Freezer (Black)
20	Handle, Freezer (White)
21	END CAP, TRIM
22	MAY 2207942

No products found
