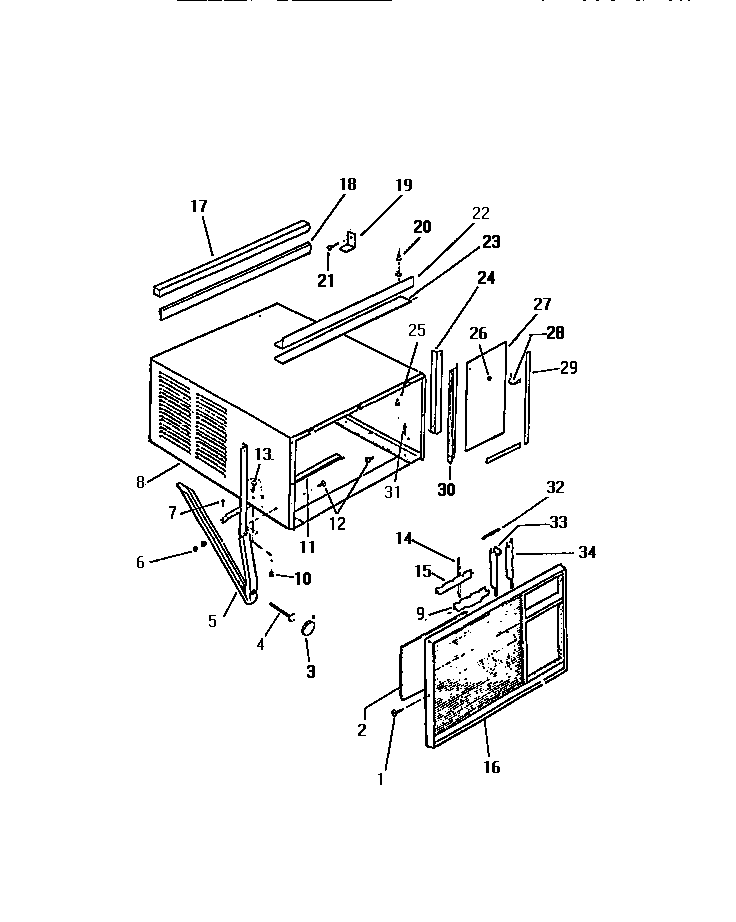

M528B2SA 02 – CABINET, FRONT, WRAPPER

Products

Position	Product
*40486	WCI G150486-18
*40494	WCI G149188-03
0000IN	WCI G157696-10
*40487	WCI G507383-01
*40491	WCI G150486-12
*40481	WCI G519954
*40484	WCI G612545
*40493	KIT-60“ WINDOW (NON-ILLUSTRATED)
*40489	WCI G513281-14
*40485	KIT-DUCT WRK ADPT (NON-ILLUSTRATED)
*40488	WCI G519207-22
*40492	WCI G518611
*40490	WCI G502900
1	SCREW-FRT PNL
2	WCI G157868
3	CAP-RUBBER
4	SCREW-BRACE TO BUILDING
5	WCI G149392-03
8	WCI G159566-10
9	WCI G512966-18
11	BRACE-CROSS SUPPORT
12	SCREW – MOTOR TO DUCT (2)
13	WCI G100824
14	LINK-HORIZONTAL LOUVER
15	WCI G513272-18
16	WCI G157582-02
17	WCI G145337-10
18	WCI G149356-05
19	BRACKET-BASE
20	NUT-MOTOR MTG
21	WCI G100773
22	SUPPORT-TOP
23	WCI G149187-04
24	SUPPORT-SIDES
25	SCREW-MTR DUCT
26	154419403 Frigidaire Dishwasher Screw
27	WINDOW PANEL
28	WCI G117313
29	WCI G149187-05
30	WCI G149182-05
31	WCI G100821
32	LINK, VERTICAL LOUVER
33	LOUVER, VERTICAL DIRECTIONAL
34	LOUVER-VERTICAL
