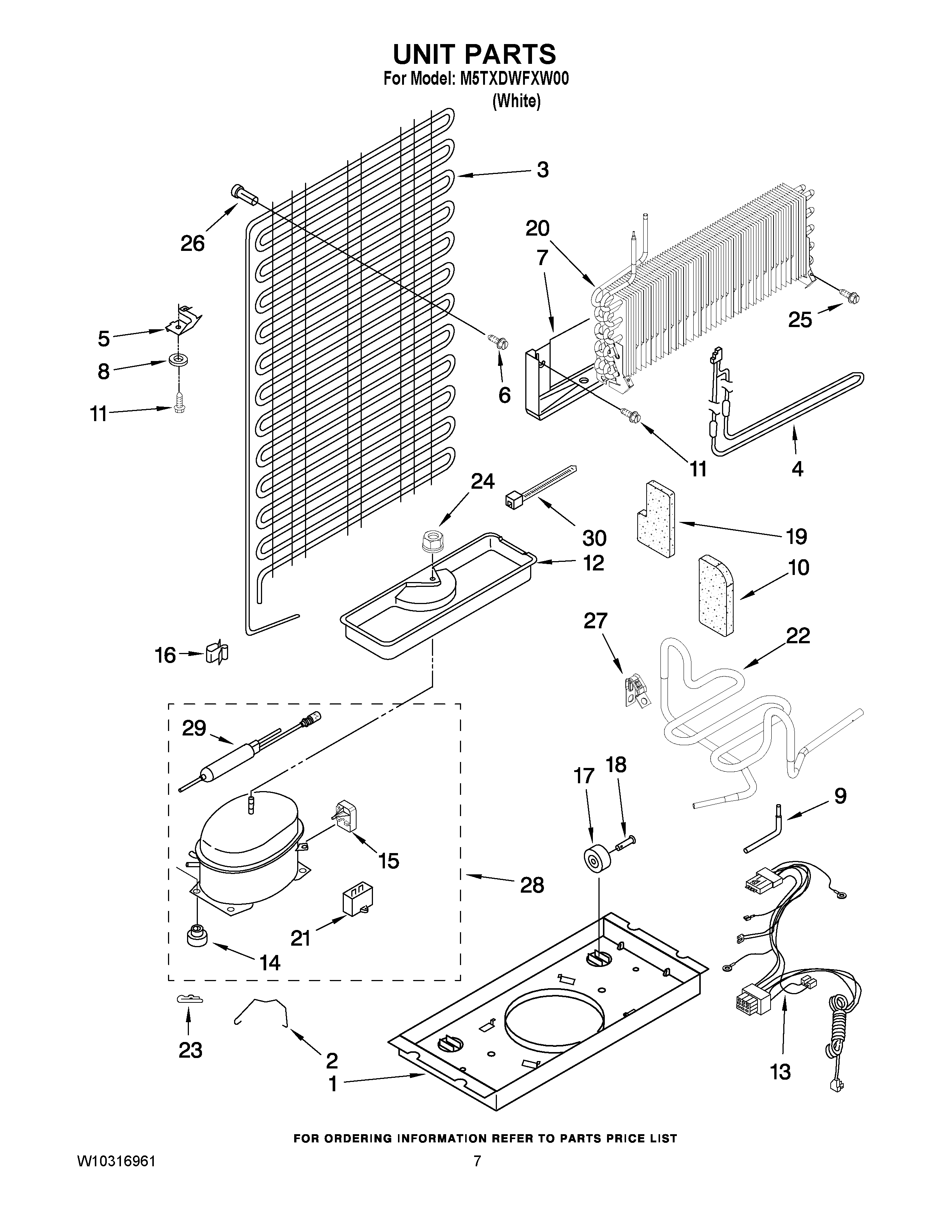

M5TXDWFXW00 04 – UNIT PARTSadmin2025-04-26T13:12:22+00:00M5TXDWFXW00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (3/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | MAY 876764 |
| 1 | MAY W10222451 |
| 2 | MAY W10174384 |
| 3 | MAY W10219348 |
| 4 | MAY 2263749 |
| 5 | MAY 2172892 |
| 6 | MAY 8533892 |
| 7 | MAY 2319224 |
| 8 | MAY VS611 |
| 9 | MAY W10205260 |
| 10 | MAY 2262192 |
| 11 | MAY 489442 |
| 12 | TRAY, EVAPORATOR |
| 13 | WIRE ASSEMBLY UNIT |
| 14 | Grommet (Production) |
| 14 | MAY 2222084 |
| 15 | START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY) |
| 16 | MAY 939054 |
| 17 | Roller |
| 18 | RIVET, AXLE |
| 19 | Wedge-Evap. |
| 20 | EVAPORATOR ASSEMBLY |
| 21 | Capacitator (Production) |
| 22 | TUBE, DISCHARGE |
| 23 | MAY 24364001 |
| 24 | MAY 489153 |
| 25 | MAY 489478 |
| 26 | MAY 2258452 |
| 27 | MAY 549193 |
| 28 | MAY W10164016 |
| 29 | DRIER (PRODUCTION) |
| 29 | Drier |
| 30 | MAY 2263990 |
