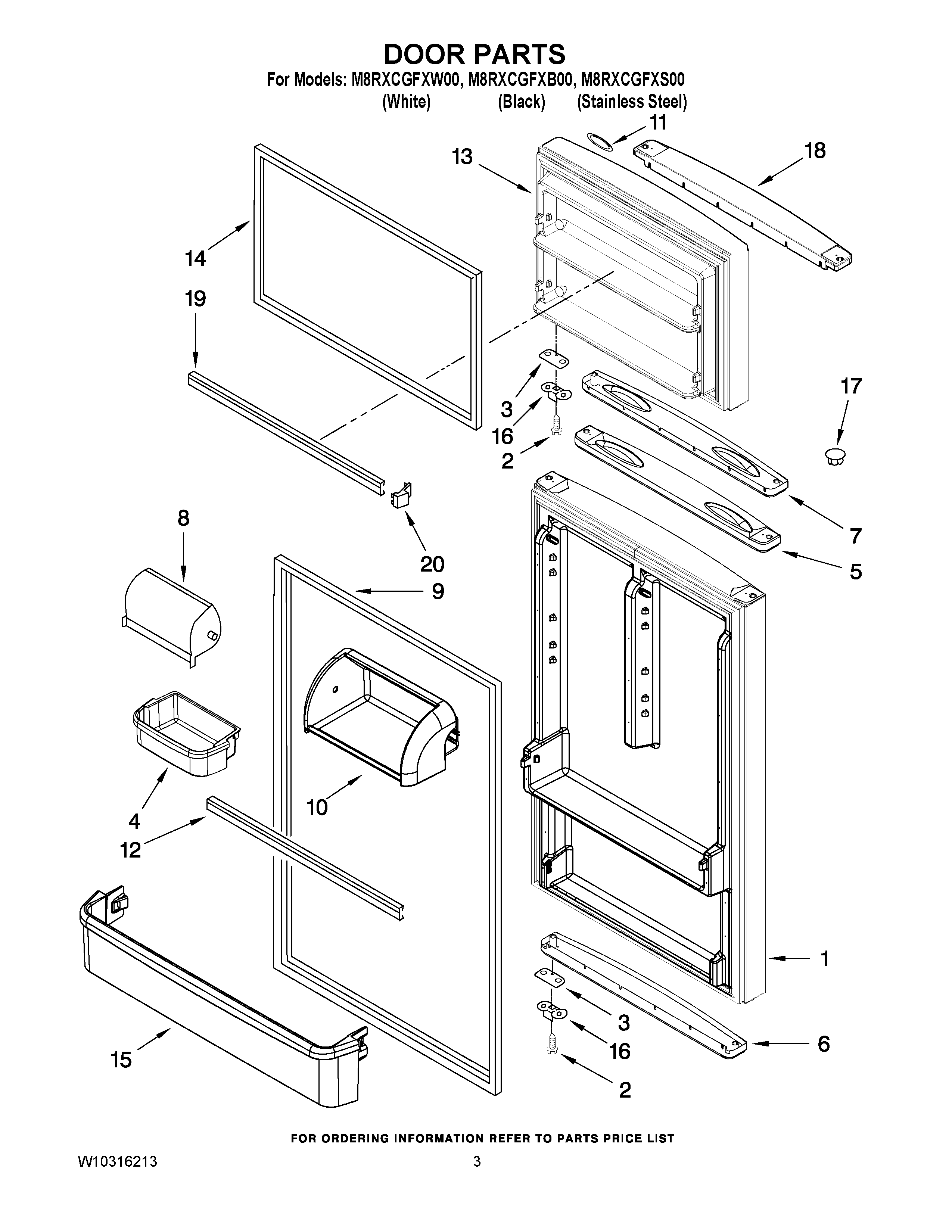

M8RXCGFXB00 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
1REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (BLACK)
1REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (WHITE)
2MAY 8533904
3Shim, Door Stop (White)
3Shim, Door Stop (Black)
4MAY 2266150
5Endcap, Handle (White)
5Endcap, Handle (Black)
6ENDCAP, BOTTOM (WHITE)
6MAY W10267749
7MAY W10267747
7PLUG, TRIM (WHITE)
8Door, Compartment
9MAY 2264727
9GASKET, RC (BLACK)
10Utility Comprtmnt.
11Nameplate
12MAY W10234241
13FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
13FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
13FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
14MAY 2264726
14GASKET, FC (BLACK)
15MAY 2266146
16MAY 2189202
17Hole Plug (Black)
17MAY 2212648
18Endcap, Top (White)
18Endcap, Top (Black)
19MAY 2266727
20END CAP, TRIM
