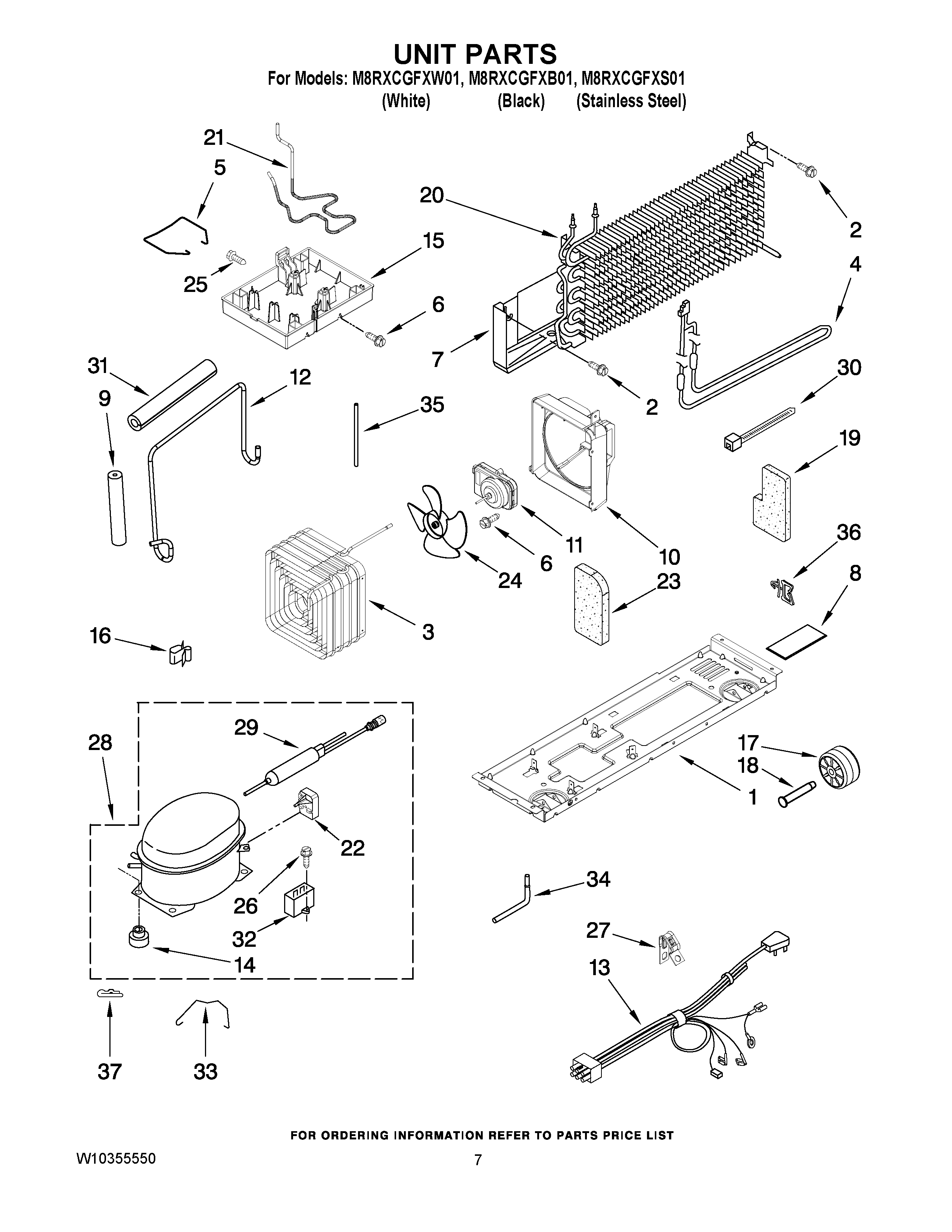

M8RXCGFXB01 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	MAY W10222450
2	MAY 489442
3	MAY 2264004
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	SHIELD-ELECTRICAL
9	Sleeve, Pressure Switch Hose
10	MAY 2263929
11	MAY 2188875
12	MAY 2264131
13	Wire Assy. Unit
14	Grommet (Production)
15	Evaporating Tray
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	TUBE, DISCHARGE (INCL. PRE-COOLER)
22	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE)
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	MAY 8533919
27	MAY 549193
28	COMPRESSOR (INCLUDES ITEMS 12,13,14 & 27) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	DRIER (PRODUCTION)
29	Drier
30	MAY 2263990
31	MAY 2264838
32	CAPACITATOR (SERVICE)
32	Capacitator (Production)
33	STRAP, BALE
34	MAY VS20001
35	MAY 2264278
36	CLIP-HARNESS
37	MAY 24364001
