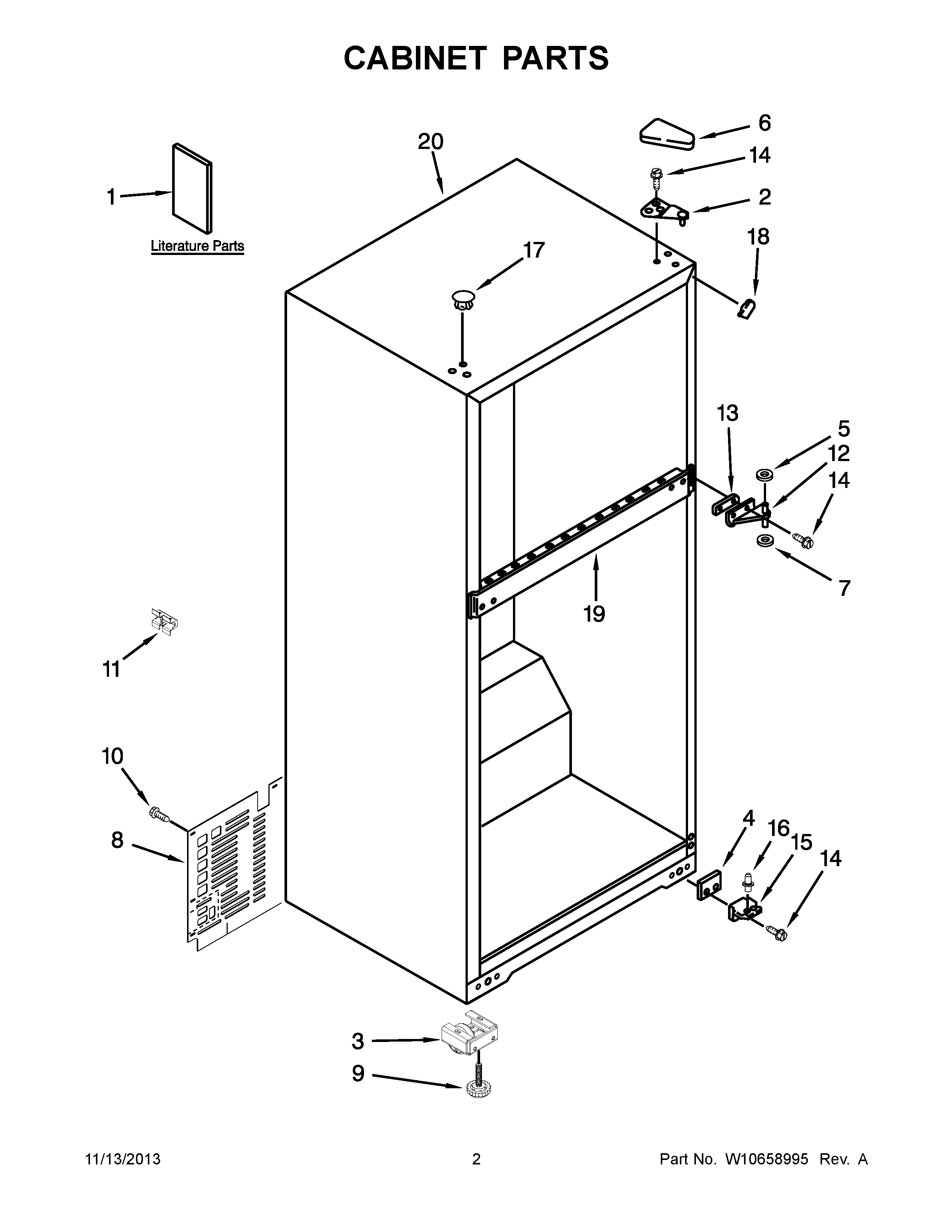

M8RXCGFXB03 02 – CABINET PARTS

M8RXCGFXB03 02 – CABINET PARTS

Written by

in

M8RXCGFXB03 02 – CABINET PARTS

Products

PositionProduct
1BMAY W10287757
1MAY W10402929
1AMAY W10214132
1CDO-IT-YOURSELF MANUAL REF./ FRZ.
2MAY 2261963
3ROLLER, FRONT
4MAY 2201567
5WASHER, PLASTIC
6Cover, Hinge (White)
6AMAY 2213363
7Washer (1/16)
8MAY W10570558
9LEVELER SCREW
10MAY 489442
11SPACER, BACK CB
12MAY 2166086
13SHIM, HINGE CENTER (WHITE)
13ASHIM, CENTER HINGE (BLACK)
14MAY 489497
15Hinge Butt, Btm
16Hinge-Pin, Btm
17MAY W10520304
17AHOLE PLUG (BLACK)
18Corner Filler
18ACorner Filler (Black)
20LINER (NOT A SERVICEABLE PART)
