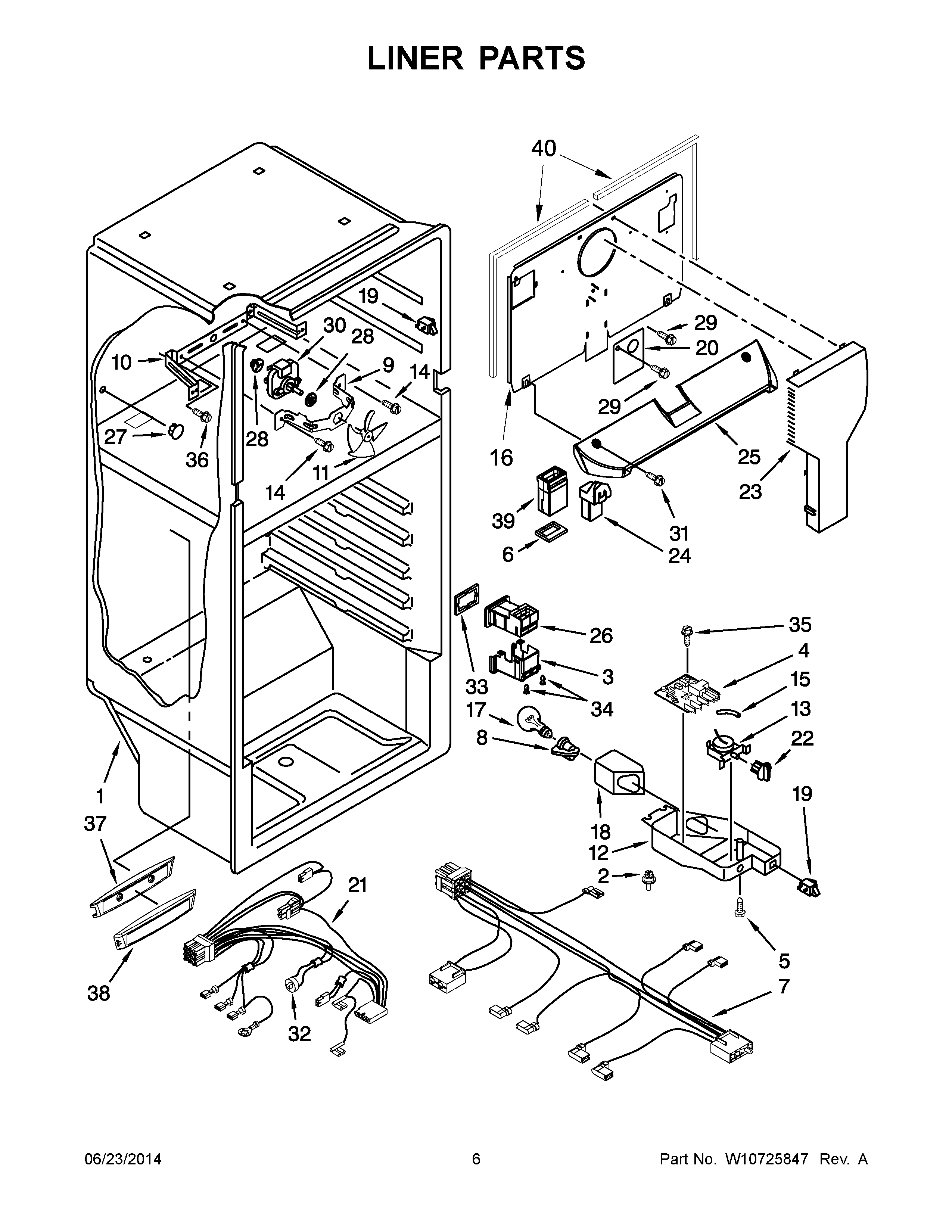

M8RXCGFXB04 04 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Rivet
3	MAY 2252837
4	TIMER, DEFROST
5	MAY 489174
6	MAY 2263075
7	MAY 2265572
8	Socket, Light
9	Fan Support Bracket
10	MAY 2197405
11	MAY 2169141
12	MAY 2264733
13	MAY W10511937
14	Screw 8-32 x 5/16
15	MAY 1118680
16	MAY W10244012
17	MAY 527949
18	MAY 9791702
19	MAY 1118894
20	MAY 2217784
21	WIRING, FREEZER (INCLUDES ITEM 32)
22	MAY 2202885
23	MAY 9790408
24	Hood And Foil Assembly
25	MAY 2261978
26	MAY W10355265
27	MAY 941839
28	MAY 2264462
29	MAY 489478
30	MAY 2315539
31	MAY 2262178
32	MAY 2266066
33	MAY W10129686
34	MAY 2256983
35	Screw
36	MAY 489442
37	Insulation (4)
38	GRILL
39	MAY 2252831
40	GASKET, EVAP COVER
