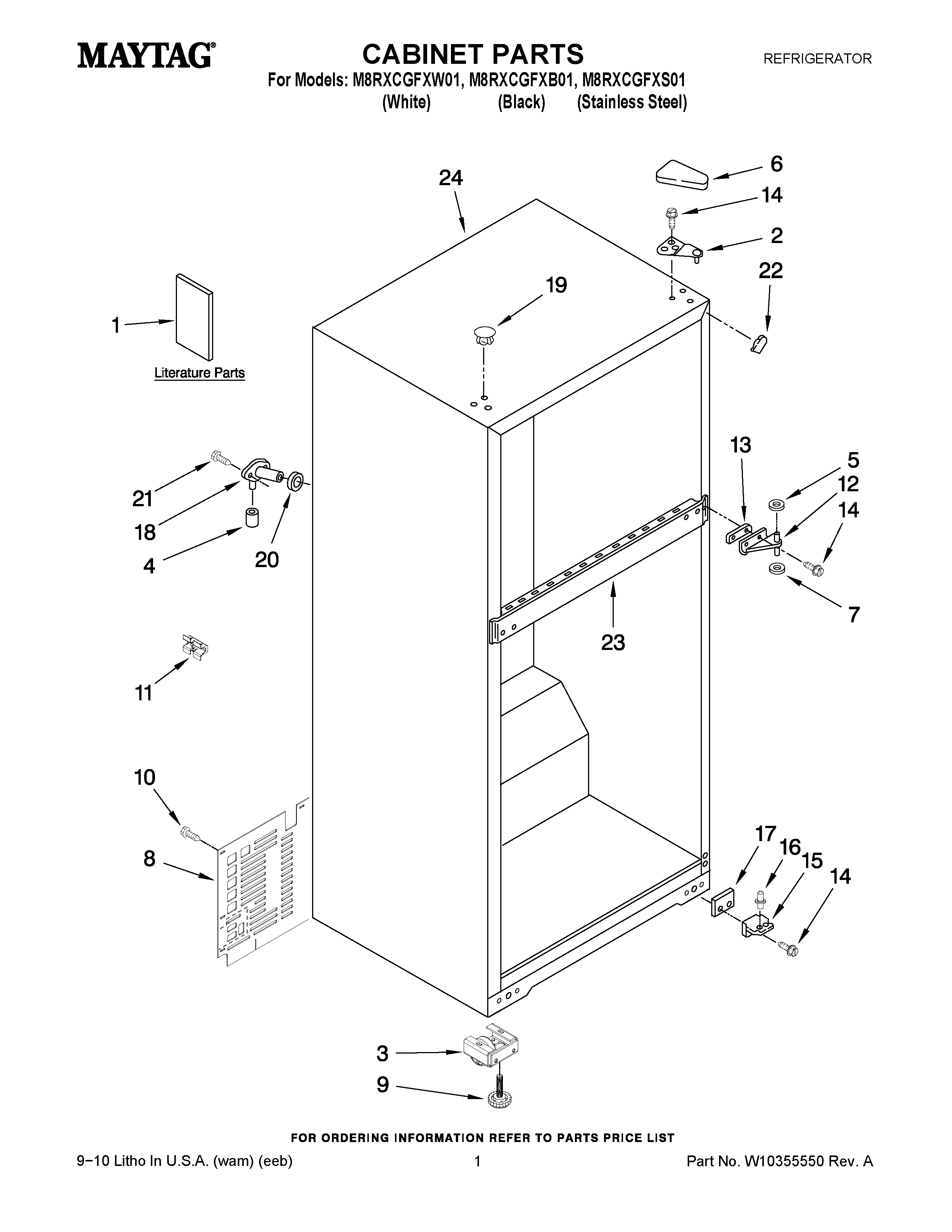

M8RXCGFXS01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10287757
1	MAY W10214132
1	MAY W10283801
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2261963
3	ROLLER, FRONT
4	CAP BUSHING
5	WASHER, PLASTIC
6	MAY 2213363
6	Cover, Hinge (White)
7	Washer (1/16)
8	MAY 2264132
9	LEVELER SCREW
10	MAY 489442
11	SPACER, BACK CB
12	MAY 2166086
13	SHIM, CENTER HINGE (BLACK)
13	SHIM, HINGE CENTER (WHITE)
14	MAY 489497
15	Hinge Butt, Btm
16	Hinge-Pin, Btm
17	MAY 2201567
18	MAY 2174760
19	HOLE PLUG
19	MAY 2183998
20	Seal
21	MAY 2262176
22	Corner Filler (Black)
22	Corner Filler
24	LINER (NOT A SERVICEABLE PART)
