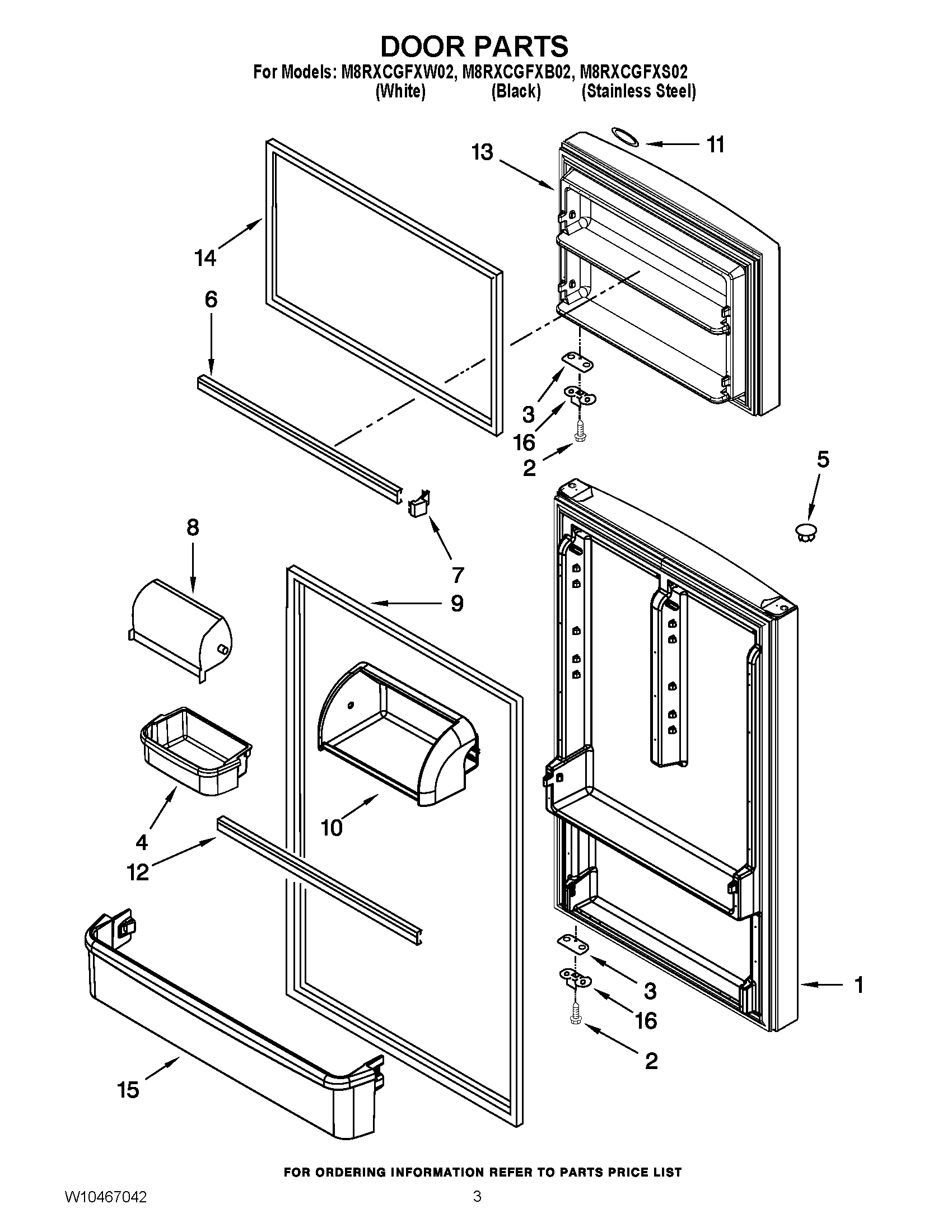

M8RXCGFXS02 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (WHITE)
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (BLACK)
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
2	MAY 8533904
3	Shim, Door Stop (White)
3	Shim, Door Stop (Black)
4	BIN, DOOR
5	Hole Plug (Black)
6	MAY 2266727
7	MAY 2212648
8	Door, Compartment
9	MAY 2264727
9	GASKET, RC (BLACK)
10	MAY 2264477
11	Nameplate
12	MAY W10234241
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
14	GASKET, FC (BLACK)
14	MAY 2264726
15	TRIM, DOOR SHELF
16	MAY 2189202
