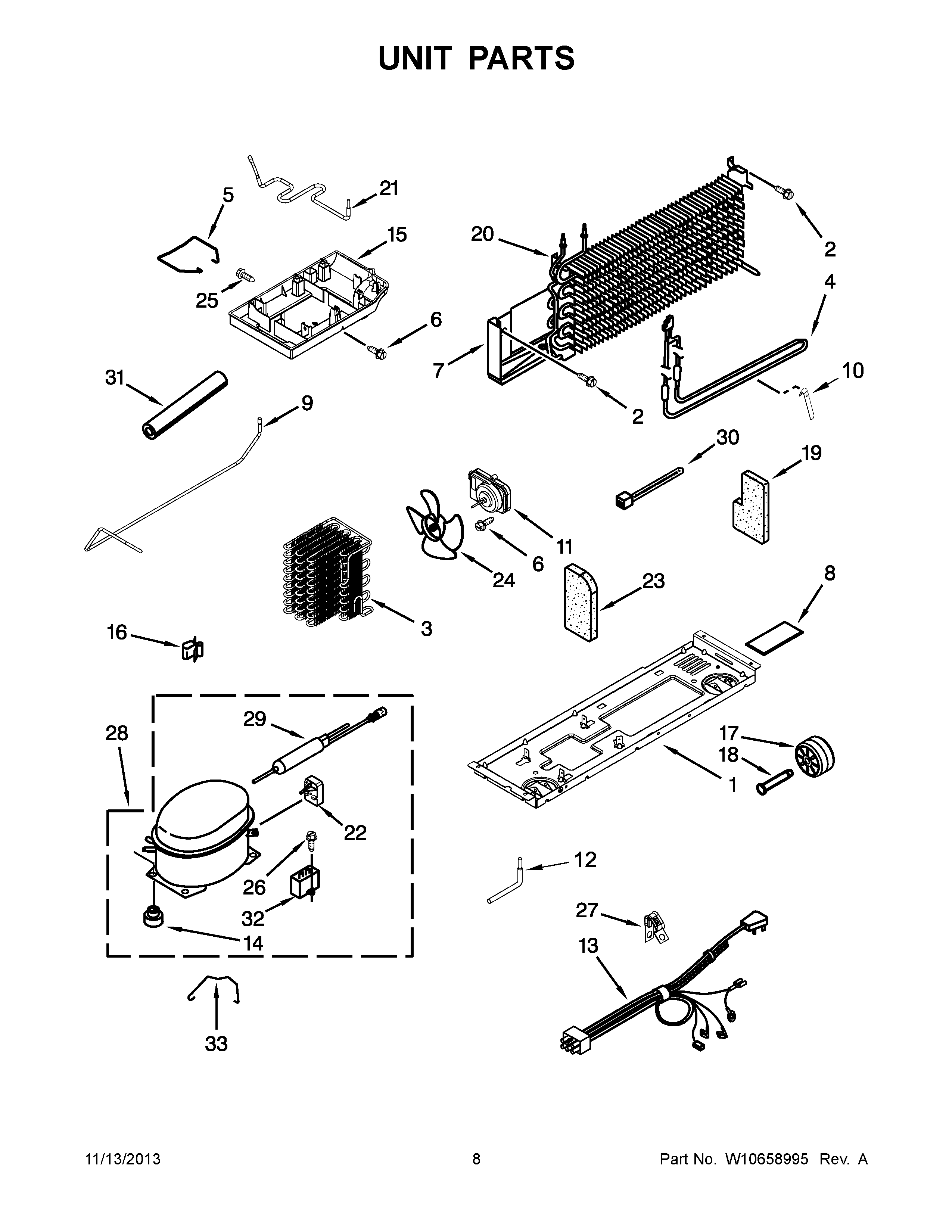

M8RXCGFXS03 05 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	MAY W10573847
2	MAY 489442
3	MAY W10487115
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	SHIELD-ELECTRICAL
9	MAY W10585747
10	MAY 2258429
11	MAY 2188875
12	MAY VS20001
13	MAY W10488462
14	Grommet (Production)
15	MAY W10565417
16	MAY 939054
17	MAY W10475495
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	MAY W10585741
22	START DEVICE,
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	MAY 8533919
27	MAY 549193
28	COMPRESSOR (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
29	DRIER (PRODUCTION)
30	MAY 2263990
31	MAY 2264838
32	CAPACITOR
33	STRAP, BALE
