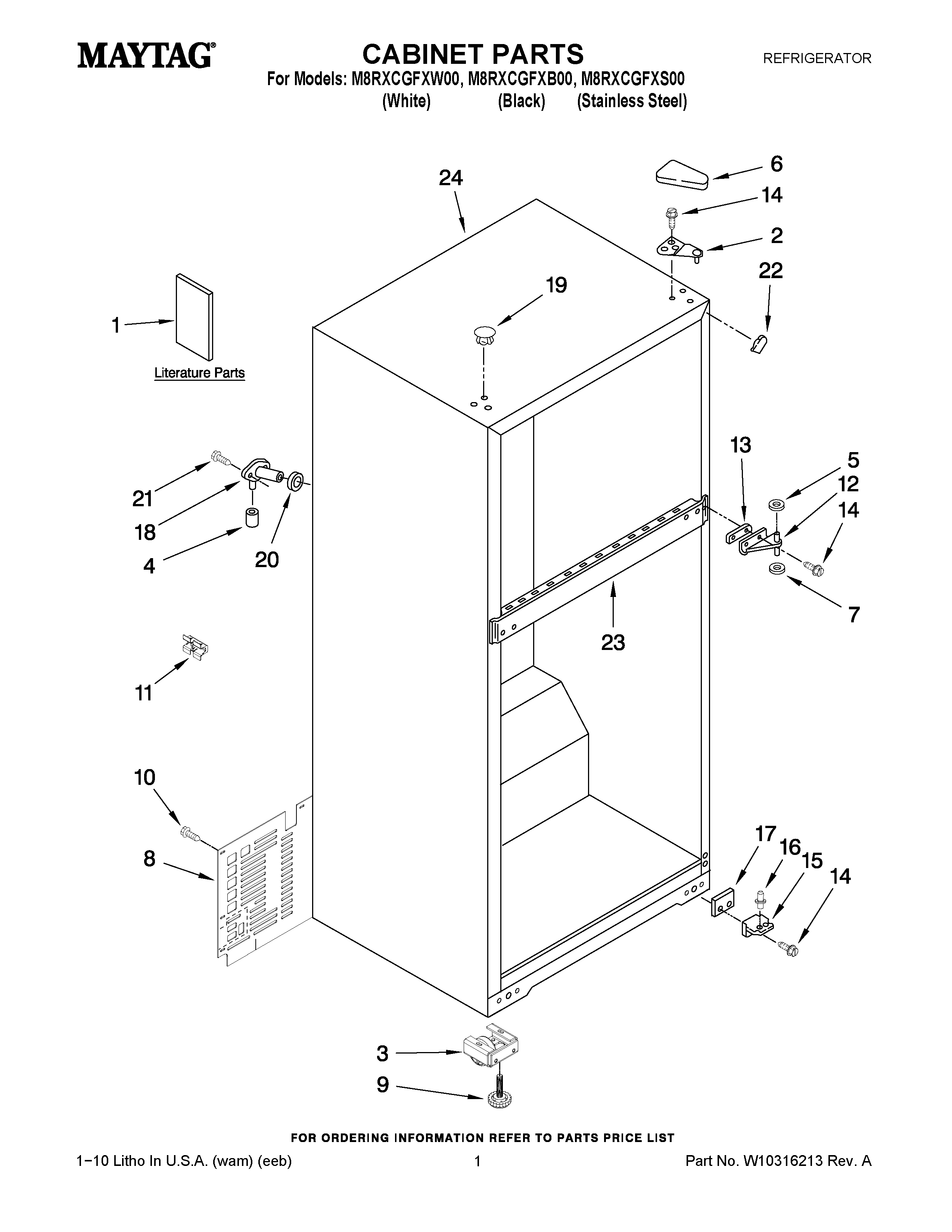

M8RXCGFXW00 01 – CABINET PARTS

Products

PositionProduct
1MAY W10289380
1MAY W10287757
1MAY W10214132
1DO-IT-YOURSELF MANUAL REF./ FRZ.
2MAY 2261963
3ROLLER, FRONT
4CAP BUSHING
5WASHER, PLASTIC
6MAY 2213363
6Cover, Hinge (White)
7Washer (1/16)
8MAY 2264132
9LEVELER SCREW
10MAY 489442
11SPACER, BACK CB
12MAY 2166086
13SHIM, HINGE CENTER (WHITE)
13SHIM, CENTER HINGE (BLACK)
14MAY 489497
15Hinge Butt, Btm
16Hinge-Pin, Btm
17MAY 2201567
18MAY 2174760
19HOLE PLUG
19MAY 2183998
20Seal
21MAY 2262176
22Corner Filler
22Corner Filler (Black)
24LINER (NOT A SERVICEABLE PART)
