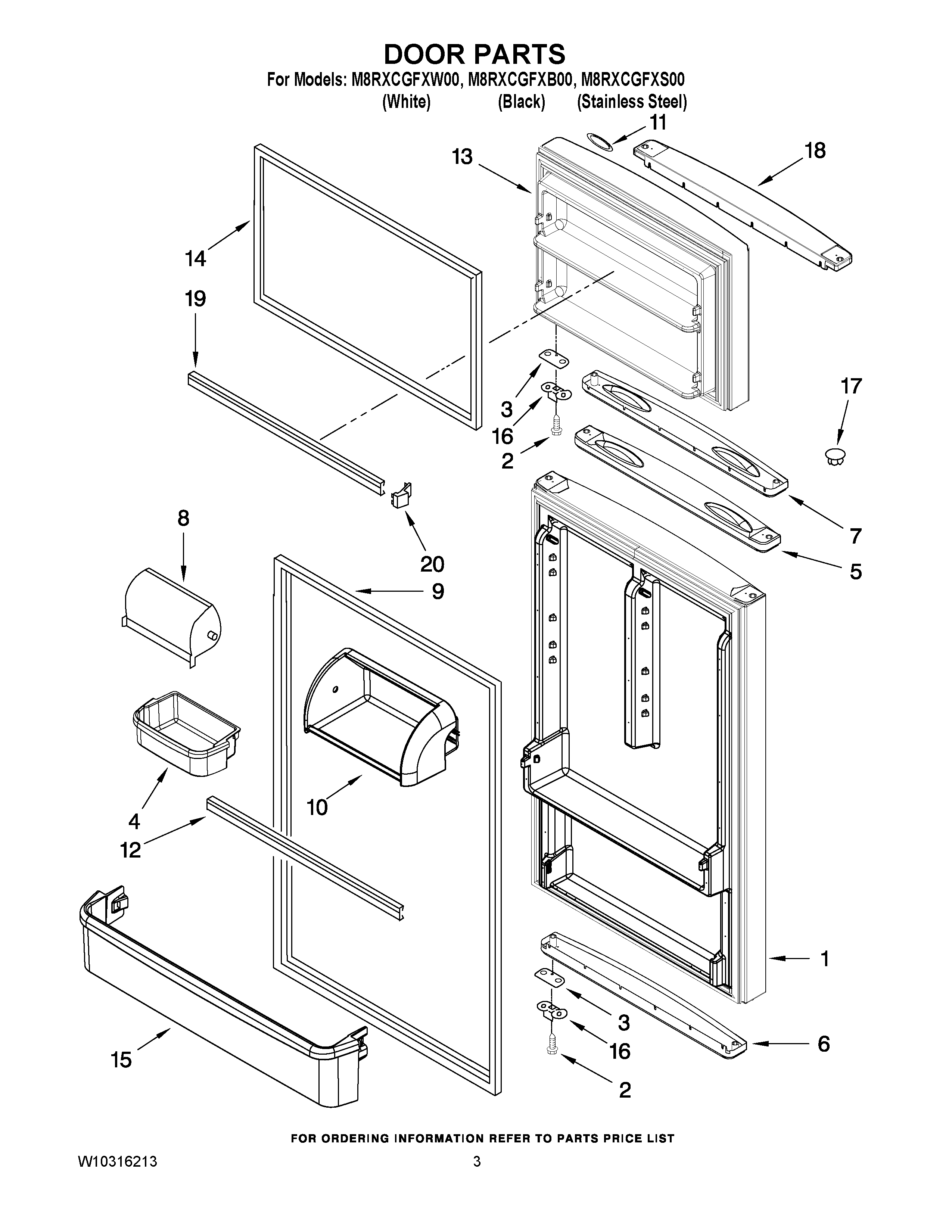

M8RXCGFXW00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (BLACK)
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (WHITE)
2	MAY 8533904
3	Shim, Door Stop (White)
3	Shim, Door Stop (Black)
4	MAY 2266150
5	Endcap, Handle (White)
5	Endcap, Handle (Black)
6	ENDCAP, BOTTOM (WHITE)
6	MAY W10267749
7	MAY W10267747
7	PLUG, TRIM (WHITE)
8	Door, Compartment
9	MAY 2264727
9	GASKET, RC (BLACK)
10	Utility Comprtmnt.
11	Nameplate
12	MAY W10234241
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
14	MAY 2264726
14	GASKET, FC (BLACK)
15	MAY 2266146
16	MAY 2189202
17	Hole Plug (Black)
17	MAY 2212648
18	Endcap, Top (White)
18	Endcap, Top (Black)
19	MAY 2266727
20	END CAP, TRIM
