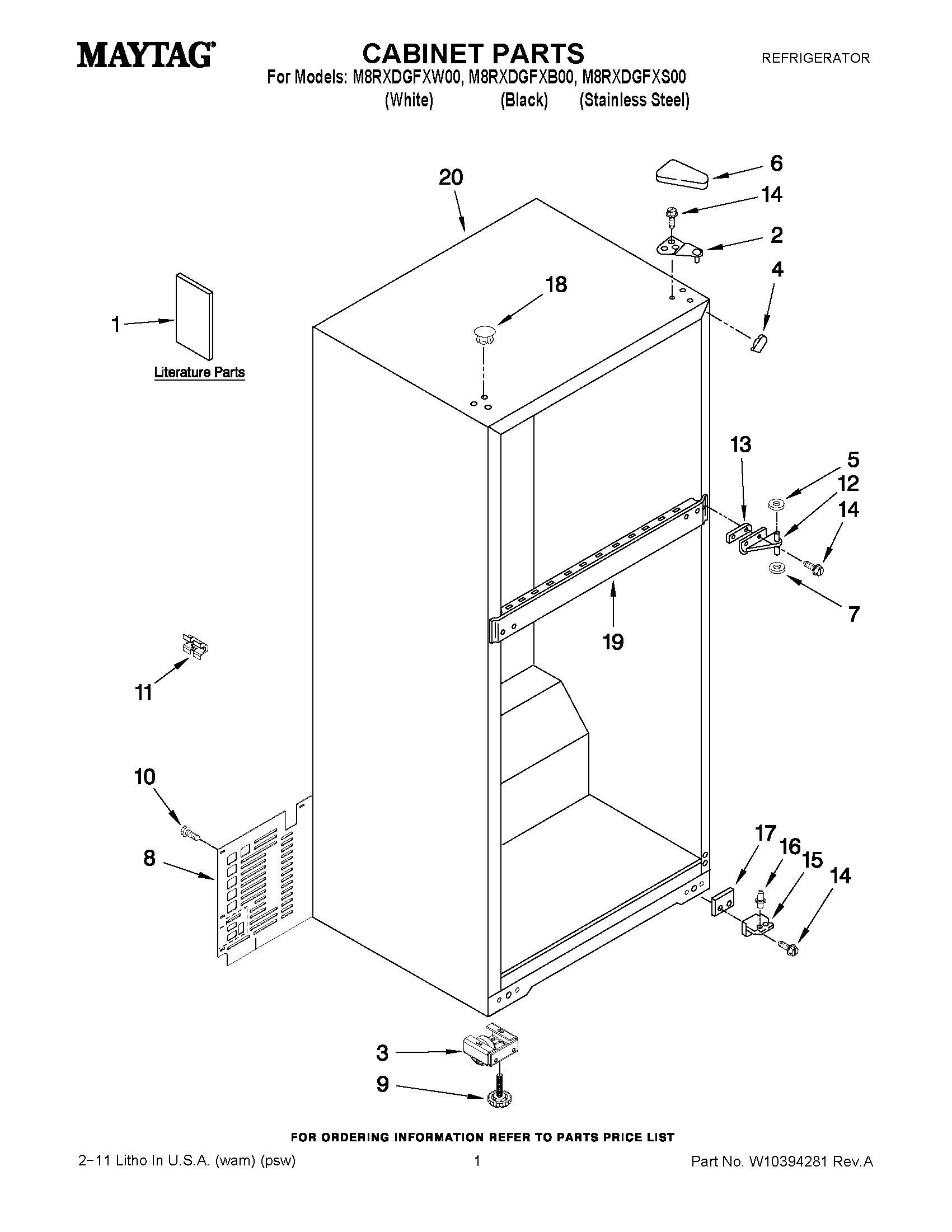

M8RXDGFXB00 01 – CABINET PARTS

M8RXDGFXB00 01 – CABINET PARTS

Written by

in

M8RXDGFXB00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10315472
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10214132
1	MAY W10223141
2	MAY 2261963
3	ROLLER, FRONT
5	WASHER, PLASTIC
6	MAY 2213363
6	Cover, Hinge (White)
7	Washer (1/16)
8	MAY 2264132
9	LEVELER SCREW
10	MAY 489442
11	SPACER, BACK CB
12	MAY 2166086
13	SHIM, CENTER HINGE (BLACK)
13	SHIM, HINGE CENTER (WHITE)
14	MAY 489497
15	Hinge Butt, Btm
16	Hinge-Pin, Btm
17	MAY 2201567
18	HOLE PLUG
18	MAY 2183998
20	LINER (NOT A SERVICEABLE PART)
