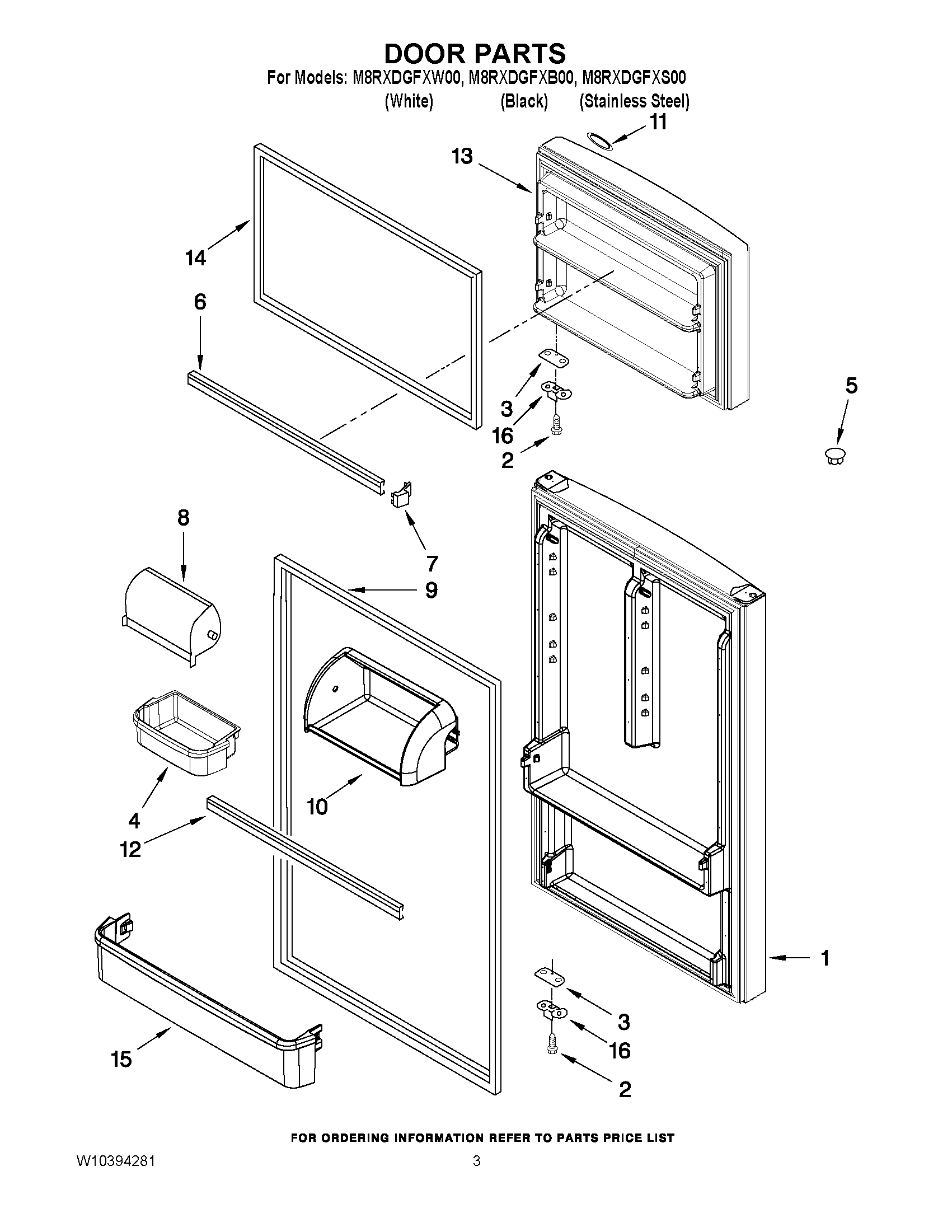

M8RXDGFXB00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (BLACK)
1	REFRIGERATOR DOOR PANEL (INCLUDES ILLUS. 9 & MOLDED DOOR HANDLE) (WHITE)
2	MAY 8533904
3	Shim, Door Stop (Black)
3	Shim, Door Stop (White)
4	MAY 2265126
5	MAY 2212648
5	Hole Plug (Black)
6	MAY 2266727
7	END CAP, TRIM
8	Door, Compartment
9	GASKET, RC (BLACK)
9	MAY 2264727
10	MAY 2264477
11	Nameplate
12	MAY W10234241
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (STAINLESS STEEL)
13	FREEZER DOOR PANEL (INCLUDES ILLUS. 14 & MOLDED DOOR HANDLE) (WHITE)
14	MAY 2264726
14	GASKET, FC (BLACK)
15	TRIM, DOOR
16	MAY 2189202
