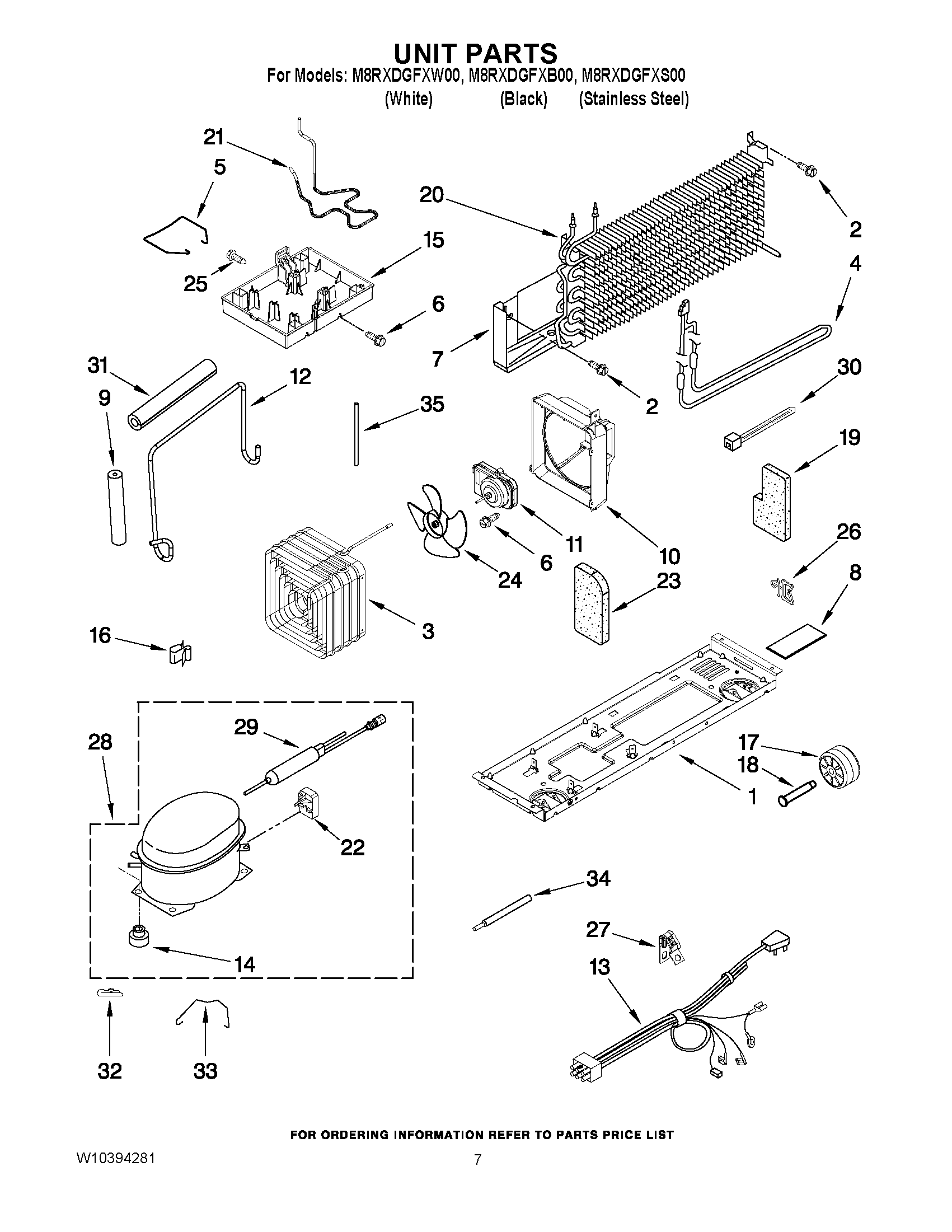

M8RXDGFXB00 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	MAY W10222450
2	MAY 489442
3	MAY W10140200
4	MAY 2176942
6	MAY 8533859
7	MAY 2319224
8	SHIELD-ELECTRICAL
9	Sleeve, Pressure Switch Hose
10	MAY 2263929
11	MAY 2188875
12	MAY W10209727
13	WIRE ASSY, UNIT
14	Grommet (Production)
15	Evaporating Tray
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	TUBE, DISCHARGE (INCL.PRE COOLER)
22	MAY W10233421
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	CLIP-HARNESS
27	MAY 549193
28	COMPRESSOR (INCLUDES ITEMS 14, 22, & 29)
29	DRIER (PRODUCTION)
29	Drier
30	MAY 2263990
31	MAY 2264838
32	MAY 24364001
33	MAY 2264835
34	PROCESS TUBE
35	MAY 2264278
