M8RXEGMAB00 01 – CABINET PARTS – Aparts

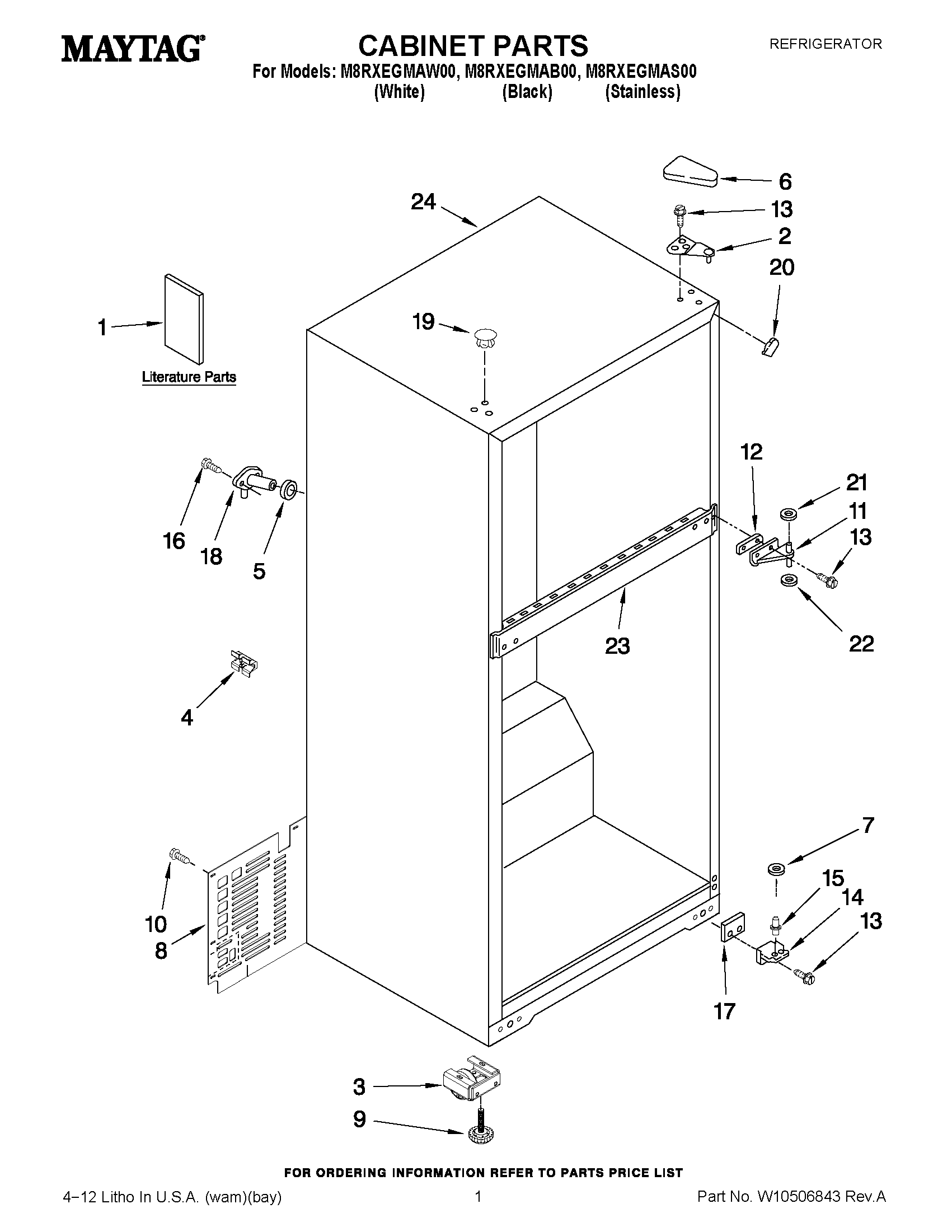

M8RXEGMAB00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10504134
1	MAY 628370
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10344152
1	MAY W10214132
2	MAY 2261963
3	ROLLER, FRONT
4	SPACER, BACK CB
5	Seal
6	Cover, Hinge (White)
6	MAY 2213363
8	MAY 2266389
9	LEVELER SCREW
10	MAY 489442
11	MAY 2166086
12	SHIM, HINGE CENTER (WHITE)
12	SHIM, CENTER HINGE (BLACK)
13	MAY 489497
14	Hinge Butt, Btm
15	Hinge-Pin, Btm
16	MAY 2262176
17	MAY 2201567
19	HOLE PLUG
19	MAY 2183998
20	Corner Filler (Black)
20	Corner Filler
21	WASHER, PLASTIC
22	Washer (1/16)
24	LINER (NOT A SERVICEABLE PART)
