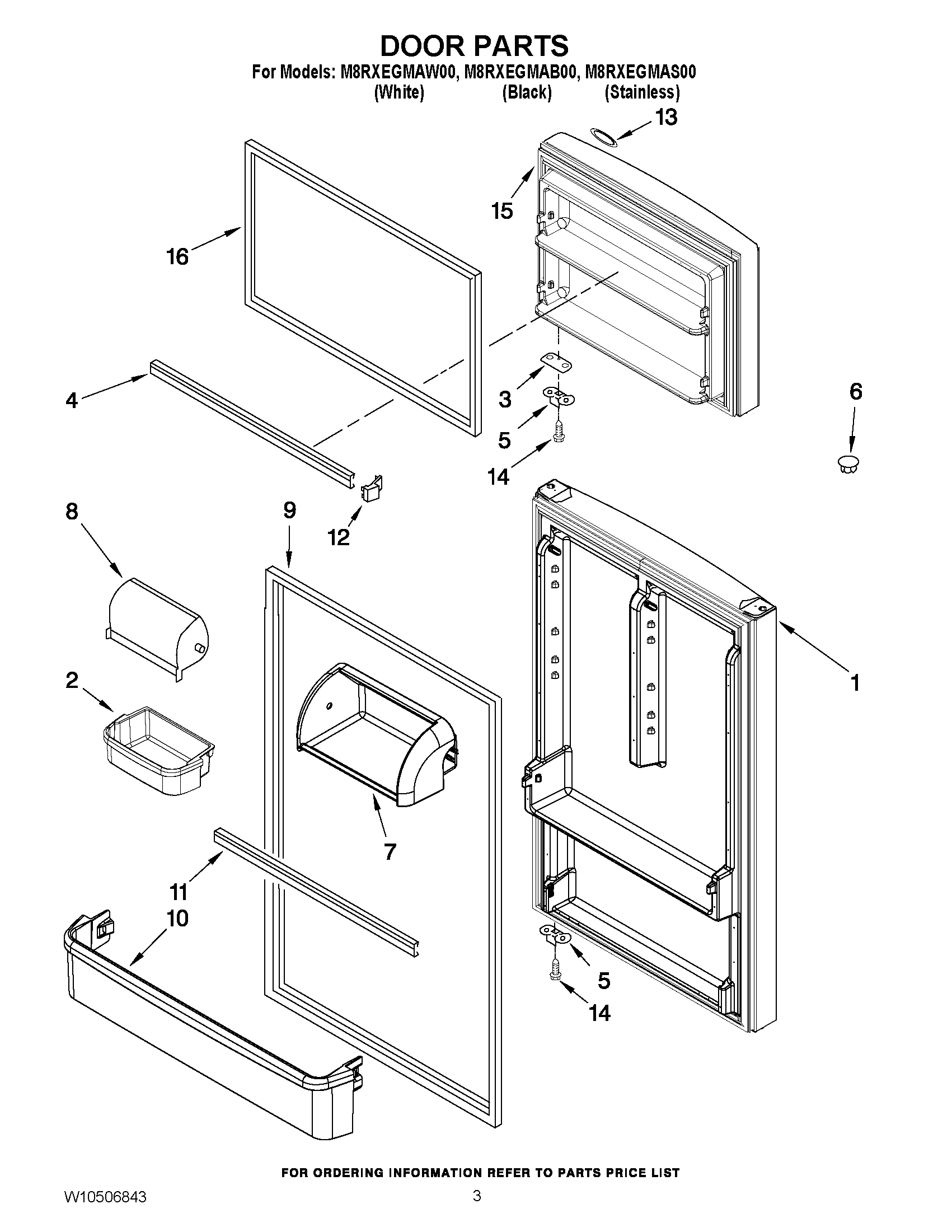

M8RXEGMAB00 02 – DOOR PARTSadmin2025-04-26T13:12:56+00:00M8RXEGMAB00 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY 2264716W |
| 1 | MAY W10209800 |
| 1 | MAY 2264716B |
| 2 | MAY 2265126 |
| 3 | Shim, Door Stop (Black) |
| 3 | Shim, Door Stop (White) |
| 4 | MAY 2266727 |
| 5 | MAY 2189202 |
| 6 | Hole Plug (Black) |
| 6 | MAY 2212648 |
| 7 | MAY 2264477 |
| 8 | Door, Compartment |
| 9 | MAY 2264727 |
| 9 | GASKET, RC (BLACK) |
| 10 | TRIM, DOOR |
| 11 | MAY W10234241 |
| 12 | END CAP, TRIM |
| 13 | MAY 2262218 |
| 14 | MAY 8533904 |
| 15 | FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (BLACK) |
| 15 | FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (WHITE) |
| 15 | FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (STAINLESS STEEL) |
| 16 | GASKET, FC (BLACK) |
| 16 | MAY 2264726 |
