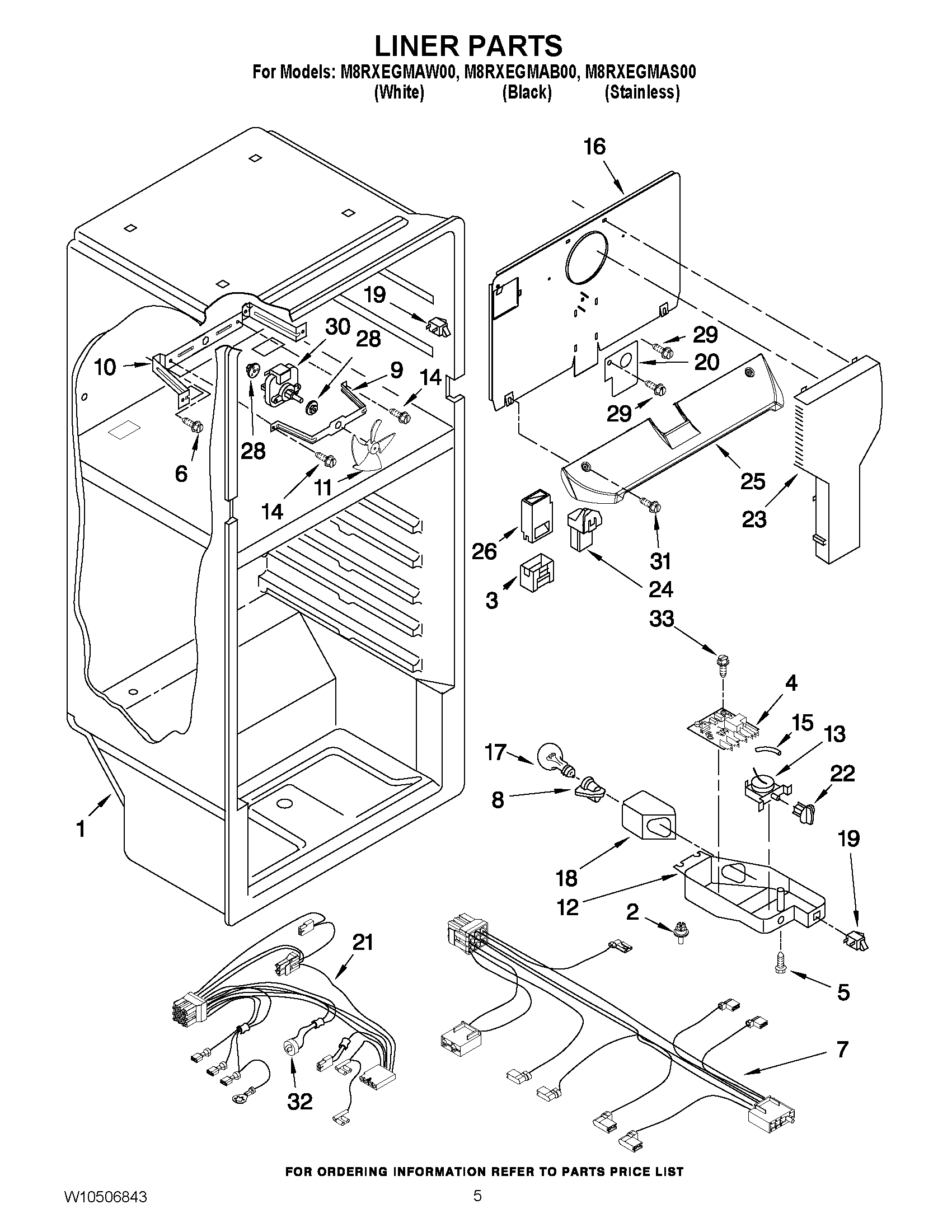

M8RXEGMAS00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Rivet
3	MAY 2183061
4	TIMER, DEFROST
5	MAY 489174
6	MAY 489442
7	MAY 2265572
8	Socket, Light
9	Fan Support Bracket
10	MAY 2197405
11	MAY 2169141
12	MAY W10338475
13	MAY 2325701
14	Screw 8-32 x 5/16
15	MAY 1118680
16	MAY W10244012
17	BULB, LIGHT
18	MAY 9791702
19	MAY 1118894
20	MAY 2217783
21	WIRING, FREEZER (INCLUDES ITEM 32)
22	MAY 2202885
23	MAY 9790408
24	Hood And Foil Assembly
25	MAY 2261978
26	MAY 2221992
28	MAY 2264462
29	MAY 489478
30	MAY 2315539
31	MAY 2262178
32	MAY 2266066
33	Screw
