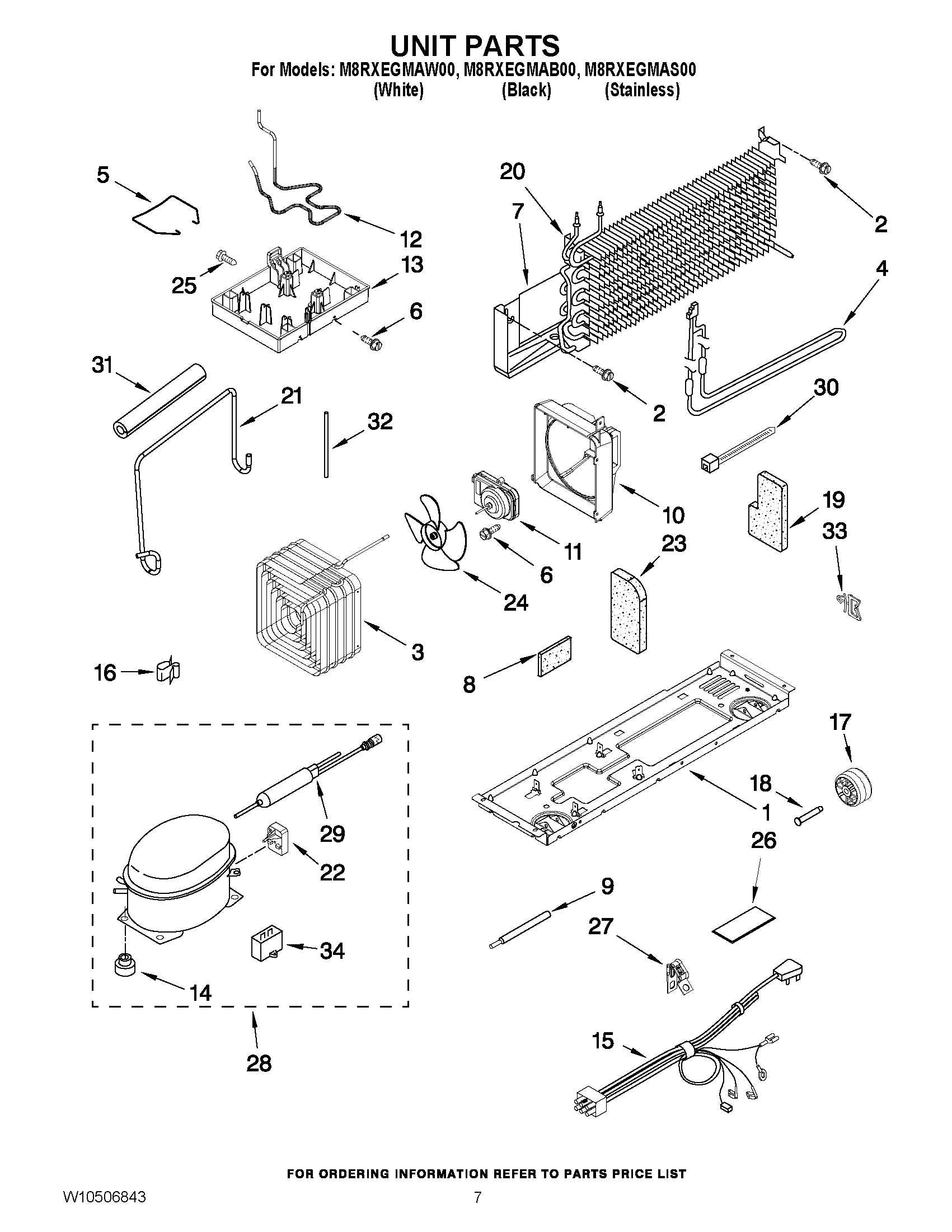

M8RXEGMAS00 04 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10222450
2	MAY 489442
3	MAY 2264597
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	MAY 2215468
9	PROCESS TUBE
10	AIR BAFFLE
11	MOTOR, CONDENSOR
12	TUBE, DISCHARGE (INCL. PRE-COOLER)
13	Evaporating Tray
14	GROMMET (SERVICE)
14	Grommet (Production)
15	Wire Assy. Unit
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	MAY W10209727
22	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE)
22	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	SHIELD-ELECTRICAL
27	MAY 549193
28	COMPRESSOR (INCLUDES ITEMS 10, 16, 22 & 35)
29	Drier
29	DRIER (PRODUCTION)
30	MAY 2263990
31	MAY 2264838
32	MAY 2264278
33	CLIP-HARNESS
34	Capacitator (Production)
