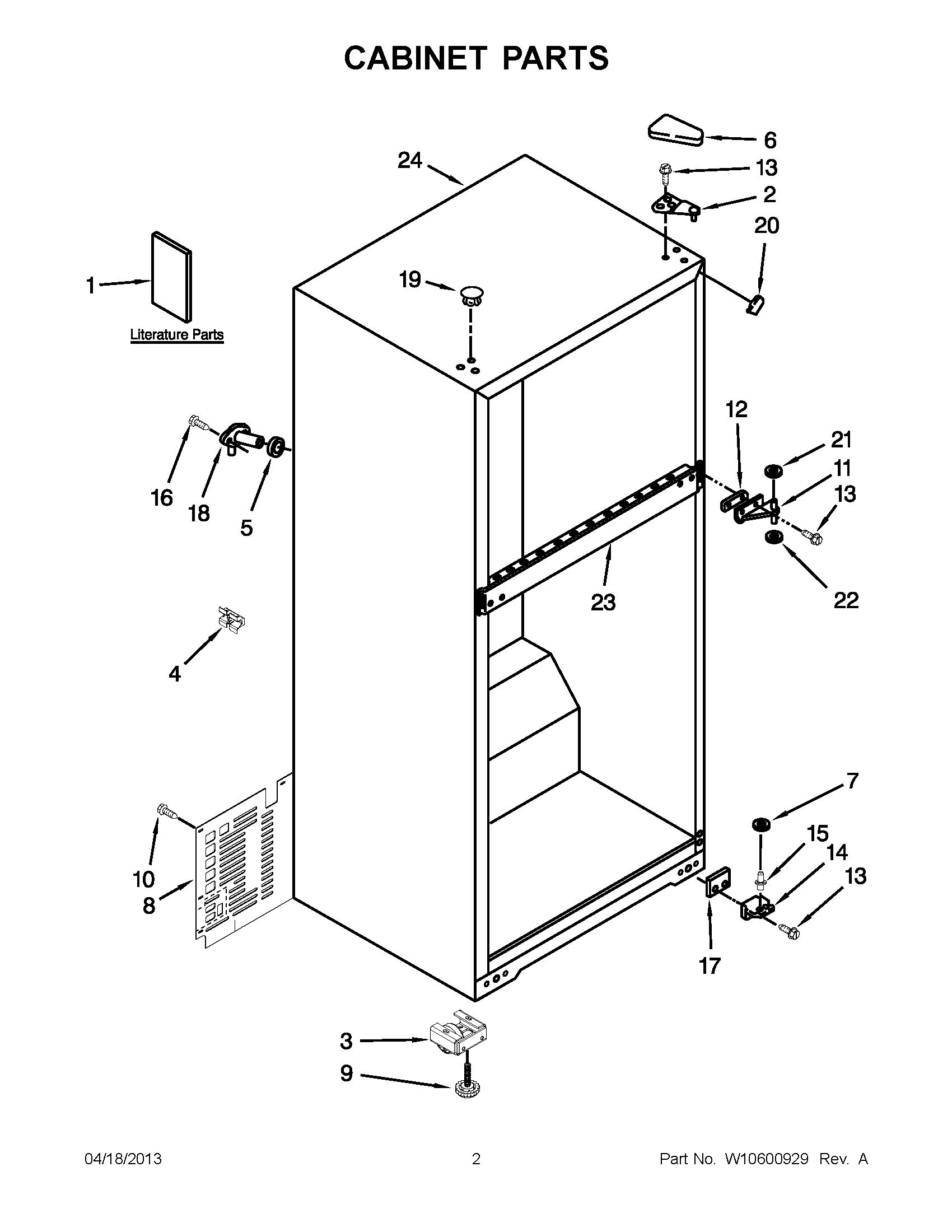

M8RXEGMAS01 01 – CABINET PARTS

Products

PositionProduct
1MAY W10504134
1DO-IT-YOURSELF MANUAL REF./ FRZ.
1MAY W10214132
1MAY W10527297
2MAY 2261963
3ROLLER, FRONT
4SPACER, BACK CB
5Seal
6Cover, Hinge (White)
6MAY 2213363
8MAY 2266389
9LEVELER SCREW
10MAY 489442
11MAY 2166086
12SHIM, HINGE CENTER (WHITE)
12SHIM, CENTER HINGE (BLACK)
13MAY 489497
14Hinge Butt, Btm
15Hinge-Pin, Btm
16MAY 2262176
17MAY 2201567
18MAY W10472793
19HOLE PLUG (BLACK)
19MAY W10520304
20Corner Filler
20Corner Filler (Black)
21WASHER, PLASTIC
22Washer (1/16)
24LINER (NOT A SERVICEABLE PART)
