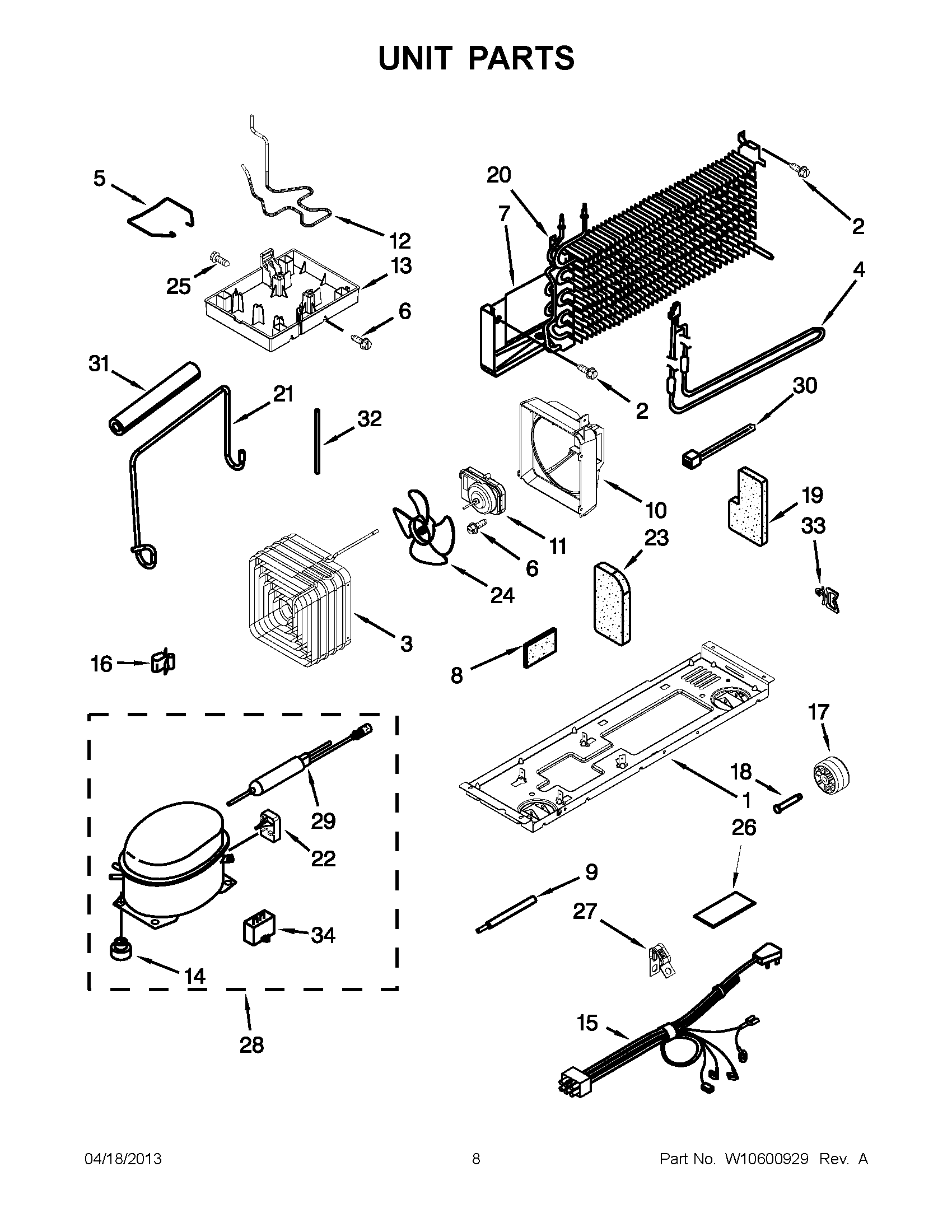

M8RXEGMAS01 04 – UNIT PARTSadmin2025-04-26T13:13:03+00:00M8RXEGMAS01 04 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY W10222450 |
| 2 | MAY 489442 |
| 3 | MAY 2264004 |
| 4 | MAY 2176942 |
| 5 | MAY 2264835 |
| 6 | MAY 8533859 |
| 7 | MAY 2319224 |
| 8 | MAY 2215468 |
| 9 | MAY VS20001 |
| 10 | AIR BAFFLE |
| 11 | MOTOR, CONDENSOR |
| 12 | TUBE, DISCHARGE (INCL. PRE-COOLER) |
| 13 | Evaporating Tray |
| 14 | Grommet (Production) |
| 15 | Wire Assy. Unit |
| 16 | MAY 939054 |
| 17 | MAY W10475495 |
| 18 | RIVET, AXLE |
| 19 | Wedge-Evap. |
| 20 | EVAPORATOR ASSY |
| 21 | MAY W10524963 |
| 22 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION) |
| 23 | MAY 2262192 |
| 24 | MAY 2264129 |
| 25 | MAY 2264841 |
| 26 | SHIELD-ELECTRICAL |
| 27 | MAY 549193 |
| 28 | MAY W10527293 |
| 29 | DRIER (PRODUCTION) |
| 30 | MAY 2263990 |
| 31 | MAY 2264838 |
| 32 | MAY 2264278 |
| 33 | CLIP-HARNESS |
| 34 | Capacitator (Production) |
