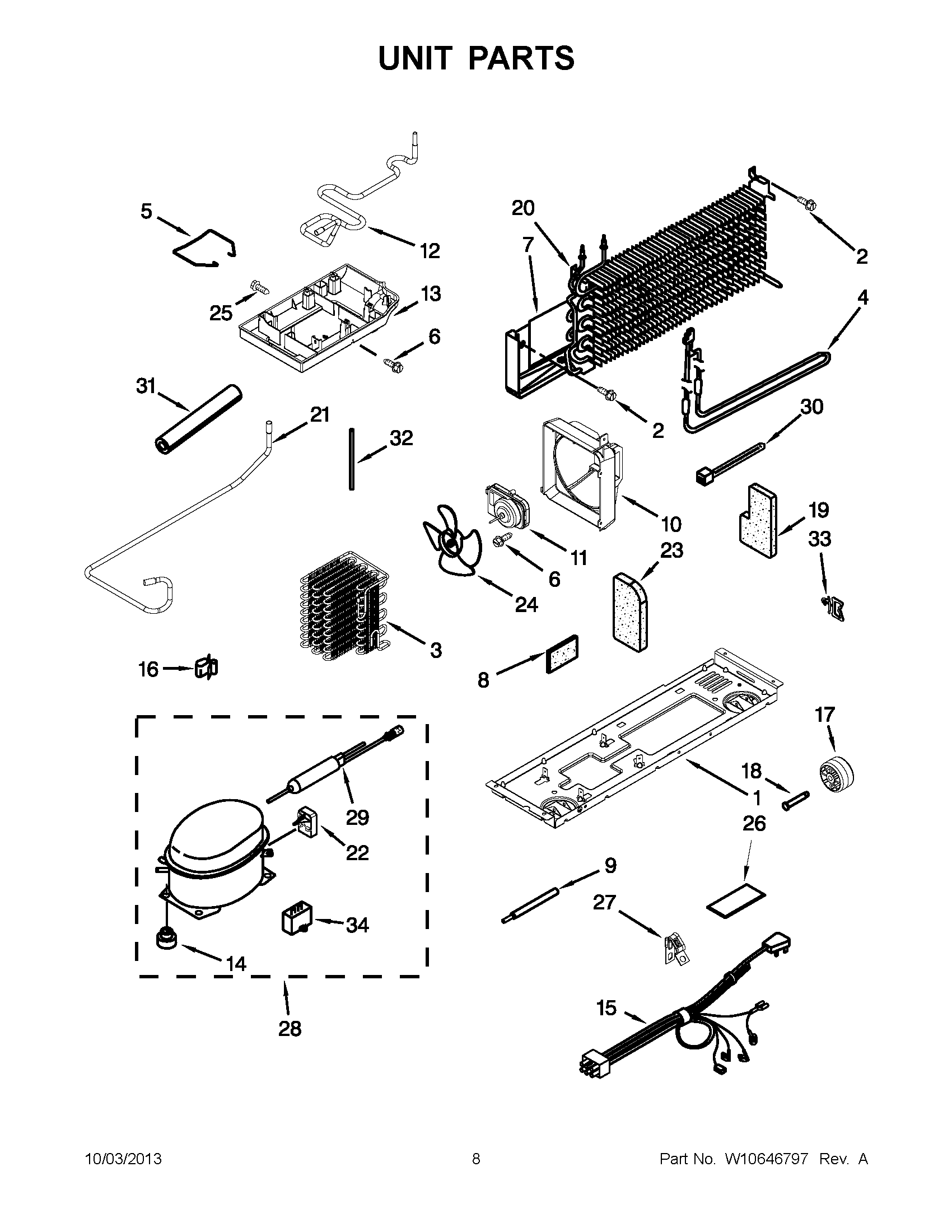

M8RXEGMAS02 05 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
1	MAY W10222450
2	MAY 489442
3	MAY W10487115
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	MAY 2215468
9	MAY VS20001
10	MAY W10570380
11	MOTOR, CONDENSOR
12	MAY W10626661
13	MAY W10565417
14	Grommet (Production)
15	MAY W10488462
16	MAY 939054
17	MAY W10475495
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	MAY W10626662
22	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	SHIELD-ELECTRICAL
27	MAY 549193
28	MAY W10527293
29	DRIER (PRODUCTION)
30	MAY 2263990
31	MAY 2264838
32	MAY W10582029
33	CLIP-HARNESS
34	Capacitator (Production)
