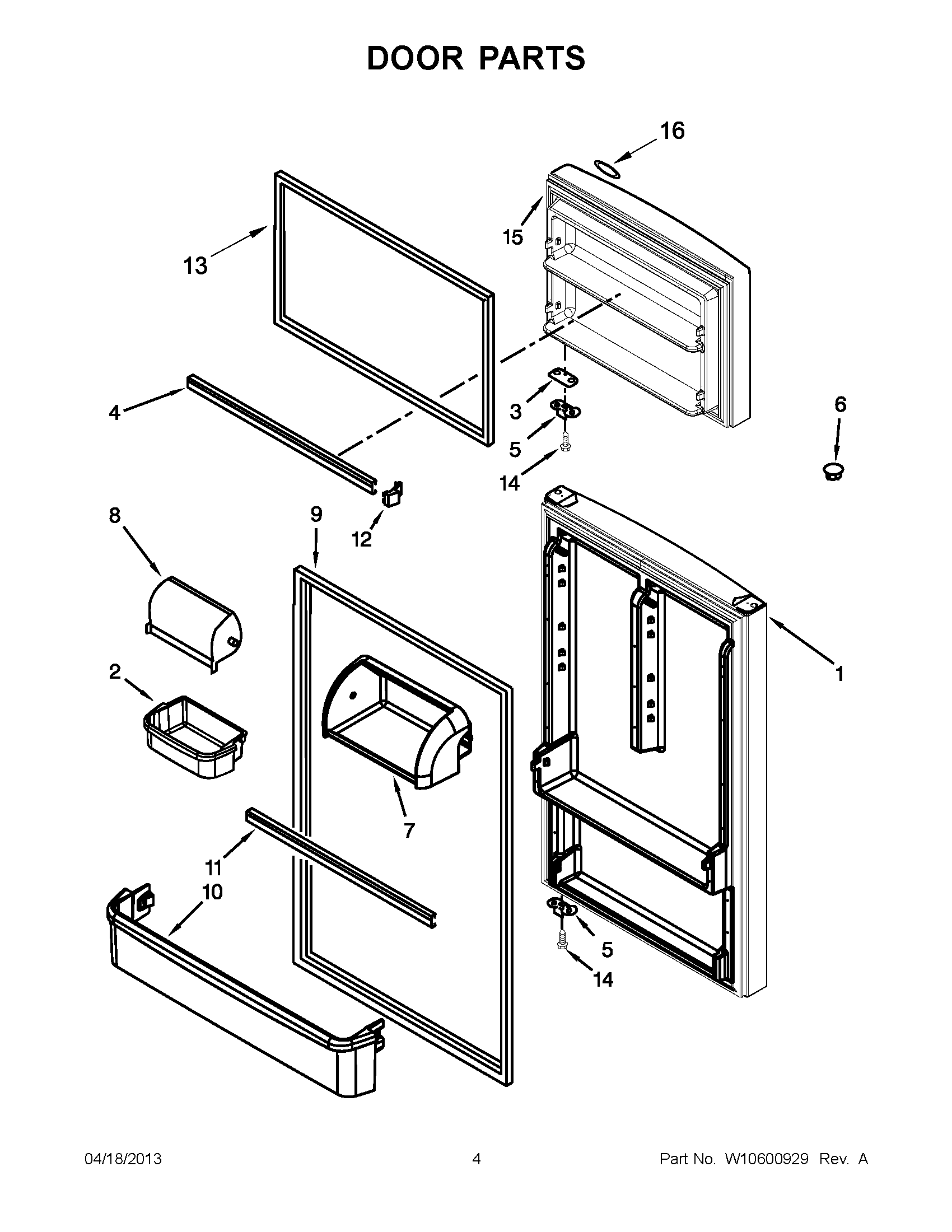

M8RXEGMAW01 02 – DOOR PARTS

Products

Position	Product
1	MAY 2264716W
1	MAY W10209800
1	MAY 2264716B
2	MAY 2265126
3	Shim, Door Stop (Black)
3	Shim, Door Stop (White)
4	MAY 2266727
5	MAY 2189202
6	Hole Plug (Black)
6	MAY 2212648
7	MAY 2264477
8	Door, Compartment
9	MAY 2264727
9	GASKET, RC (BLACK)
10	MAY W10468559
11	MAY W10234241
12	END CAP, TRIM
13	GASKET, FC (BLACK)
13	MAY 2264726
14	MAY 8533904
15	FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (BLACK)
15	FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (WHITE)
15	FREEZER DOOR PANEL (INCLUDES ILLUS. 2,13 & 18) (STAINLESS STEEL)
16	Nameplate
