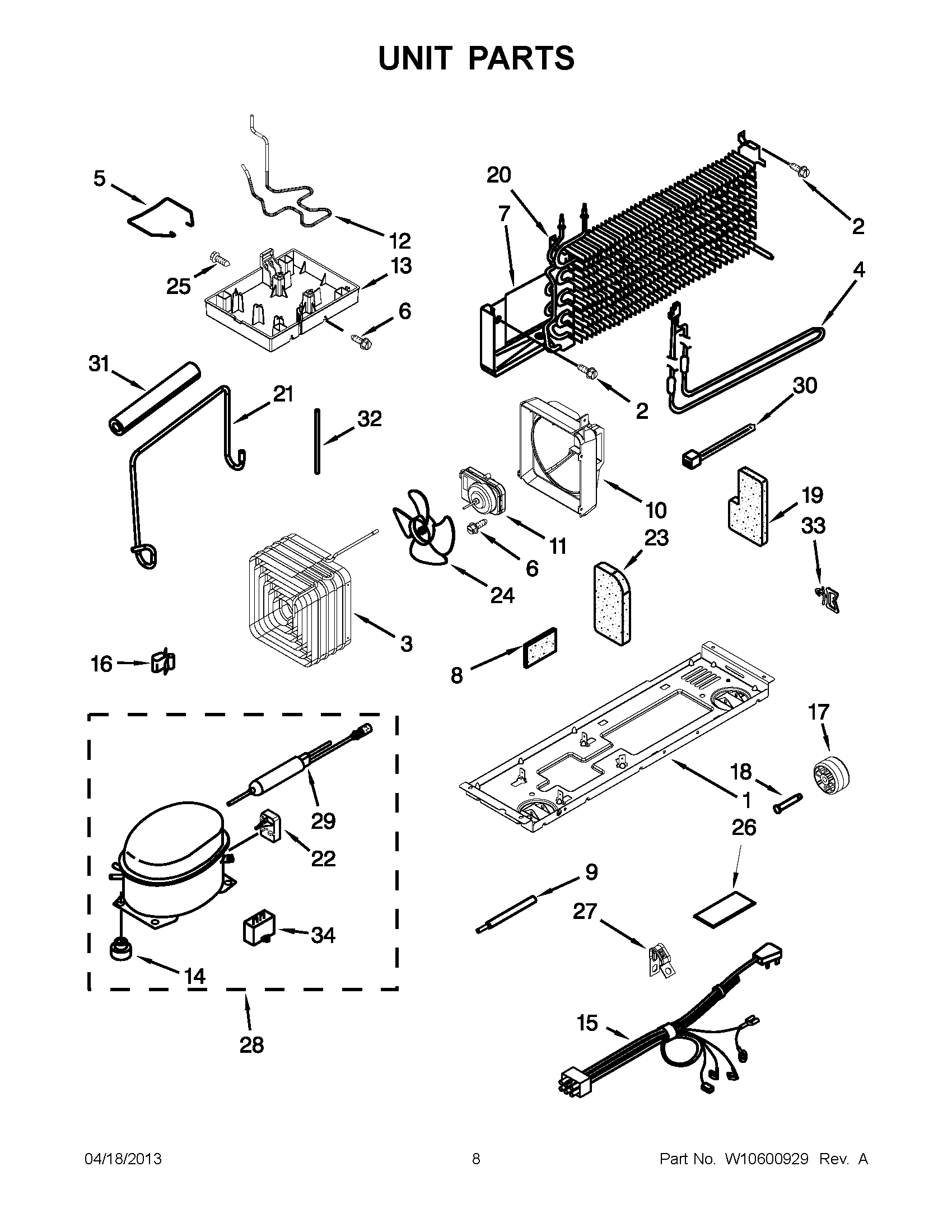

M8RXEGMAW01 04 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10222450
2	MAY 489442
3	MAY 2264004
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	MAY 2215468
9	MAY VS20001
10	AIR BAFFLE
11	MOTOR, CONDENSOR
12	TUBE, DISCHARGE (INCL. PRE-COOLER)
13	Evaporating Tray
14	Grommet (Production)
15	Wire Assy. Unit
16	MAY 939054
17	MAY W10475495
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	MAY W10524963
22	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	SHIELD-ELECTRICAL
27	MAY 549193
28	MAY W10527293
29	DRIER (PRODUCTION)
30	MAY 2263990
31	MAY 2264838
32	MAY 2264278
33	CLIP-HARNESS
34	Capacitator (Production)
