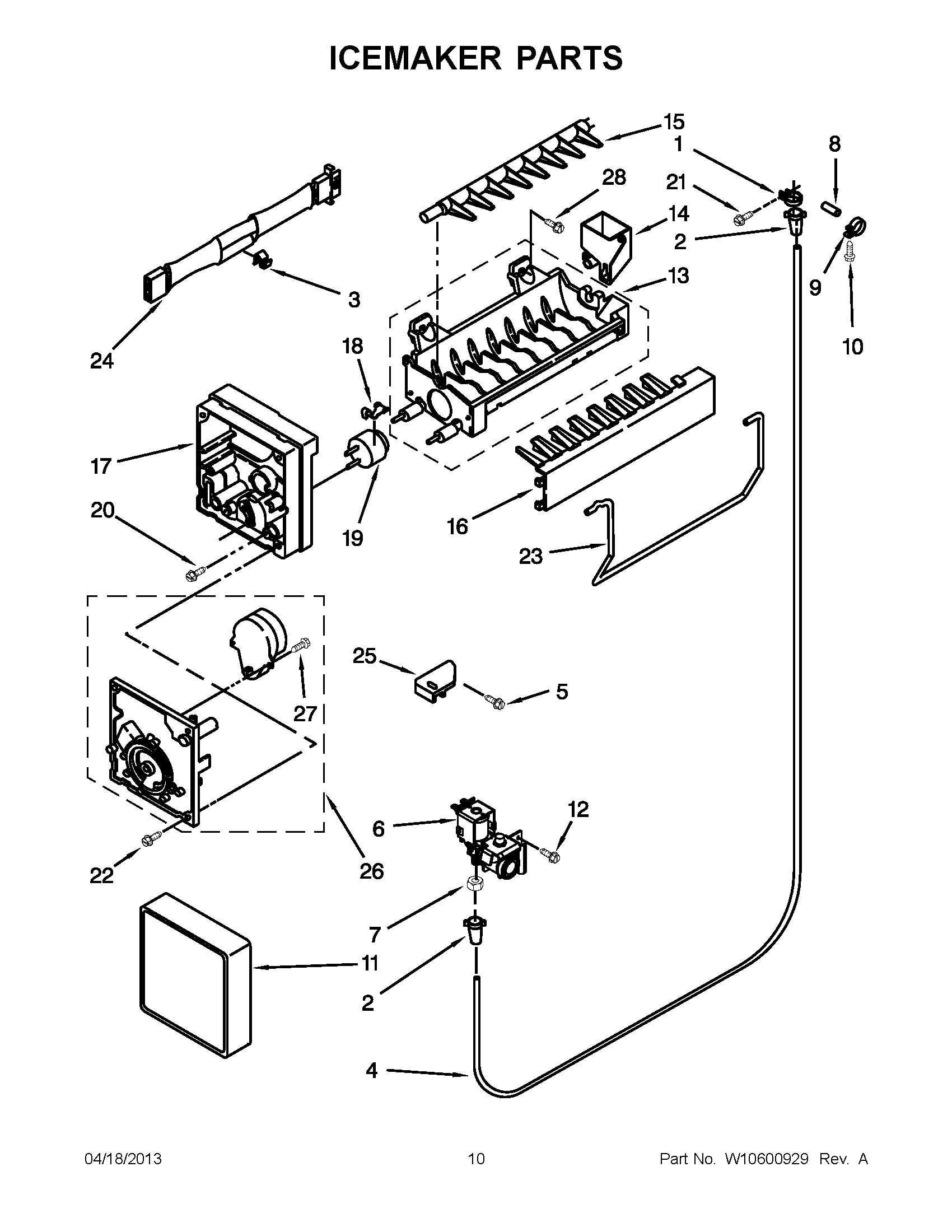

M8RXEGMAW01 05 – ICEMAKER PARTS

Products

Position	Product
1	MAY 488878
2	MAY 2181939
3	Clip
4	TUBE WATER
5	MAY 489478
6	Valve Solenoid (Single)
7	MAY 627018
8	MAY 2174755
9	CLIP, TUBE
10	MAY 2262176
11	COVER
12	MAY 489442
13	MAY W10122527
14	MAY W10435665
15	MAY 627843
16	ICE STRIPPER
17	MAY 2194712
18	MAY 2315522
19	Thermostat (Also Order 542369 Cement Alumilastic)
20	Screw (2)
21	MAY 488886
22	MAY 489276
23	MAY 627792
24	ASSEMBLY, ICE MAKER WIRE
25	MAY 628320
26	MODULE ASSEMBLY (INCLUDES ITEM 24)
27	MAY 489136
28	Screw
100	MAY W10190952
