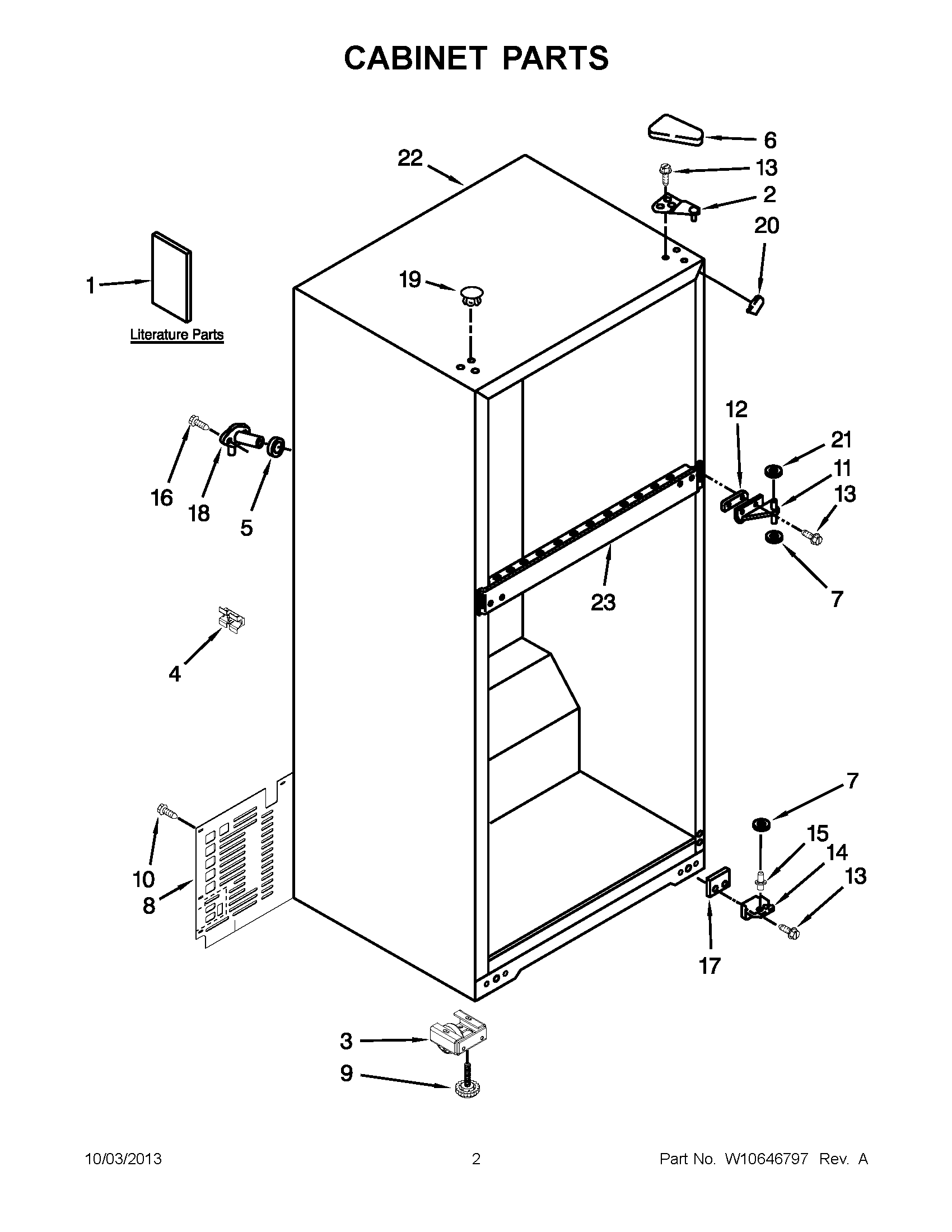

M8RXEGMAW02 02 – CABINET PARTS

Products

Position	Product
NI	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10344152
1	MAY W10214132
1	MAY W10504134
2	MAY 2261963
3	ROLLER, FRONT
4	SPACER, BACK CB
5	Seal
6	Cover, Hinge (White)
6	MAY 2213363
7	Washer (1/16)
8	MAY W10626437
9	LEVELER SCREW
10	MAY 489442
11	MAY 2166086
12	SHIM, HINGE CENTER (WHITE)
12	SHIM, CENTER HINGE (BLACK)
13	MAY 489497
14	Hinge Butt, Btm
15	Hinge-Pin, Btm
16	MAY 2262176
17	MAY 2201567
18	FITTING, WATER TUBE
19	MAY W10520304
19	HOLE PLUG (BLACK)
20	Corner Filler (Black)
20	Corner Filler
21	WASHER, PLASTIC
23	LINER (NOT A SERVICEABLE PART)
