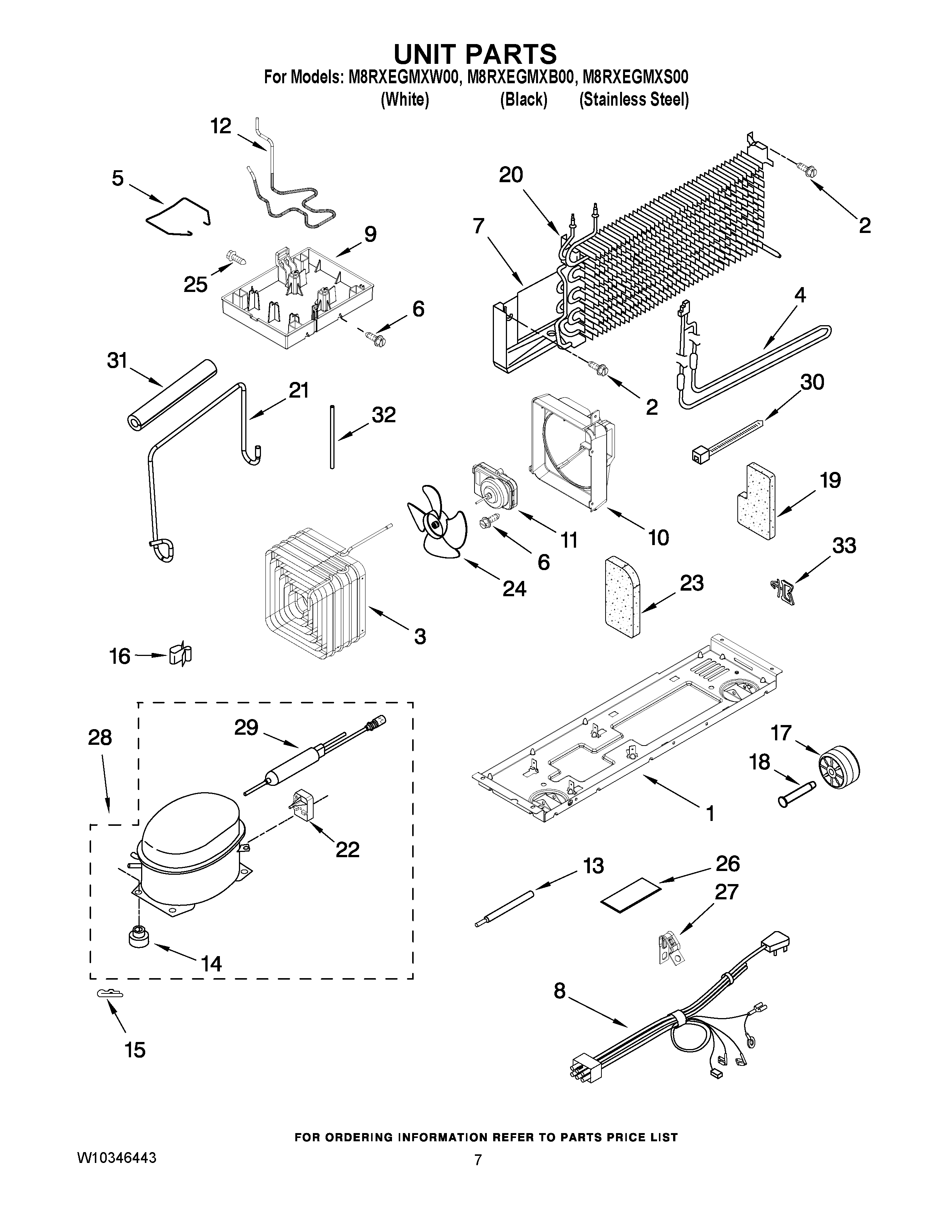

M8RXEGMXB00 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY W10222450
2	MAY 489442
3	MAY W10140200
4	MAY 2176942
5	MAY 2264835
6	MAY 8533859
7	MAY 2319224
8	WIRE ASSY, UNIT
9	Evaporating Tray
10	MAY 2263929
11	MAY 2188875
12	TUBE, DISCHARGE (INCL.PRE COOLER)
13	PROCESS TUBE
14	Grommet (Production)
15	MAY 24364001
16	MAY 939054
17	Roller
18	RIVET, AXLE
19	Wedge-Evap.
20	EVAPORATOR ASSY
21	MAY W10209727
22	MAY W10233421
23	MAY 2262192
24	MAY 2264129
25	MAY 2264841
26	SHIELD-ELECTRICAL
27	MAY 549193
28	COMPRESSOR (INCLUDES ITEMS 14, 22, & 29)
29	DRIER (PRODUCTION)
29	Drier
30	MAY 2263990
31	MAY 2264838
32	MAY 2264278
33	CLIP-HARNESS
