M8RXEGMXS00 01 – CABINET PARTS – Aparts

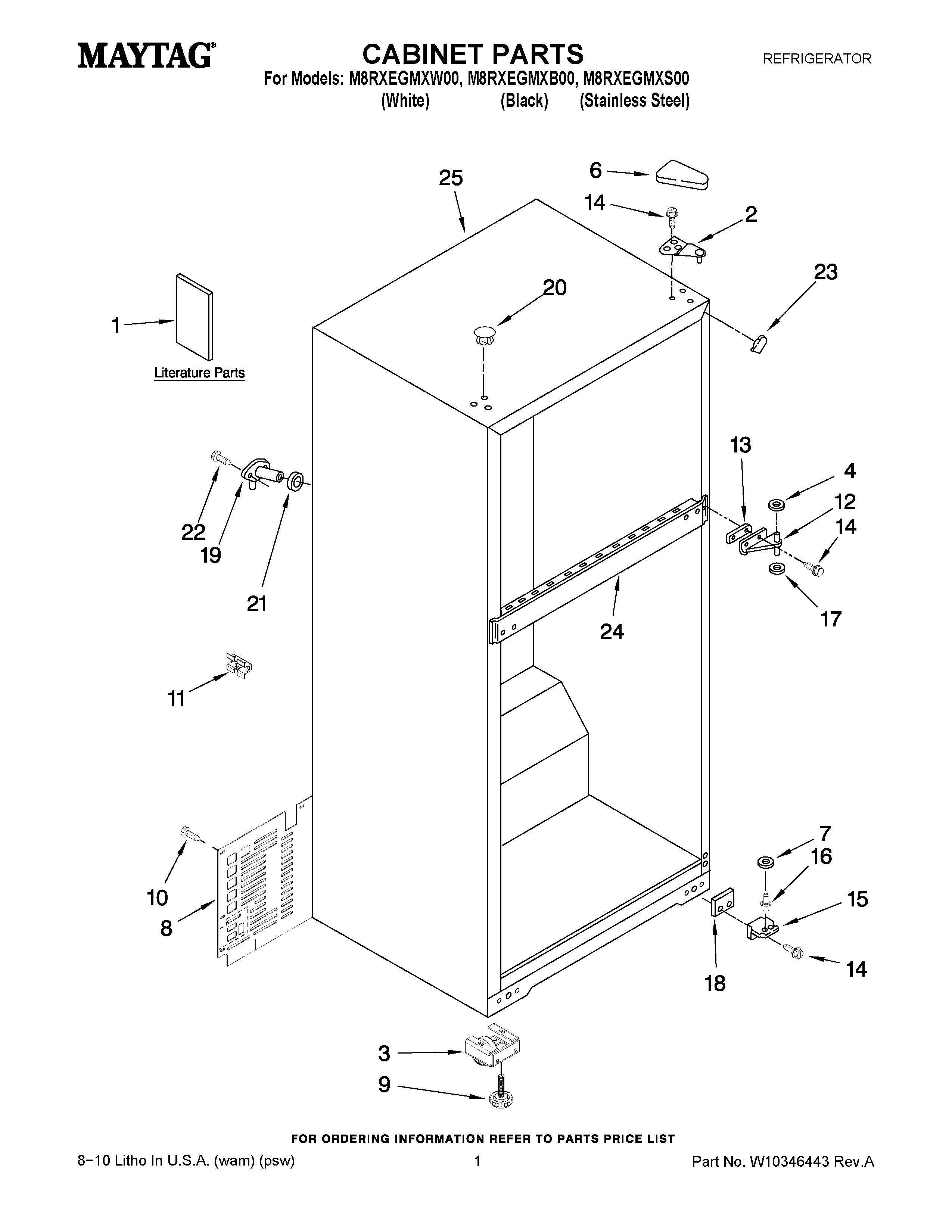

M8RXEGMXS00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10309663
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10214132
1	MAY W10223141
2	MAY 2261963
3	ROLLER, FRONT
4	WASHER, PLASTIC
6	Cover, Hinge (White)
6	MAY 2213363
8	MAY 2266389
9	LEVELER SCREW
10	MAY 489442
11	SPACER, BACK CB
12	MAY 2166086
13	SHIM, HINGE CENTER (WHITE)
13	SHIM, CENTER HINGE (BLACK)
14	MAY 489497
15	Hinge Butt, Btm
16	Hinge-Pin, Btm
17	Washer (1/16)
18	MAY 2201567
19	MAY 2174760
20	HOLE PLUG
20	MAY 2183998
21	Seal
22	MAY 2262176
23	Corner Filler
23	Corner Filler (Black)
25	LINER (NOT A SERVICEABLE PART)
