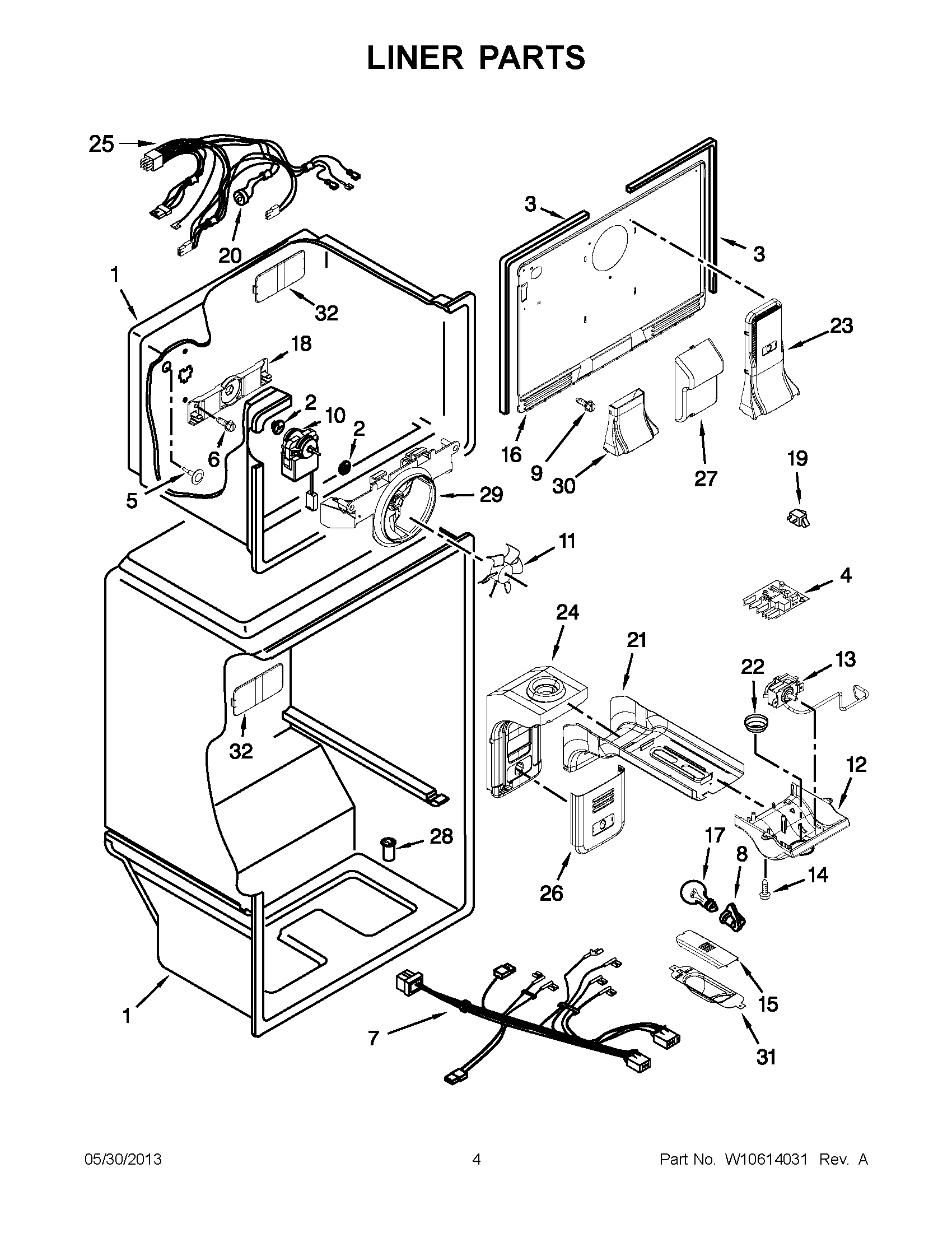

M8TXEGFBB00 02 – LINER PARTSadmin2025-04-26T13:12:23+00:00M8TXEGFBB00 02 – LINER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | MAY 2197380 |
| 3 | GASKET, EVAPORATOR COVER |
| 4 | ELEC. CONTROL, DEFROST |
| 5 | MAY 941839 |
| 6 | Screw |
| 7 | WIRE ASSY. CONTROL BOX |
| 8 | Socket, Light |
| 9 | SCREW (WHITE) |
| 10 | MAY W10208121 |
| 11 | MAY 2200509 |
| 12 | CONTROL BOX |
| 13 | THERMOSTAT ASSEMBLY |
| 14 | MAY 489174 |
| 15 | LIGHT COVER, RC |
| 16 | COVER-EVAPORATOR |
| 17 | LIGHT BULB |
| 18 | Bracket, Fan Back |
| 19 | MAY 1118894 |
| 20 | DEFROST, BI-METAL |
| 21 | MAY W10305175 |
| 22 | KNOB |
| 23 | TOWER, AIR |
| 24 | AIR DIFFUSER ASSEMBLY |
| 25 | WIRE ASSEMBLY, FREEZER COMPARTMENT (INCLUDES ITEM 15) |
| 26 | MAY W10310927 |
| 27 | MAY W10339203 |
| 28 | MAY 2210509 |
| 29 | MAY W10321162 |
| 30 | ASSEMBLY, TOWER CONNECTION |
| 31 | MAY W10300161 |
| 32 | CUP, SCREW |
