M8TXEGFBB01 03 – LINER PARTS
Written by
in

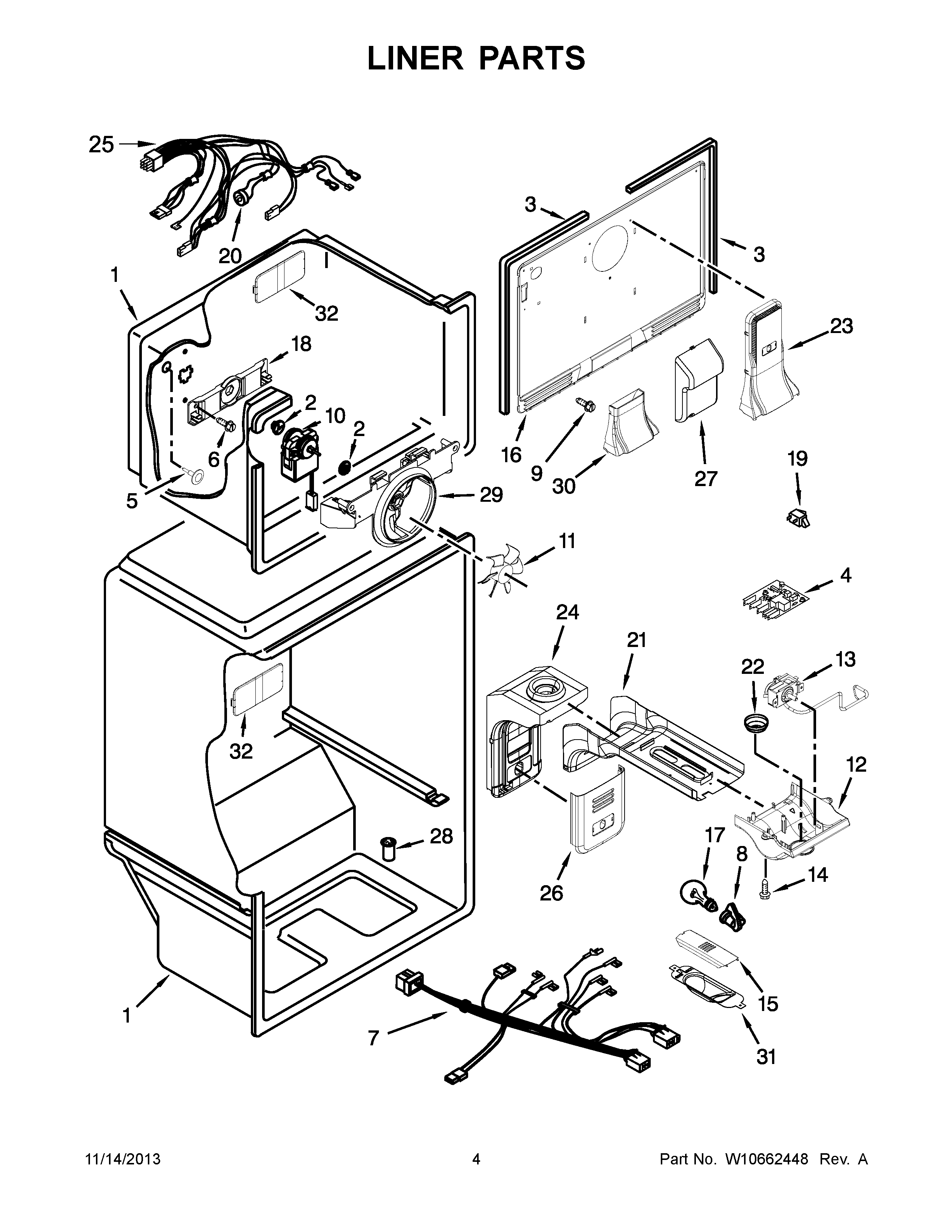

M8TXEGFBB01 03 – LINER PARTS
Products
Position
Product
1
LINER (NOT A SERVICEABLE PART)
2
MAY 2197380
3
GASKET, EVAPORATOR COVER
4
ELEC. CONTROL, DEFROST
5
MAY 941839
6
Screw
7
WIRE ASSY. CONTROL BOX
8
Socket, Light
9
SCREW (WHITE)
10
MAY 2315539
11
MAY 2200509
12
CONTROL BOX
13
THERMOSTAT ASSEMBLY
14
MAY 489174
15
LIGHT COVER, RC
16
COVER-EVAPORATOR
17
LIGHT BULB
18
Bracket, Fan Back
19
MAY 1118894
20
DEFROST, BI-METAL
21
MAY W10305175
22
KNOB
23
TOWER, AIR
24
AIR DIFFUSER ASSEMBLY
25
MAY W10339627
26
MAY W10310927
27
MAY W10339203
28
MAY 2210509
29
MAY W10321162
30
ASSEMBLY, TOWER CONNECTION
31
MAY W10300161
32
CUP, SCREW
←
