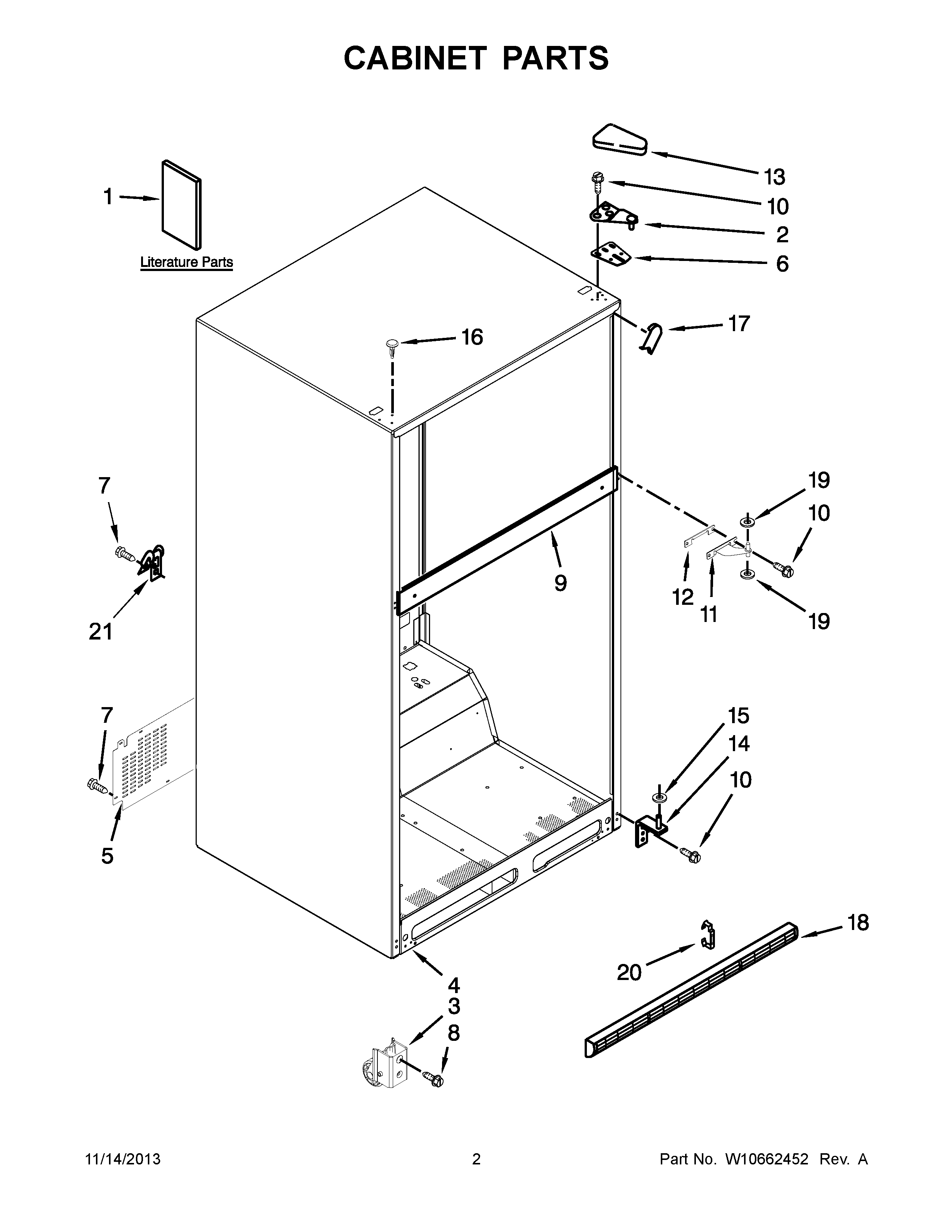

M8TXEGFBS02 02 – CABINET PARTS

Products

Position	Product
1	MAY W10580777
1	MAY W10551695
1	SERVICE & WIRING SHEET
2	MAY 2261963
3	ROLLER, FRONT
5	MAY W10384413
6	SHIM, TOP HINGE
7	MAY 2262176
8	MAY 3400517
9	LINER (NOT A SERVICEABLE PART)
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	MAY 2213363
14	MAY 2254473
15	Washer (1/16)
16	HOLE PLUG (BLACK)
17	CORNER FILLER (BLACK)
18	Grille (Includes Illus. 4 & 22) (Black)
19	WASHER, PLASTIC
20	MAY 2189356
20	MAY 2254385
21	MAY 549193
