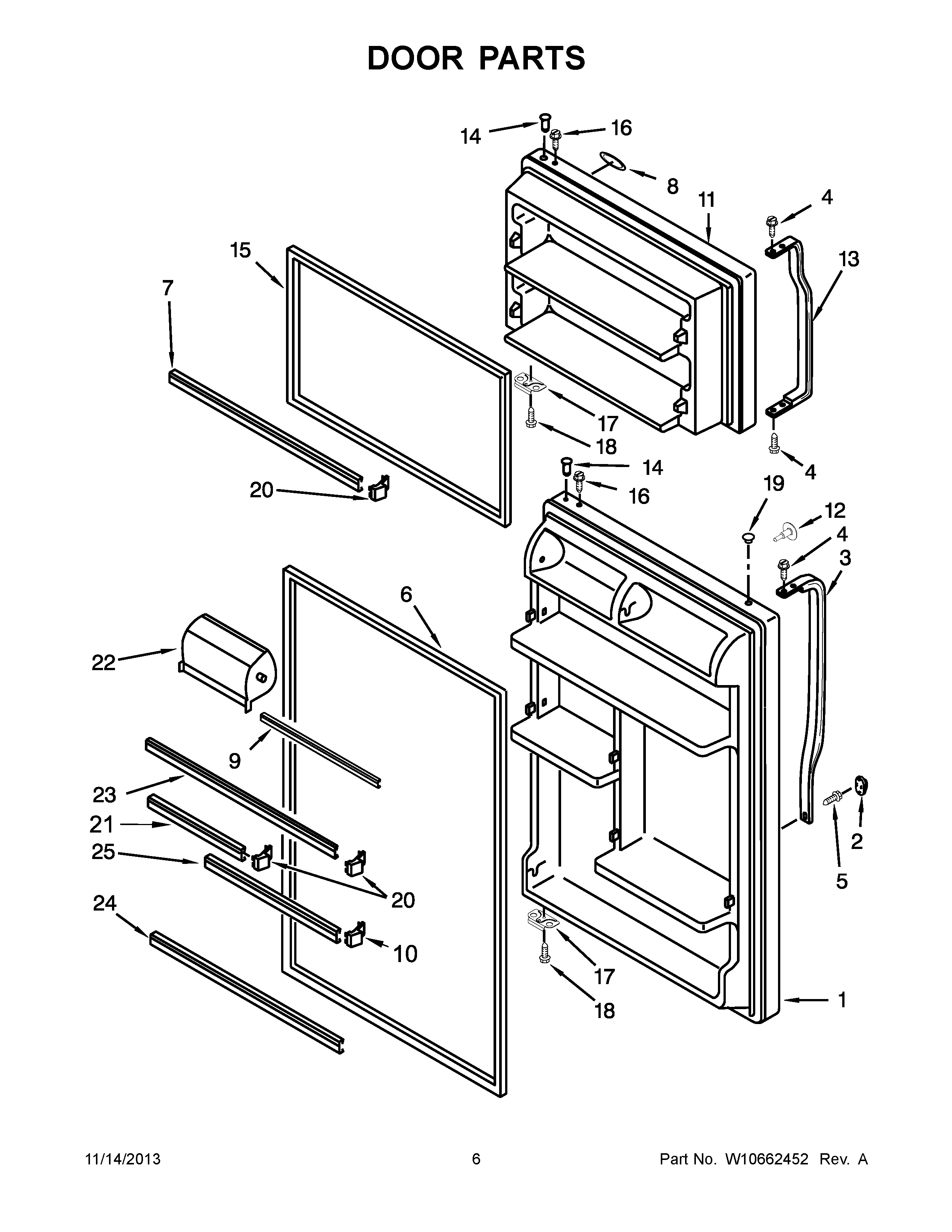

M8TXEGFBS02 04 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 6) (STAINLESS)
2MAY 2193143B
3MAY 2254533B
4MAY 489357
5MAY 8281146
6MAY 2202881
7MAY W10463615
8Nameplate
9MAY W10421482
10TRIM ENDCAP
11FREEZER DOOR (INCLUDES ILLUS. 15) (STAINLESS)
12MAY 2189009
13MAY W10292303
14MAY 2314293
15MAY 2214968
16MAY 8281206
17MAY 2189202
18MAY 488921
19Hole Plug (Black)
20END CAP, TRIM
21MAY W10463613
22DOOR, COMPARTMENT
23MAY W10464028
24MAY W10421484
25MAY W10463614
