M8TXEGFBW01 03 – LINER PARTS – Aparts

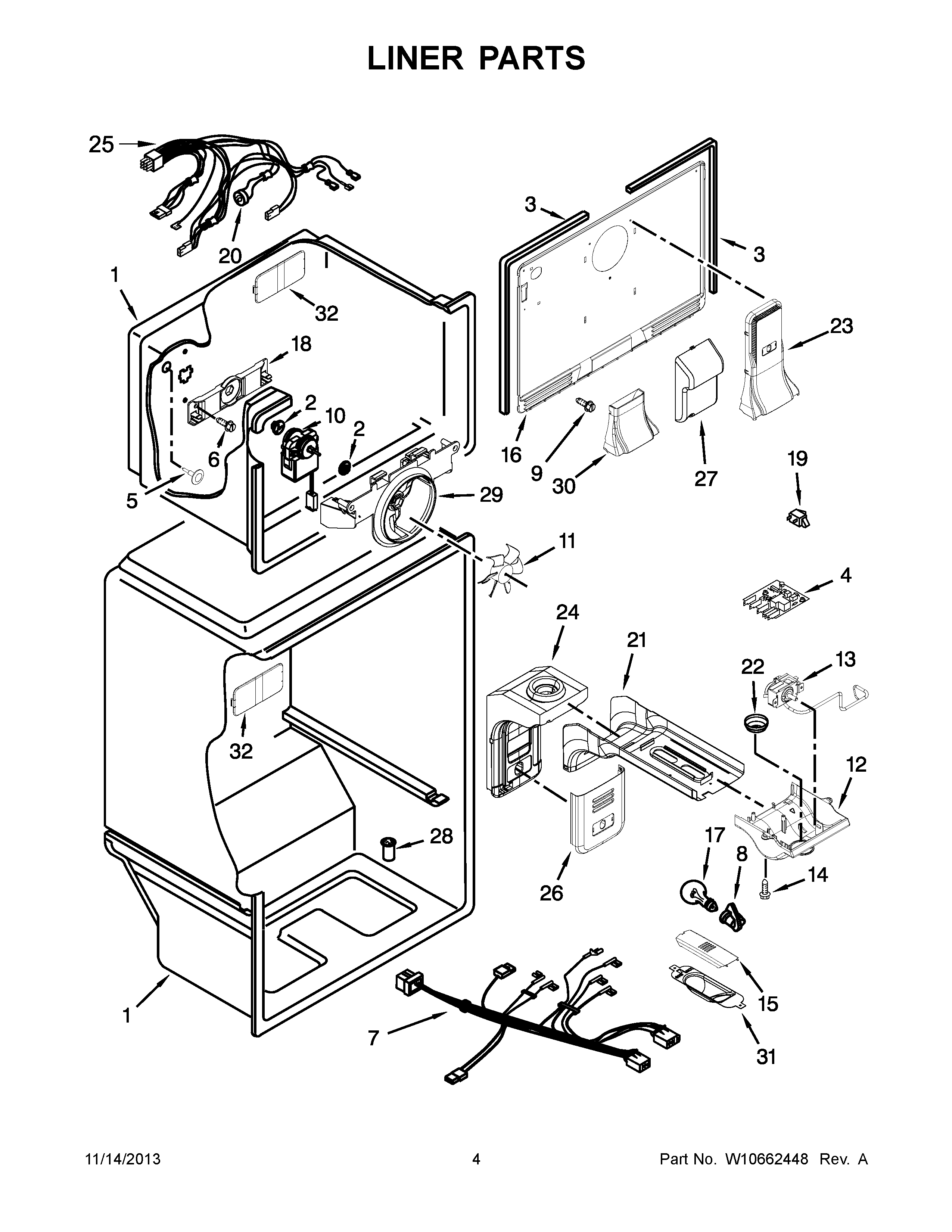

M8TXEGFBW01 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	GASKET, EVAPORATOR COVER
4	ELEC. CONTROL, DEFROST
5	MAY 941839
6	Screw
7	WIRE ASSY. CONTROL BOX
8	Socket, Light
9	SCREW (WHITE)
10	MAY 2315539
11	MAY 2200509
12	CONTROL BOX
13	THERMOSTAT ASSEMBLY
14	MAY 489174
15	LIGHT COVER, RC
16	COVER-EVAPORATOR
17	LIGHT BULB
18	Bracket, Fan Back
19	MAY 1118894
20	DEFROST, BI-METAL
21	MAY W10305175
22	KNOB
23	TOWER, AIR
24	AIR DIFFUSER ASSEMBLY
25	MAY W10339627
26	MAY W10310927
27	MAY W10339203
28	MAY 2210509
29	MAY W10321162
30	ASSEMBLY, TOWER CONNECTION
31	MAY W10300161
32	CUP, SCREW
