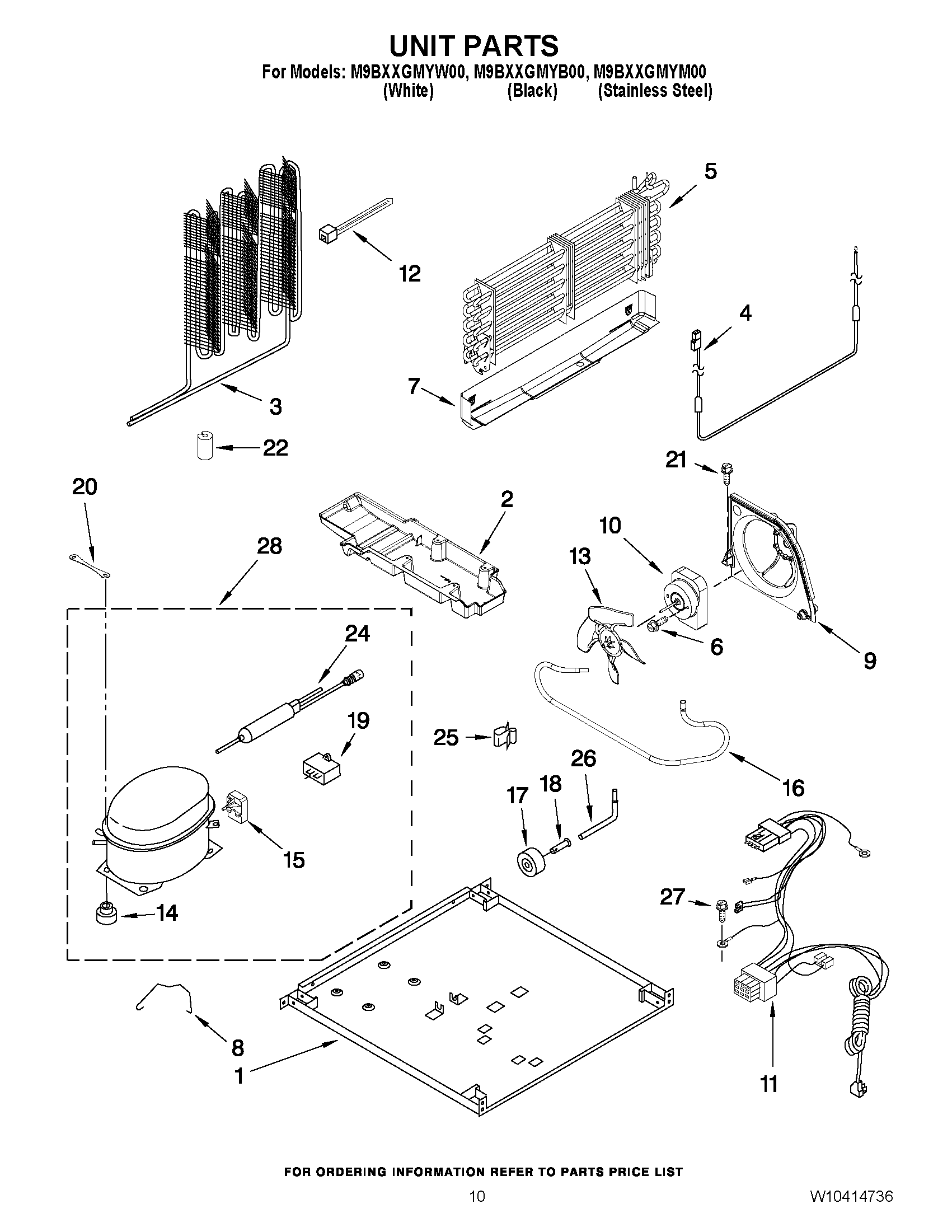

M9BXXGMYB00 06 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY W10300116
2	MAY W10466213
3	CONDENSER
4	MAY W10316428
5	EVAPORATOR ASSY.
7	MAY W10314195
8	MAY W10174384
9	MAY 2315541
10	MOTOR, CONDENSOR
11	ASSEMBLY, UNIT WIRE
12	MAY 2263990
13	MAY W10139483
14	Grommet (Production)
14	GROMMET
15	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
16	MAY W10319864
17	Roller
18	MAY 2179826
19	Capacitator (Production)
19	CAPACITATOR (SERVICE)
20	MAY W10236396
21	MAY 8533961
22	GROMMET, CONDENSER
24	Drier
24	Drier
25	MAY 2326941
26	MAY W10274306
27	MAY 488500
28	MAY W10164016
