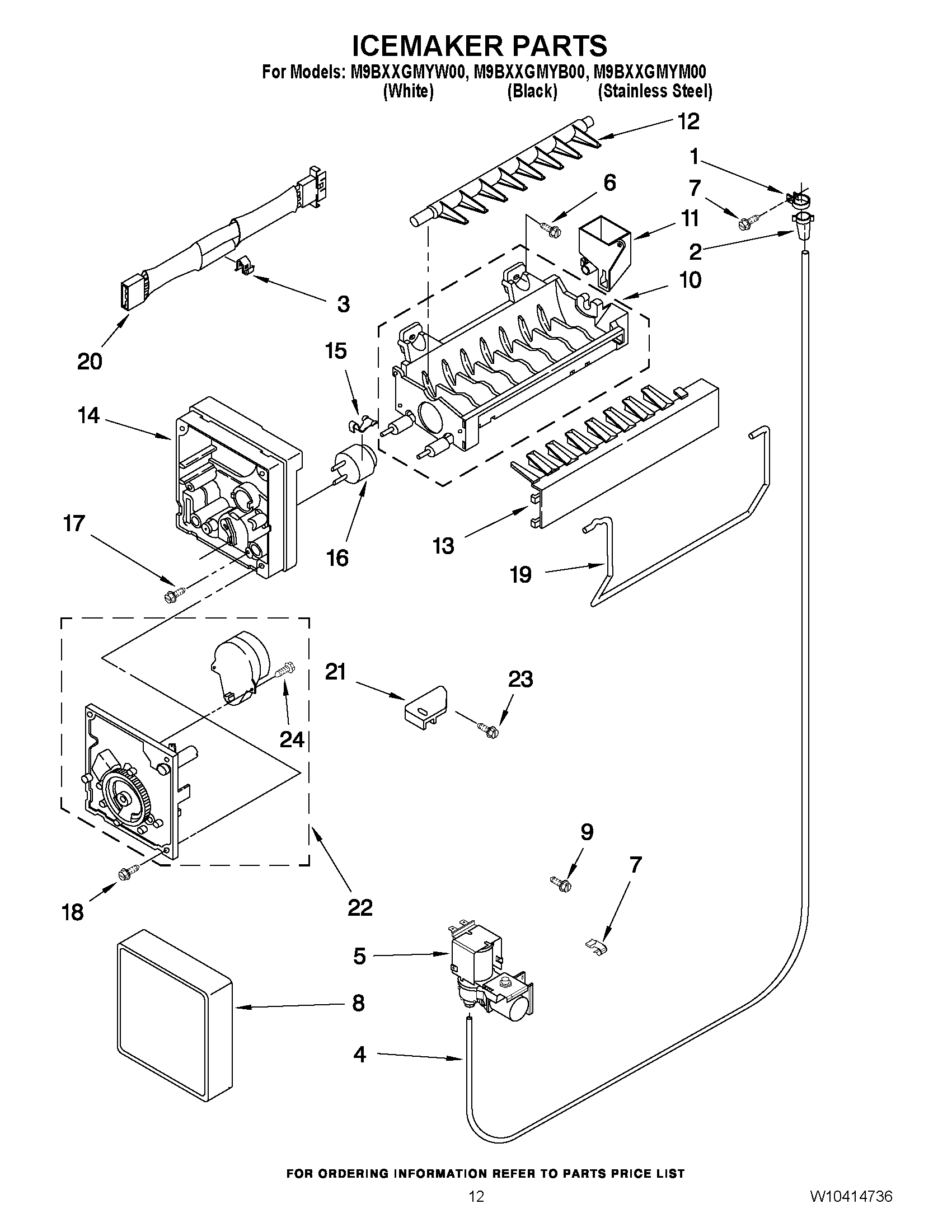

M9BXXGMYB00 07 – ICEMAKER PARTS

Products

Position	Product
1	MAY 488878
2	MAY 2181939
3	Clip
4	TUBE WATER
5	MAY W10279909
6	Screw
7	MAY 488886
8	COVER
9	MAY 489442
10	MAY W10122527
11	MAY W10122561
12	MAY 627843
13	ICE STRIPPER
14	MAY 2194712
15	MAY 2315522
16	MAY W10290336
17	MAY 8533917
18	MAY 489276
19	MAY 627792
20	MAY W10309399
21	MAY 628320
22	MODULE ASSEMBLY (INCLUDES ITEM 24)
23	MAY 489478
24	MAY 489136
100	MAY W10190952
