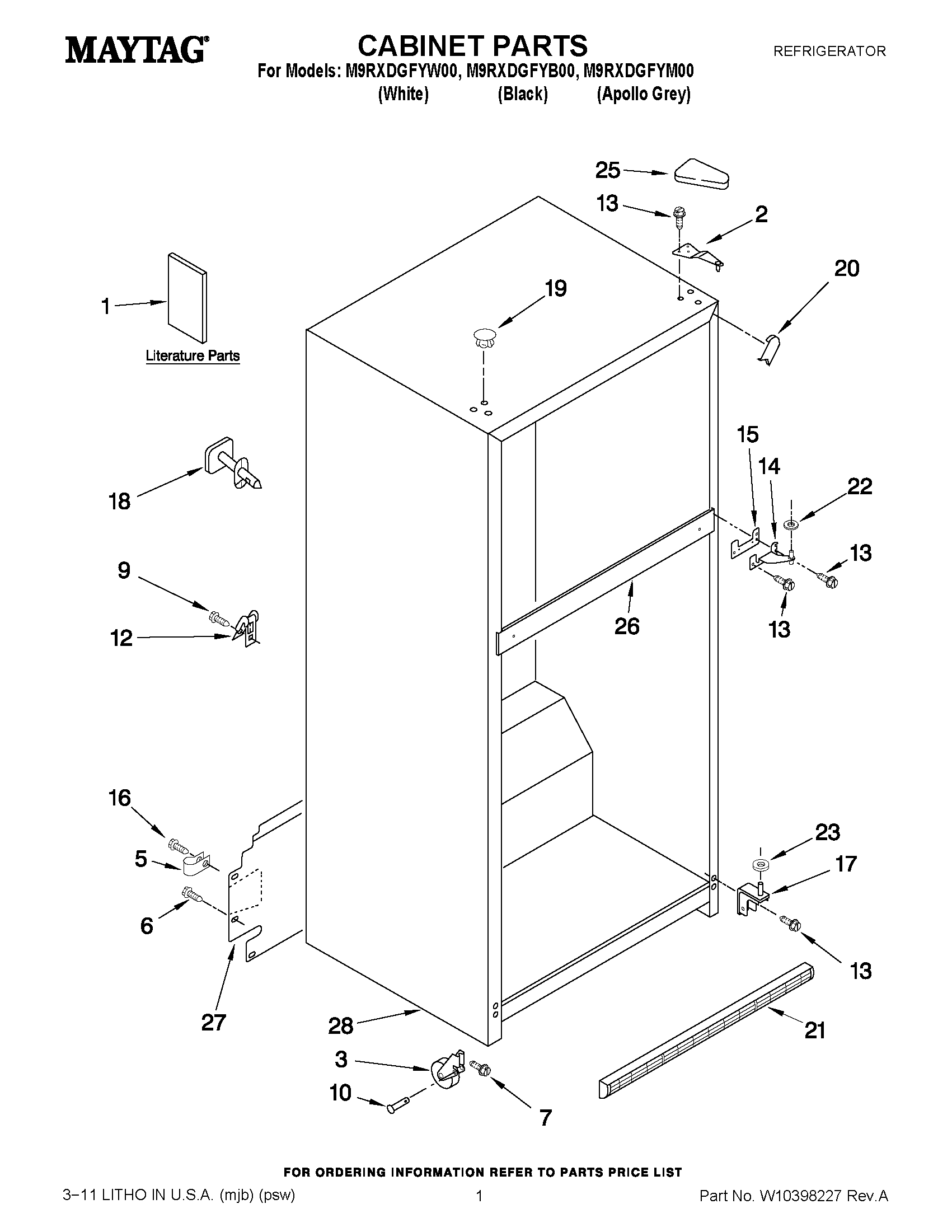

M9RXDGFYB00 01 – CABINET PARTSadmin2025-04-26T13:11:03+00:00M9RXDGFYB00 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10359298 |
| 1 | DO-IT-YOURSELF MANUAL REF./ FRZ. |
| 1 | MAY W10360533 |
| 1 | MAY W10142085 |
| 1 | MAY W10142142 |
| 2 | MAY W10300069 |
| 3 | MAY 2166108 |
| 5 | CLAMP, TUBE |
| 6 | MAY 489427 |
| 7 | MAY 3400504 |
| 9 | MAY 489442 |
| 10 | MAY 2221797 |
| 12 | MAY 549193 |
| 13 | MAY 489497 |
| 14 | MAY 2254618 |
| 15 | MAY 2183852 |
| 16 | MAY 8281265 |
| 17 | MAY 2254473 |
| 19 | PLUG, HOLE (GREY) |
| 19 | MAY 2183998 |
| 19 | HOLE PLUG |
| 20 | CORNER FILLER (WHITE) |
| 20 | FILLER, CORNER (GREY) |
| 20 | CORNER FILLER (BLACK) |
| 21 | GRILLE (INCLUDES ILLUS. 4 & 24) (BLACK) |
| 21 | MAY W10353938 |
| 21 | MAY W10326386 |
| 22 | WASHER, PLASTIC |
| 23 | Washer (1/16) |
| 25 | COVER, HINGE (LEFT HAND (GREY)) |
| 25 | COVER, HINGE (RIGHT HAND (GREY)) |
| 25 | COVER, HINGE (WHITE, RS) |
| 25 | COVER, HINGE (WHITE, LS) |
| 25 | COVER, HINGE (BLACK, RS) |
| 25 | COVER, HINGE (BLACK, LS) |
| 27 | MAY W10384413 |
| 28 | LINER (NOT A SERVICEABLE PART) |
