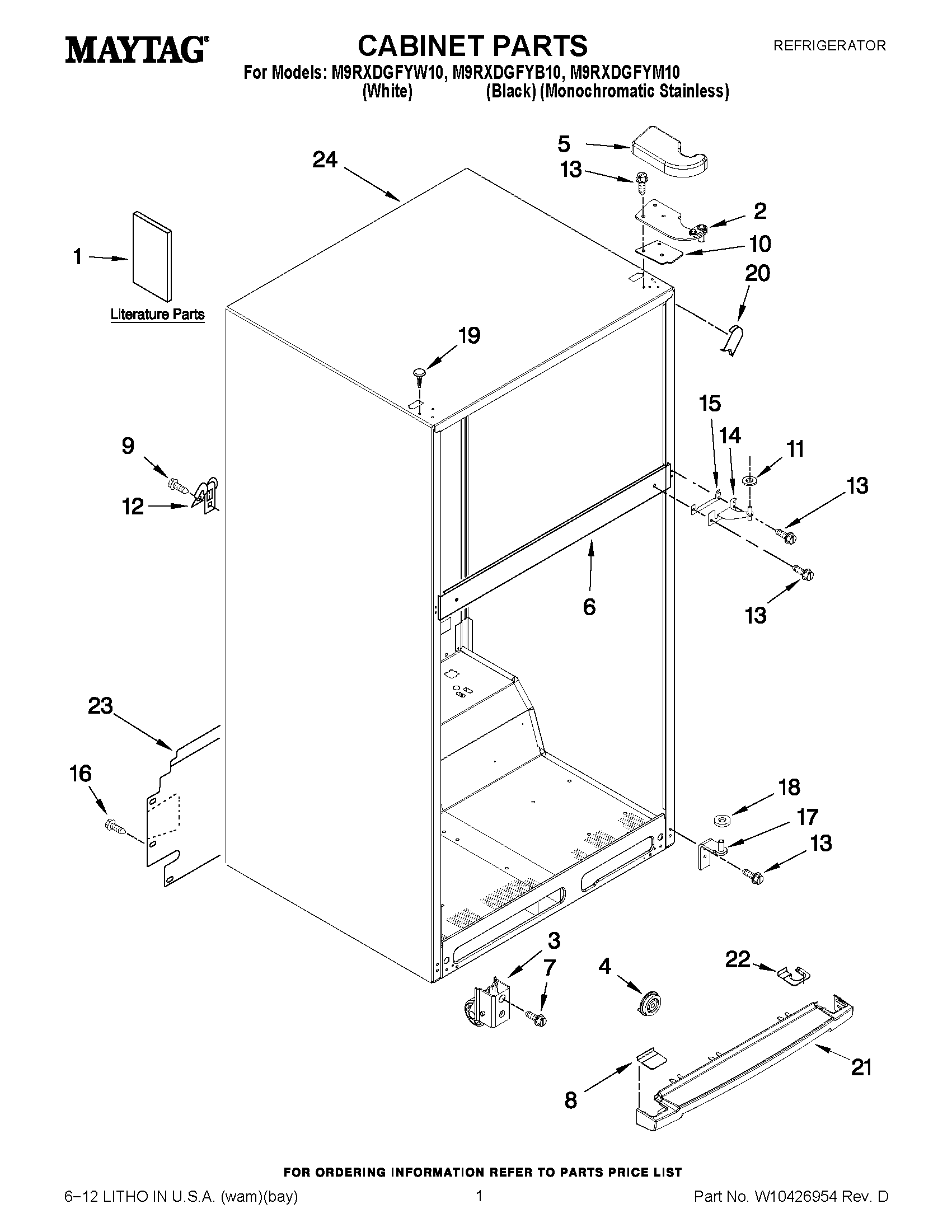

M9RXDGFYB10 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	MAY W10414768
1	MAY W10360533
2	MAY W10337503
2	HINGE (TOP)
3	ROLLER, FRONT
4	DRUM, TOE GRILLE
5	COVER, HINGE (LEFT HAND (GREY))
5	COVER, HINGE (WHITE, LS)
5	COVER, HINGE (BLACK, LS)
5	COVER, HINGE (BLACK, RS)
5	COVER, HINGE (WHITE, RS)
5	COVER, HINGE (RIGHT HAND (GREY))
7	MAY 3400517
8	ENDCAP, GRILLE (BLACK)
8	COVER, TOE GRILLE (GREY)
8	ENDCAP, GRILLE (WHITE)
9	MAY 489442
10	MAY W10338247
11	WASHER, PLASTIC
12	MAY 549193
13	MAY 489497
14	MAY 2254618
15	MAY 2183852
16	MAY 8281265
17	MAY 2254473
18	Washer (1/16)
19	HOLE PLUG
19	PLUG, HOLE (GREY)
19	MAY 2183998
20	CORNER FILLER (BLACK)
20	CORNER FILLER (WHITE)
20	FILLER, CORNER (GREY)
21	MAY W10353938
21	MAY W10326386
21	GRILLE (INCLUDES ILLUS. 4 & 24) (BLACK)
22	ENDCAP, GRILLE HINGE (MIDNIGHT GREY)
22	ENDCAP, GRILLE HINGE (BLACK)
22	ENDCAP, GRILLE HINGE (WHITE)
23	MAY W10384413
24	LINER (NOT A SERVICEABLE PART)
