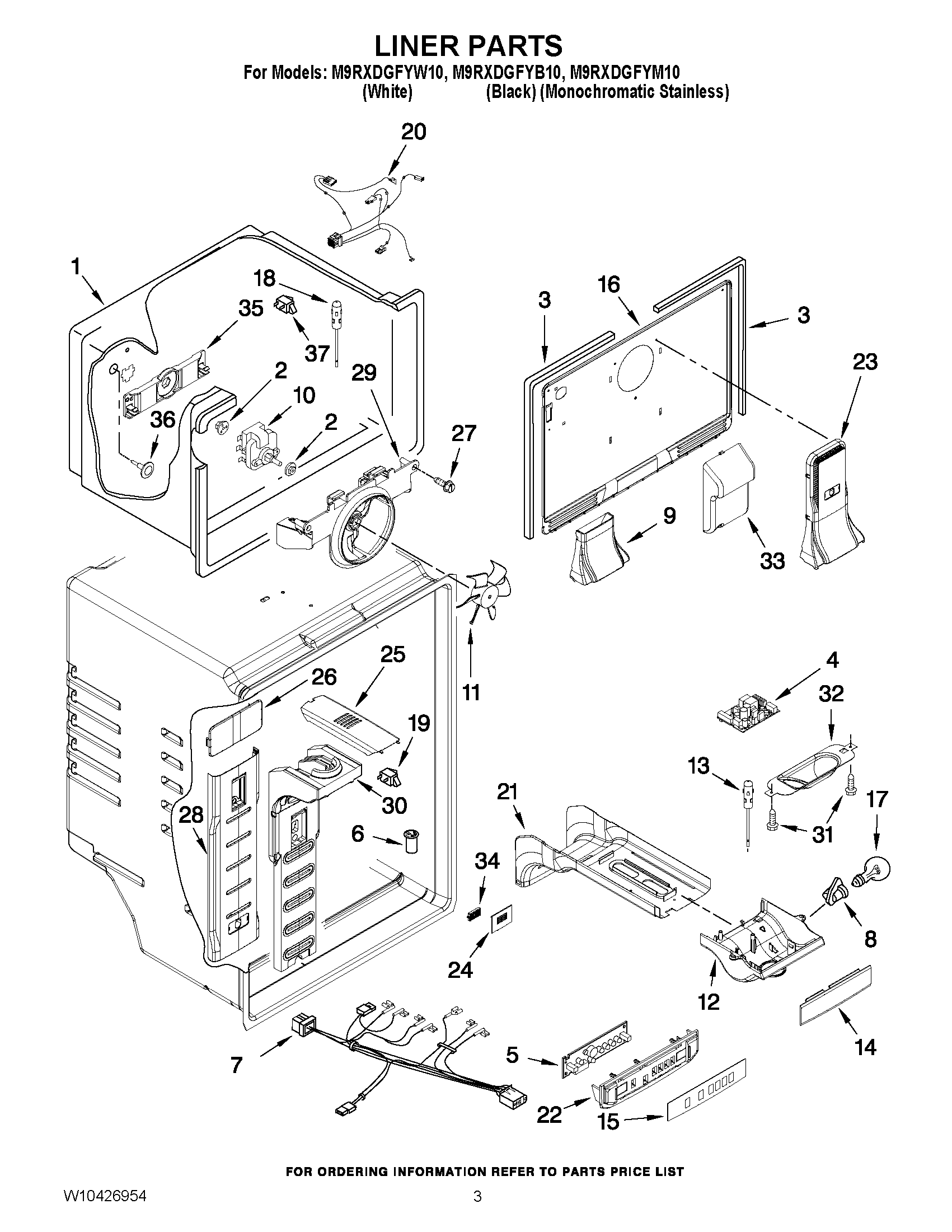

M9RXDGFYB10 02 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254359
4	CONTROL, ELECTRONIC (HERCULES)
5	MAY W10341559
6	MAY 2210509
7	MAY W10292528
8	Socket, Light
9	ASSEMBLY, TOWER CONNECTION
10	MAY 2315539
11	MAY 2200509
12	MAY W10316942
13	THERMISTOR
14	LENS, FASCIA
15	MAY W10356943
16	COVER-EVAPORATOR
17	LIGHT BULB
18	THERMISTOR, EVAPORATOR
19	MAY 1118894
20	WIRE ASSEMBLY, FREEZER COMPARTMENT
21	MAY W10305175
22	MAY W10383443
23	TOWER, AIR
24	GRILLE, AIR FILTER BOTTOM
25	LIGHT COVER, RC
26	CUP, SCREW
27	Screw
28	TOWER, MULTIFLOW AIR
29	MAY W10321162
30	AIR DIFFUSER BOTTOM
31	MAY 489174
32	MAY W10300161
33	MAY W10339203
34	FILTER, AIR
35	Bracket, Fan Back
36	MAY 941839
37	SWITCH, ROCKER ARM
