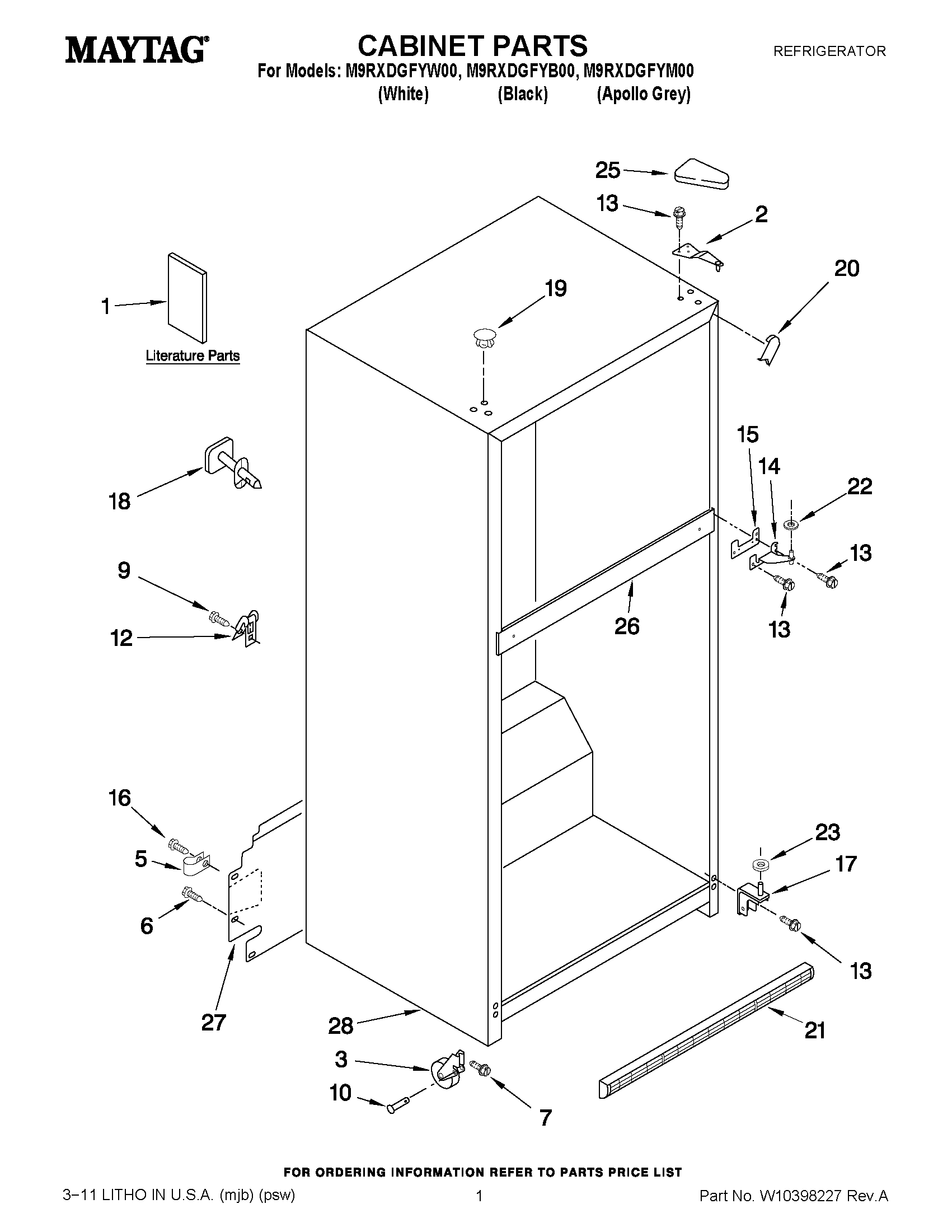

M9RXDGFYM00 01 – CABINET PARTS

M9RXDGFYM00 01 – CABINET PARTS

Written by

in

M9RXDGFYM00 01 – CABINET PARTS

Products

Position	Product
1	MAY W10359298
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10360533
1	MAY W10142085
1	MAY W10142142
2	MAY W10300069
3	MAY 2166108
5	CLAMP, TUBE
6	MAY 489427
7	MAY 3400504
9	MAY 489442
10	MAY 2221797
12	MAY 549193
13	MAY 489497
14	MAY 2254618
15	MAY 2183852
16	MAY 8281265
17	MAY 2254473
19	PLUG, HOLE (GREY)
19	MAY 2183998
19	HOLE PLUG
20	CORNER FILLER (WHITE)
20	FILLER, CORNER (GREY)
20	CORNER FILLER (BLACK)
21	GRILLE (INCLUDES ILLUS. 4 & 24) (BLACK)
21	MAY W10353938
21	MAY W10326386
22	WASHER, PLASTIC
23	Washer (1/16)
25	COVER, HINGE (LEFT HAND (GREY))
25	COVER, HINGE (RIGHT HAND (GREY))
25	COVER, HINGE (WHITE, RS)
25	COVER, HINGE (WHITE, LS)
25	COVER, HINGE (BLACK, RS)
25	COVER, HINGE (BLACK, LS)
27	MAY W10384413
28	LINER (NOT A SERVICEABLE PART)
