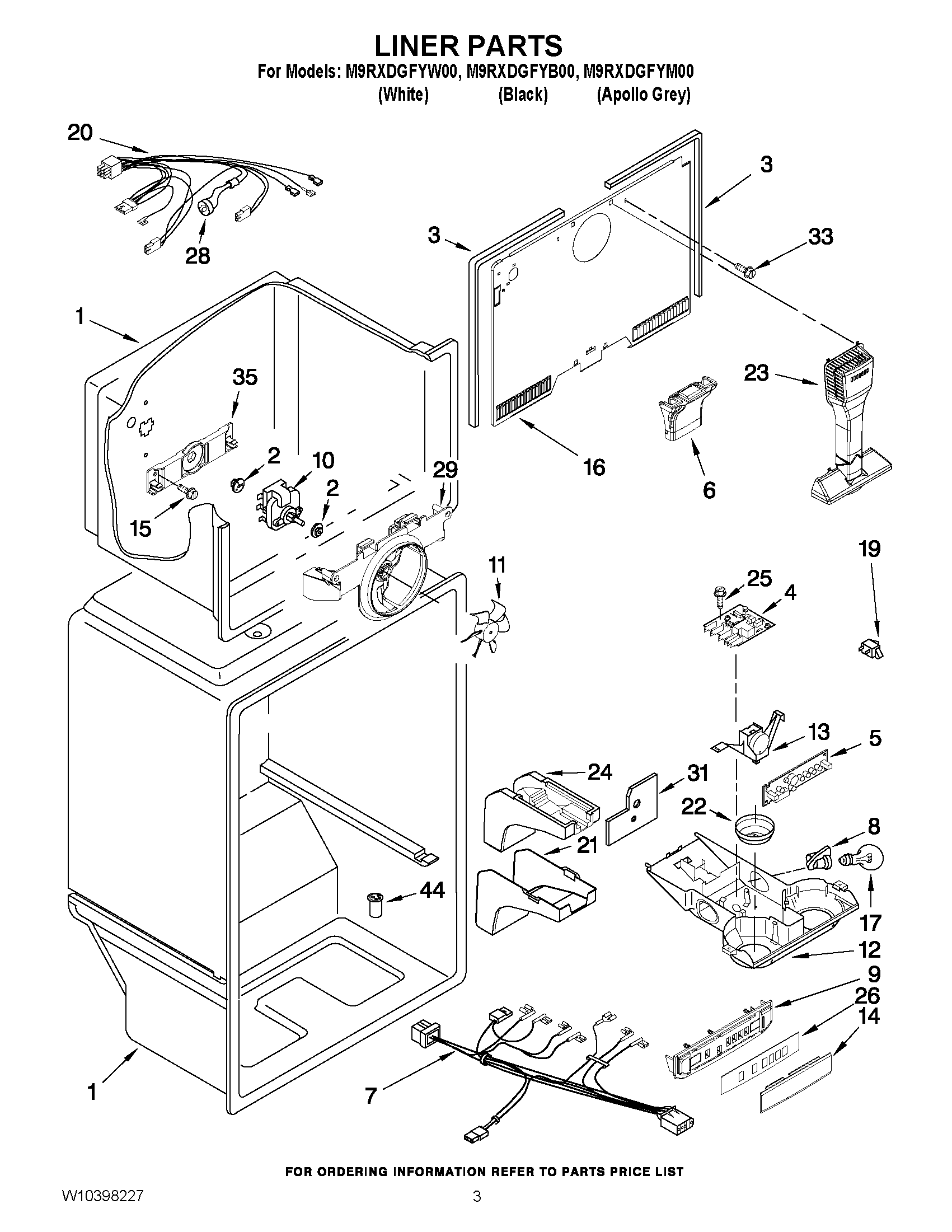

M9RXDGFYM00 02 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254359
4	CONTROL, ELECTRONIC (HERCULES)
5	MAY W10341559
6	ASSEMBLY, TOWER CONNECTION
7	MAY W10292528
8	Socket, Light
9	MAY W10383443
10	MAY W10208121
11	MAY 2200509
12	MAY W10316942
13	MAY W10268920
14	LENS, FASCIA
15	Screw
16	COVER-EVAPORATOR
17	LIGHT BULB
19	MAY 1118894
20	MAY W10336362
21	MAY W10305175
22	MAY 2202885
23	TOWER, AIR
24	MAY 2189452
25	MAY 8534009
26	MAY W10356943
28	MAY 2321800
29	Bracket,
31	MAY W10314195
33	MAY 489478
35	Bracket, Fan Back
44	MAY 2210509
