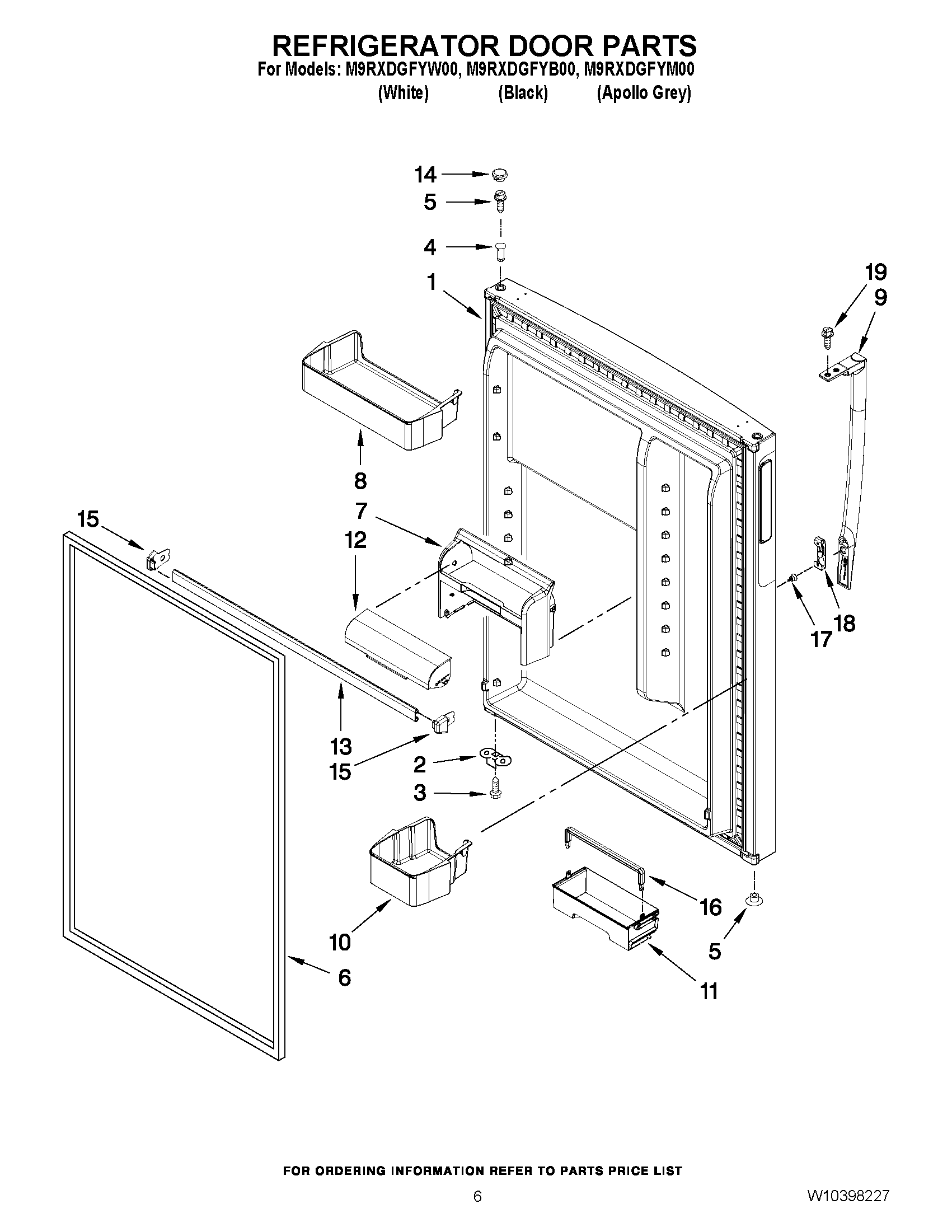

M9RXDGFYM00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (STAINLESS)
1	MAY W10329581
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8) (BLACK)
2	MAY 2189202
4	MAY W10334042
5	MAY 2212648
5	PLUG, HOLE (GREY)
5	Hole Plug (Black)
5	MAY 489276
6	DOOR GASKET, MAGNETIC (APOLLO GREY)
6	MAY 2202881
6	MAY 2202874
6	MAY 2183003
7	HOUSING COMPARTMENT
8	MAY W10331763
9	MAY W10327267
9	MAY W10351407
9	MAY W10365031
10	MAY W10331762
11	MAY W10338827
12	COMPARTMENT DOOR
13	MAY W10308872
14	MAY W10348220
14	MAY W10355196
14	MAY W10355197
14	MAY 2218109
15	ENDCAP, TRIM RS
15	ENDCAP, TRIM LS
16	MAY W10356443
17	STUD SCREW
18	MAY 2255411
19	MAY 8534058
