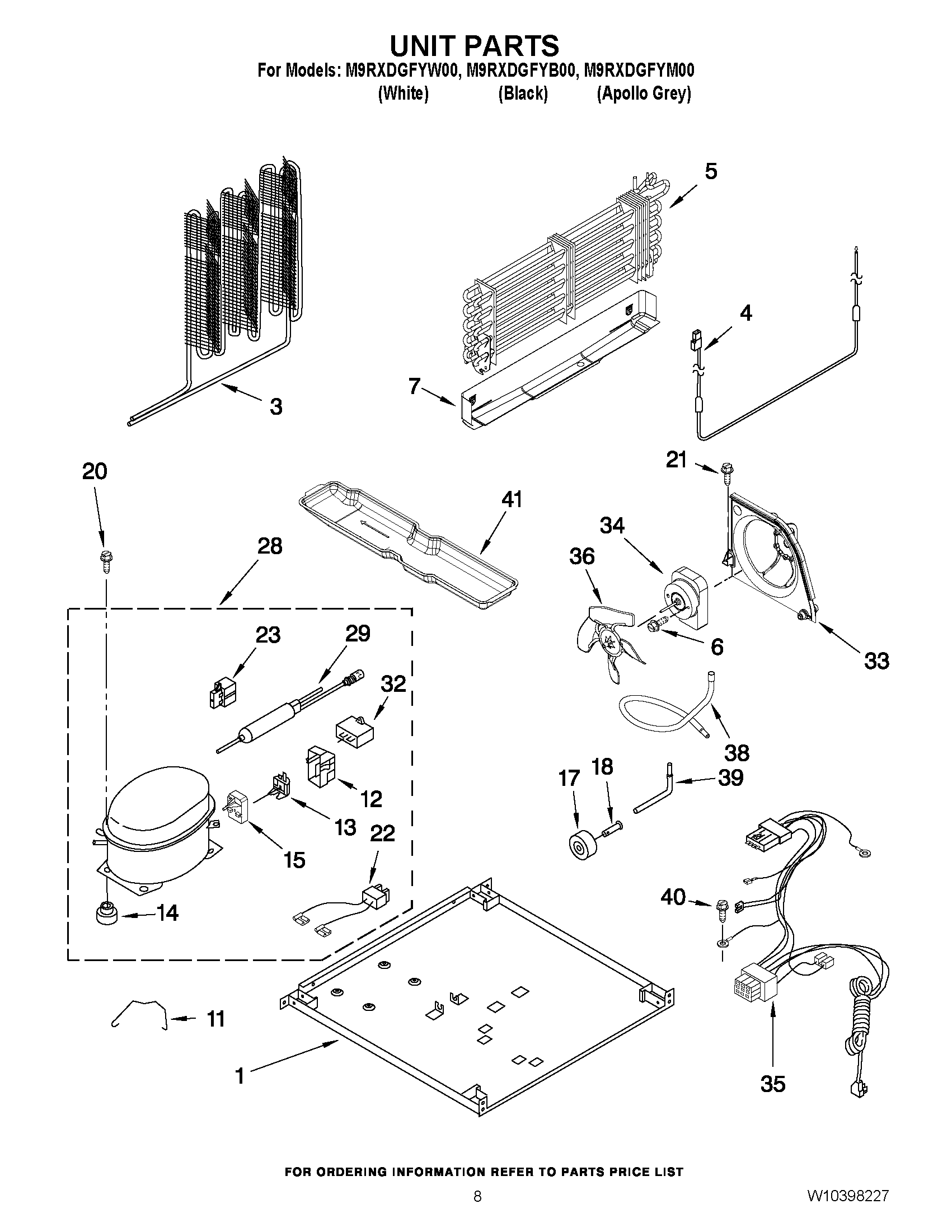

M9RXDGFYM00 05 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10300116
3	CONDENSER
4	MAY W10316428
5	EVAPORATOR ASSY.
6	MAY 8533961
7	MAY W10314200
11	MAY W10236396
12	COVER ((SERVICE ONLY))
13	OVERLOAD ((SERVICE ONLY))
14	GROMMET
14	Grommet (Production)
15	Relay-Combo Device Combination (Start Relay and Overload For Production Compressor Only)
17	Roller
18	MAY 2179026
20	MAY 489373
21	MAY 3400518
22	MAY W10129791
23	Start Relay (Service Only)
28	MAY W10187125
29	Drier
29	DRIER (PRODUCTION)
32	CAPACITATOR (SERVICE)
32	Capacitator (Production)
33	MAY 2315541
34	MOTOR, CONDENSOR
35	WIRE ASSY, UNIT
36	MAY W10139483
38	MAY W10319864
39	MAY 2212848
40	MAY 488500
41	Evaporator Tray
