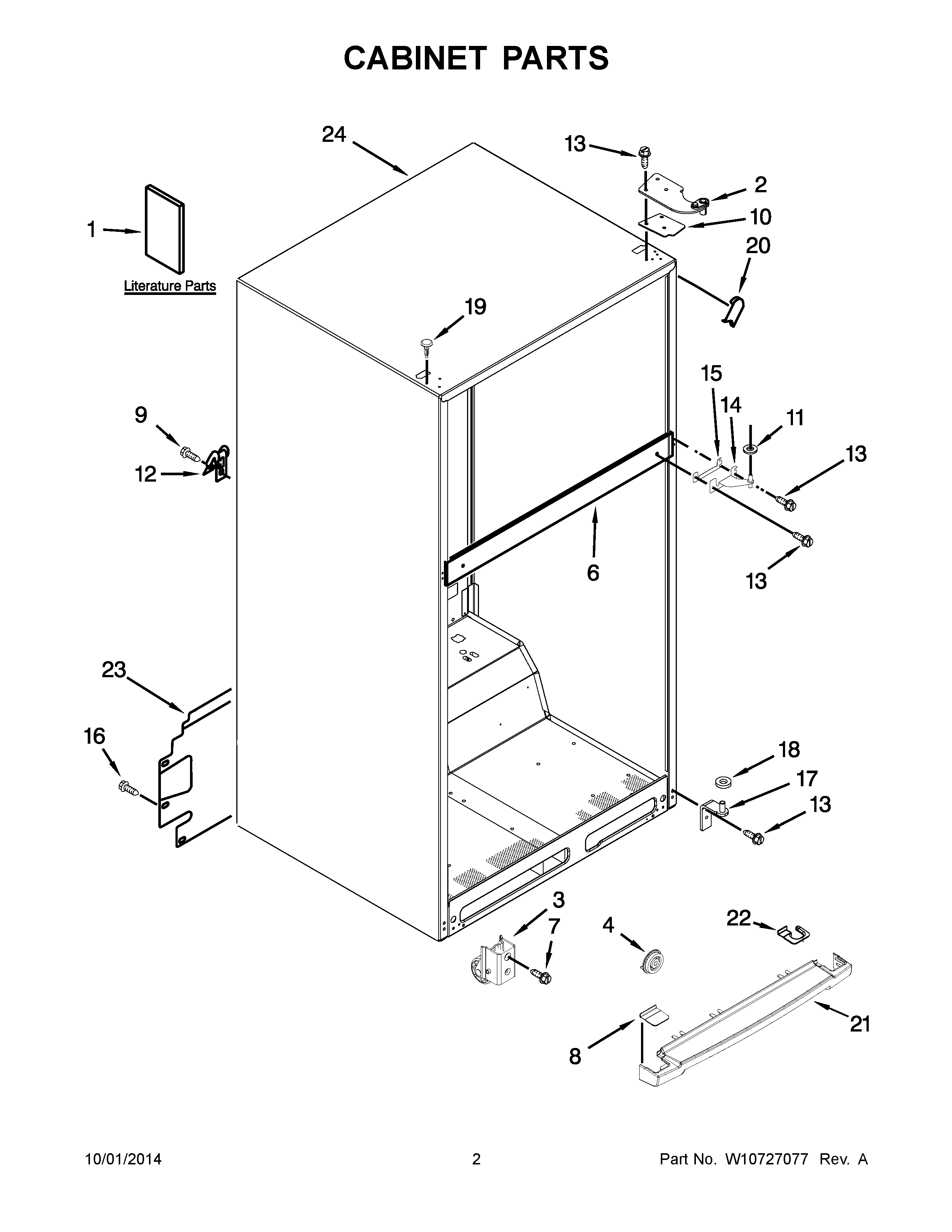

M9RXDGFYM11 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	MAY W10714380
1B	MAY W10551695
2	HINGE (TOP)
3	ROLLER, FRONT
4	DRUM, TOE GRILLE
7	MAY 3400517
8A	COVER, TOE GRILLE (GREY)
8	ENDCAP, GRILLE (WHITE)
9	MAY 489442
10	MAY W10338247
11	WASHER, PLASTIC
12	MAY 549193
13	MAY 489497
14	MAY 2254618
15	MAY 2183852
16	MAY 2262176
17	MAY 2254473
18	Washer (1/16)
19A	HOLE PLUG (GREY)
19	MAY W10520304
20	CORNER FILLER (WHITE)
20A	FILLER, CORNER (GREY)
21	MAY W10326386
21A	MAY W10353938
22	ENDCAP, GRILLE HINGE (WHITE)
22A	ENDCAP, GRILLE HINGE (MIDNIGHT GREY)
23	MAY W10384413
24	LINER (NOT A SERVICEABLE PART)
