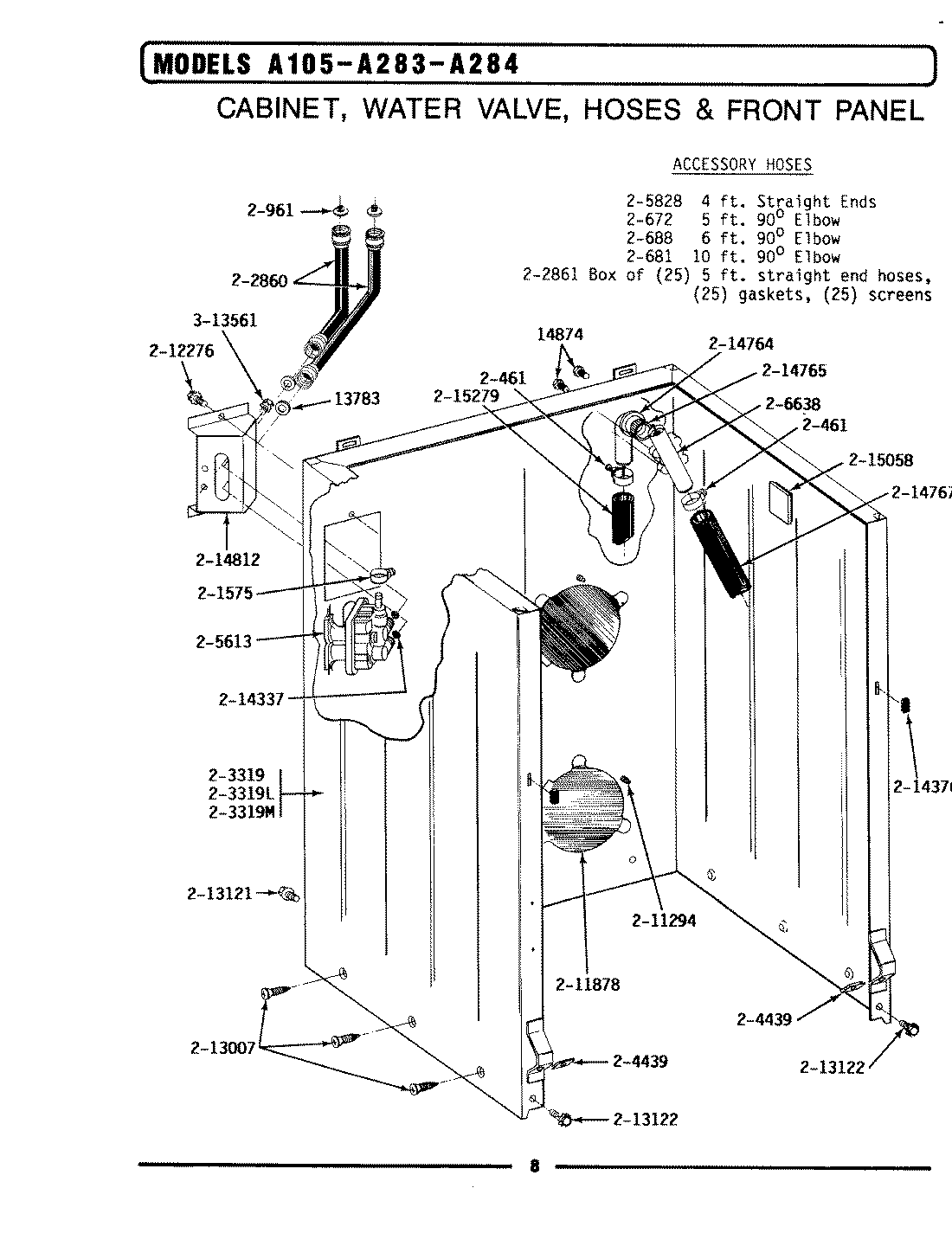

MA105 02 – CABINET, WATER VALVE, HOSES & FRNT PANEL

Products

Position	Product
1	MAY Y013783
2	WPY014874 Whirlpool Screw
3	MAY 200461
4	WP76314 Whirlpool Fill Hose
5	MAY 200681
7	MAY Y200832
8	MAY 200961
9	WP596669 Whirlpool Hose Clamp
10	202860 Whirlpool Inlet Hose 5 FT
11	MAY 202861
12	MAY 203237
15	MAY 203319M
16	SCREW & FSTNER ASSY (FT. PNL)
17	205613 Whirlpool Washer Water Inlet Valve
18	MAY 205828
19	MAY 206103
20	206638 Whirlpool Break Siphon Connector Kit
21	MAY 211149
22	WP90767 Whirlpool Screw
23	MAY 211878
24	MAY 212276
25	MAY 212982
28	MAY 212998M
29	213007 Whirlpool Screw #12
30	WPW10346892 Whirlpool Screw
31	WP27001200 Whirlpool Screw
32	MAY 213846
33	WP96160 Whirlpool Washer Inlet Valve Screen
34	MAY 214376
35	MAY 214764
36	WP214765 Whirlpool Gasket
37	MAY 214767
38	MAY 214812
39	MAY 215058
40	WP22003410 Whirlpool Drain Hose
41	MAY Y313561
