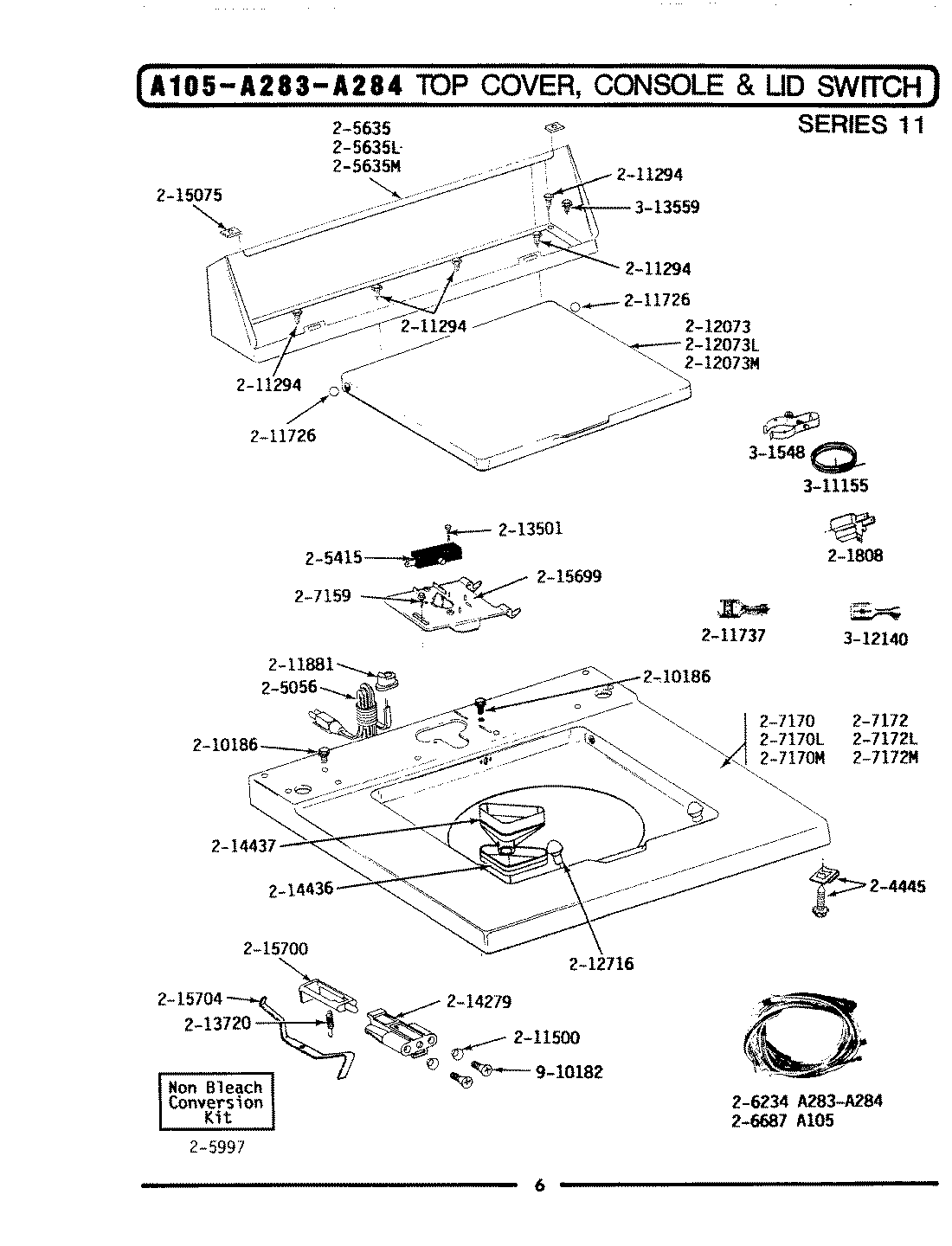

MA105 07 – TOP COVER, CONSOLE & LID SWITCH (SER 11)

Products

PositionProduct
1MAY Y201808
2MAY 204445
3MAY 205056
4W10820036 Whirlpool Door Switch Kit
7MAY 205635M
8MAY 205997
9MAY 206687
10SCREW
13MAY 207172M
14MAY 210186
15WP90767 Whirlpool Screw
16MAY 211500
17WP211726 Whirlpool Ball Assembly
18MAY 211737
19GROMMET
22MAY 212073M
23WP212716 Whirlpool Lid Bumper
24MAY 213501
25WP213720 Whirlpool Spring Assembly
26MAY 214279
27MAY 215075
28MAY Y215699
29MAY 215700
30MAY 215704
31MAY 301548
32WP311155 Whirlpool Wire Assembly
33MAY Y312140
34MAY Y313559
35MAY 910182
